Product Description:

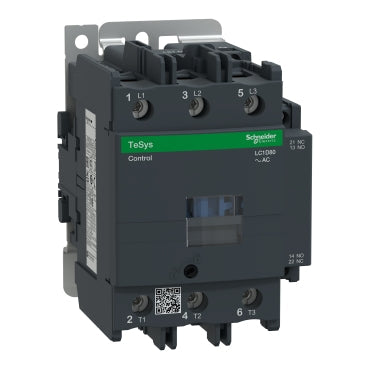

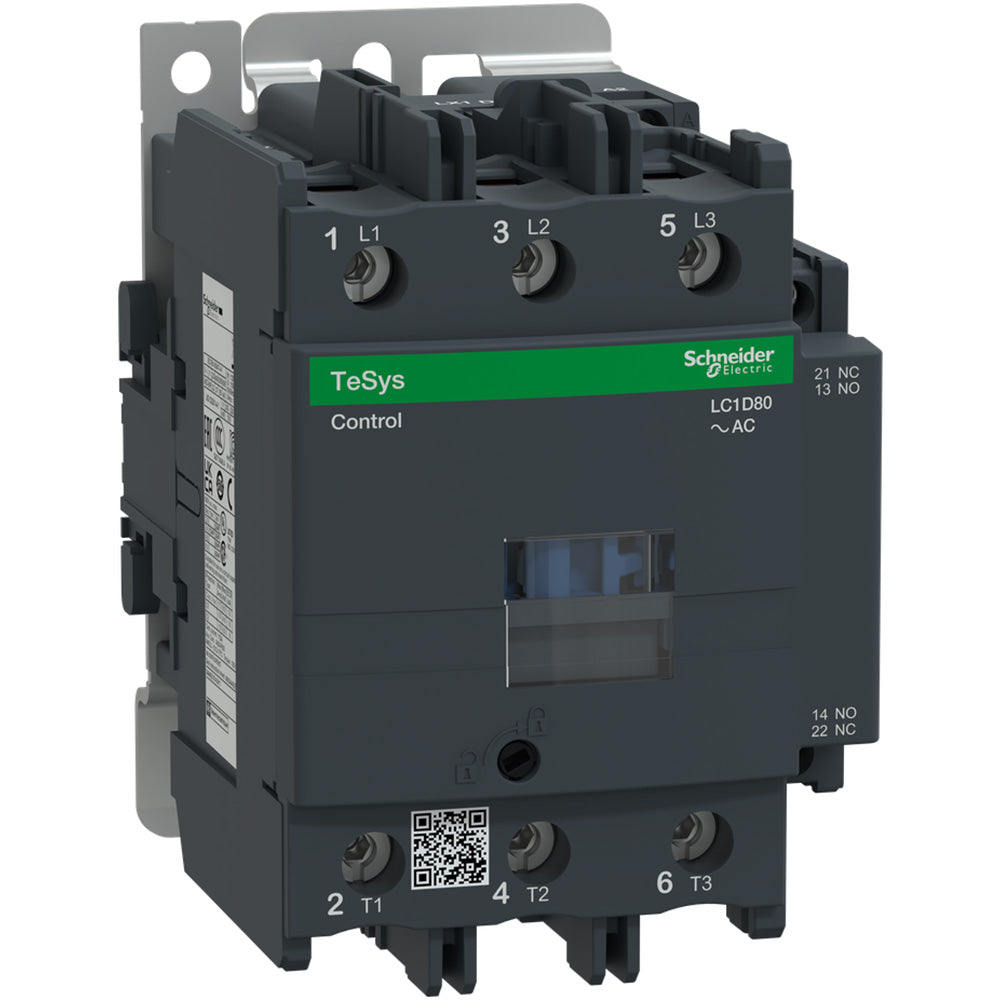

The Square D LC1D80G7 is a 600V 3-phase contactor with a 125A rating and 3 poles. It supports various horsepower ratings, including 7.5 hp at 120V for single-phase motors and up to 60 hp at 600V for three-phase motors. This contactor comes with a 120V coil and is suitable for industrial motor control applications.
Key Features:
✔ Part Number: LC1D80G7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 7.5 hp at 120V AC 50/60 Hz for 1 phase motors-15 hp at 230/240V AC 50/60 Hz for 1 phase motors-30 hp at 200/208V AC 50/60 Hz for 3 phases motors-30 hp at 230/240V AC 50/60 Hz for 3 phases motors-60 hp at 460/480V AC 50/60 Hz for 3 phases motors-60 hp at 575/600V AC 50/60 Hz for 3 phases motors
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 80A Full Load Amps-Resistive 125A
✔ Coil Voltage Minimum: 120
✔ UPC: 785901440864
✔ GTIN: 03389110440867
✔ Country of Origin: Czechia
✔ Dimensions: 3.34 in x 5 in
✔ Weight: 4
✔ Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
