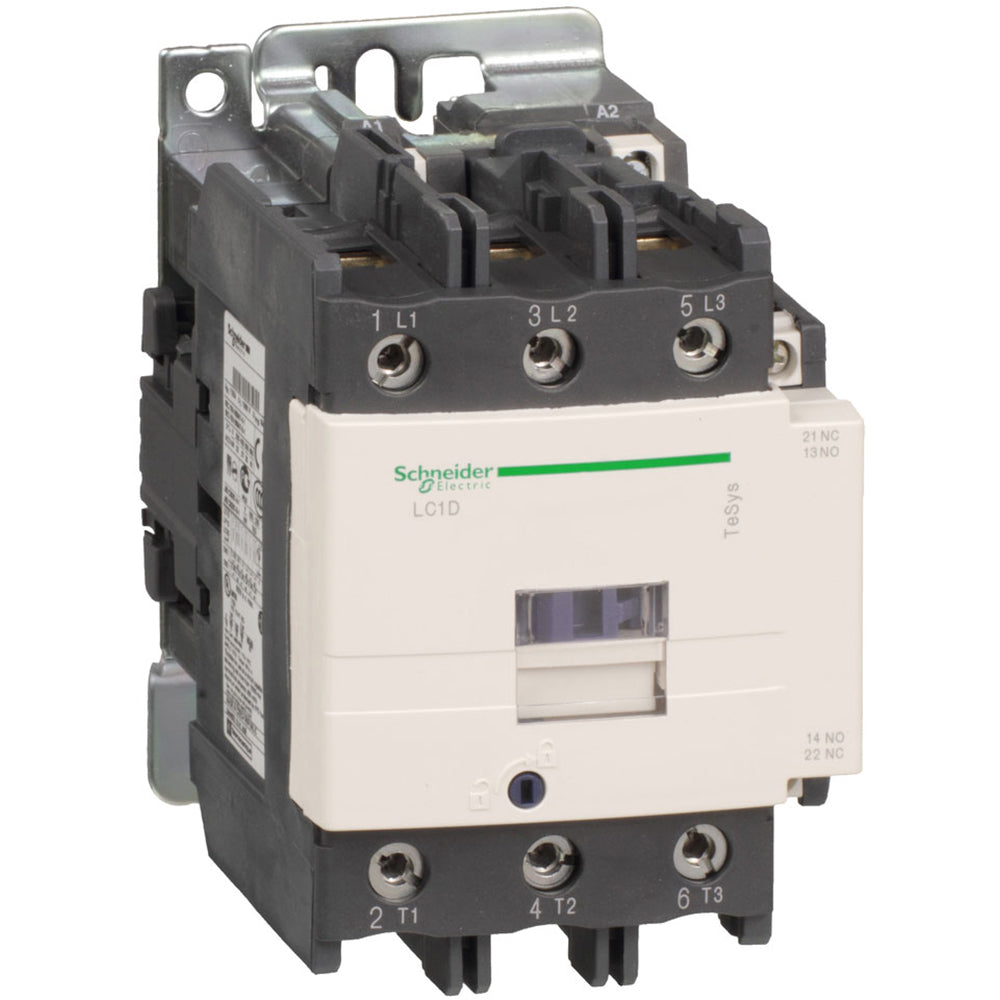

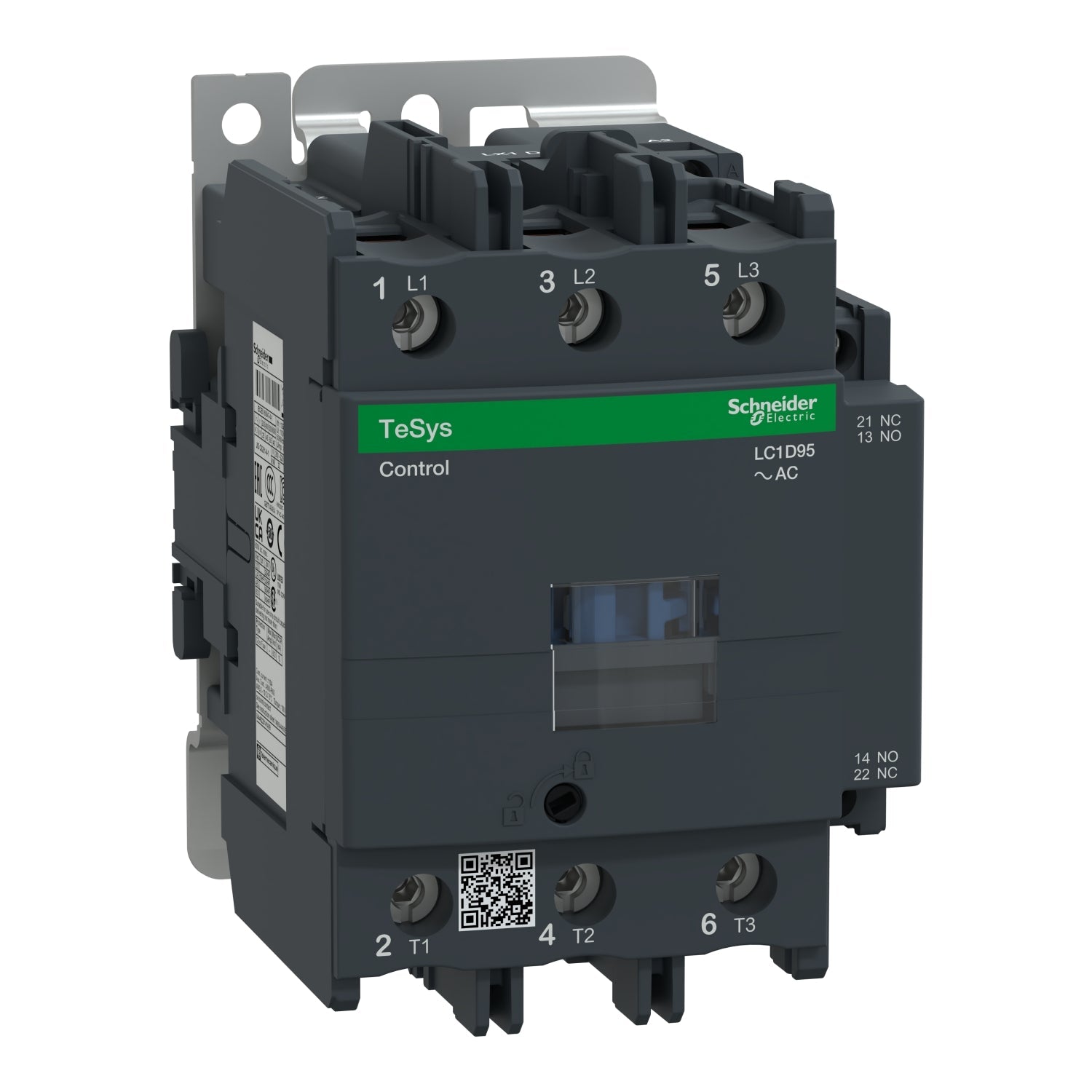

Schneider Electric LC1D95B7 Contactor | 3P 600V 125A 24V Coil TeSys D

Product Description:
The Schneider Electric LC1D95B7 is a 3-pole contactor designed for reliable motor starting and control. It operates at up to 600V and 125A, supporting a wide range of horsepower ratings for both single-phase and three-phase motors. This TeSys D model is equipped with a 24VAC coil for consistent performance.

Key Features:
✔ Part Number: LC1D95B7
✔ Manufacturer: Schneider Electric/Telemecanique
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 125
✔ Poles: 3
✔ Horse Power: 7.5 hp at 120 V AC 60 Hz for 1 phase motors-15 hp at 230/240 V AC 60 Hz for 1 phase motors-30 hp at 200/208 V AC 60 Hz for 3 phases motors-30 hp at 230/240 V AC 60 Hz for 3 phases motors-60 hp at 460/480 V AC 60 Hz for 3 phases motors-60 hp at 575/600 V AC 60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage: 24
✔ Frequency: 50/60 Hz
✔ UPC: 038911045065
✔ GTIN: 03389110450651
✔ Country of Origin: Czechia
✔ Weight: 3.28
✔ Certification: CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, UL 60947-4-1, UL 60947-5-1
