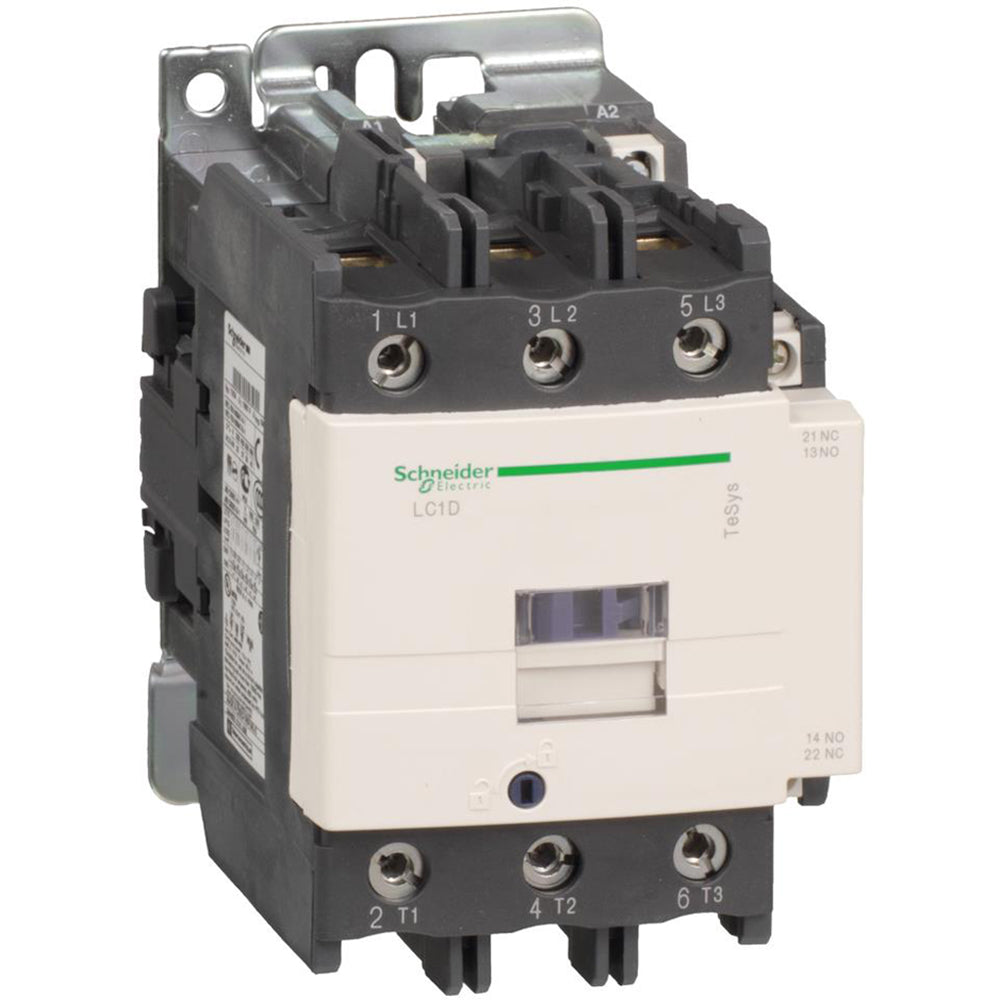

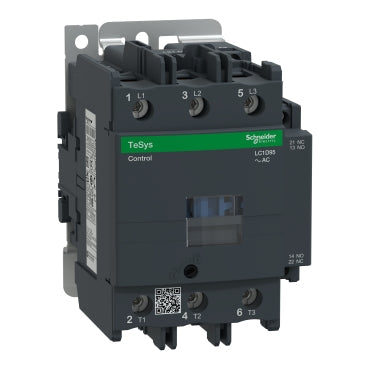

Schneider Electric LC1D95G7 Contactor | 3P 3-Phase 600V 125A 120V Coil TeSys D

Product Description:
This Schneider Electric LC1D95G7 is a 3-phase contactor rated for 600V and 125A, designed for motor starting applications. It is a 3-pole starter that comes complete with a 120V AC coil. It supports a range of horsepower ratings for both single-phase and three-phase motors across various voltages.

Key Features:
✔ Part Number: LC1D95G7
✔ Manufacturer: Schneider Electric
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 7.5 hp at 120 V AC 60 Hz for 1 phase motors-15 hp at 230/240 V AC 60 Hz for 1 phase motors-30 hp at 200/208 V AC 60 Hz for 3 phases motors-30 hp at 230/240 V AC 60 Hz for 3 phases motors-60 hp at 460/480 V AC 60 Hz for 3 phases motors-60 hp at 575/600 V AC 60 Hz for 3 phases motors
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 95A Full Load Amps-Resistive 125A
✔ Coil Voltage Minimum: 120
✔ Frequency: 50/60 Hz
✔ UPC: 038911045126
✔ GTIN: 03389110451269
✔ Country of Origin: Czechia
✔ Dimensions: 3.35 in x 5 in
✔ Weight: 4
✔ Certification: BV, CCC, CSA, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, DNV-GL, EAC, EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, IECEE CB Scheme, LROS, RINA, UL 60947-5-1, UL Listed, UL 60947-4-1
