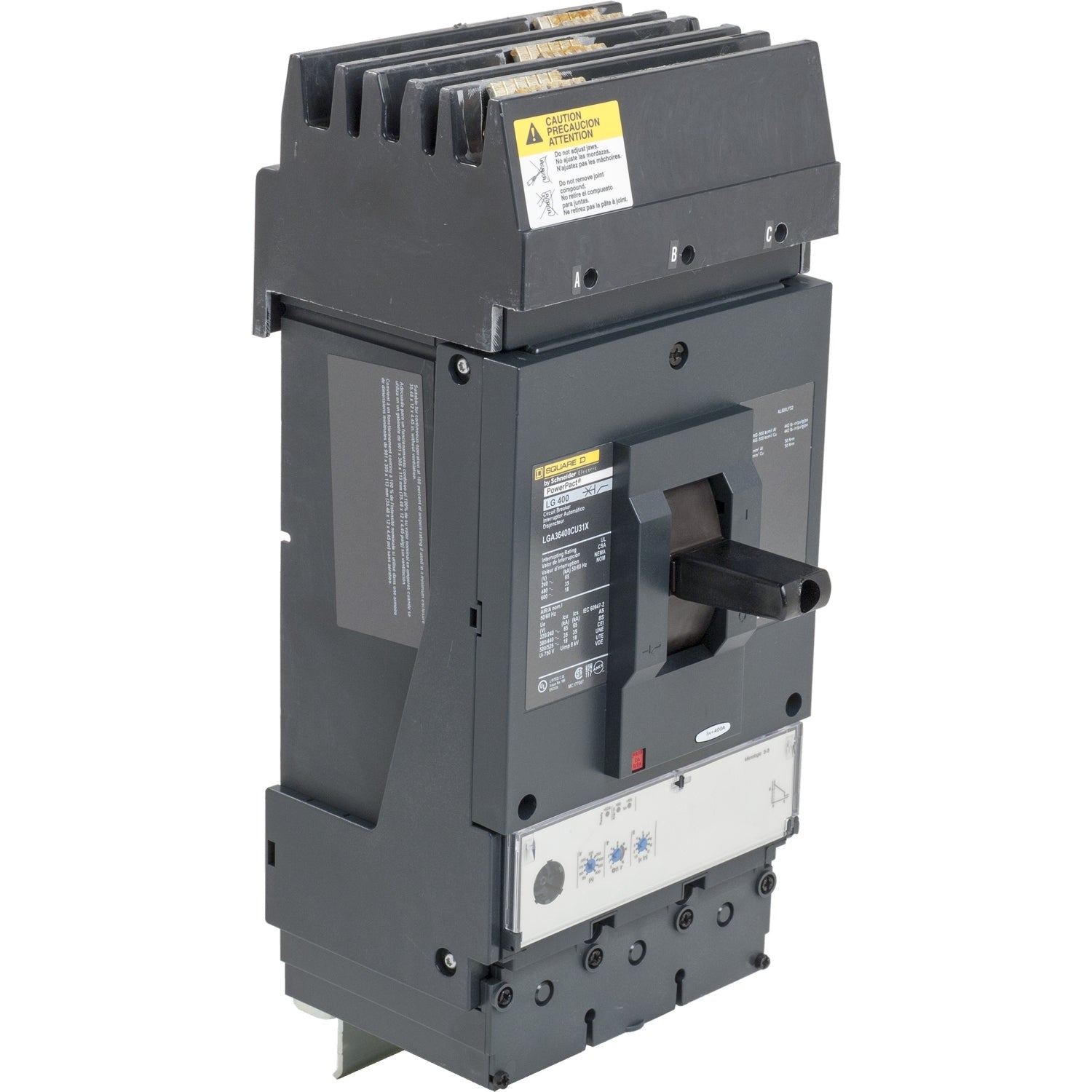

Square D LDA36400CU31X Circuit Breaker | 600V 400A 3P 18kA@480V I-Line Style Plug-In Powerpact
Square D LDA36400CU31X Circuit Breaker | 600V 400A 3P 18kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$4,148.17 USD
Regular price
$5,943.00 USD
Sale price
$4,148.17 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D LDA36400CU31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection with MicroLogic 3.3 trip type.
Key Features:
✔ Part Number: LDA36400CU31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Breaker Type: 100% rated
✔ Protection: Solid State
✔ Trip Type: MicroLogic 3.3
✔ UPC: 78590110163
✔ GTIN: 00785901101635
✔ Country of Origin: United States
✔ Dimensions: 13.39 in (H) x 5.51 in (W) x 4.33 in (D)
✔ Weight: 7.71 lb
✔ Certification: UL CSA NEMA NOM-003-SCFI-2000 IEC 60947-2
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminium/copper
