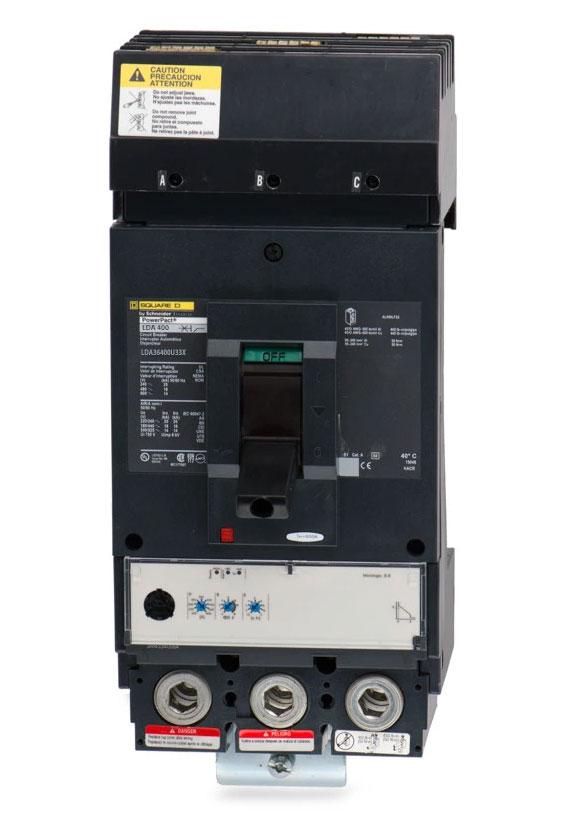

Square D LDA36400U33X Circuit Breaker | 600V 400A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:

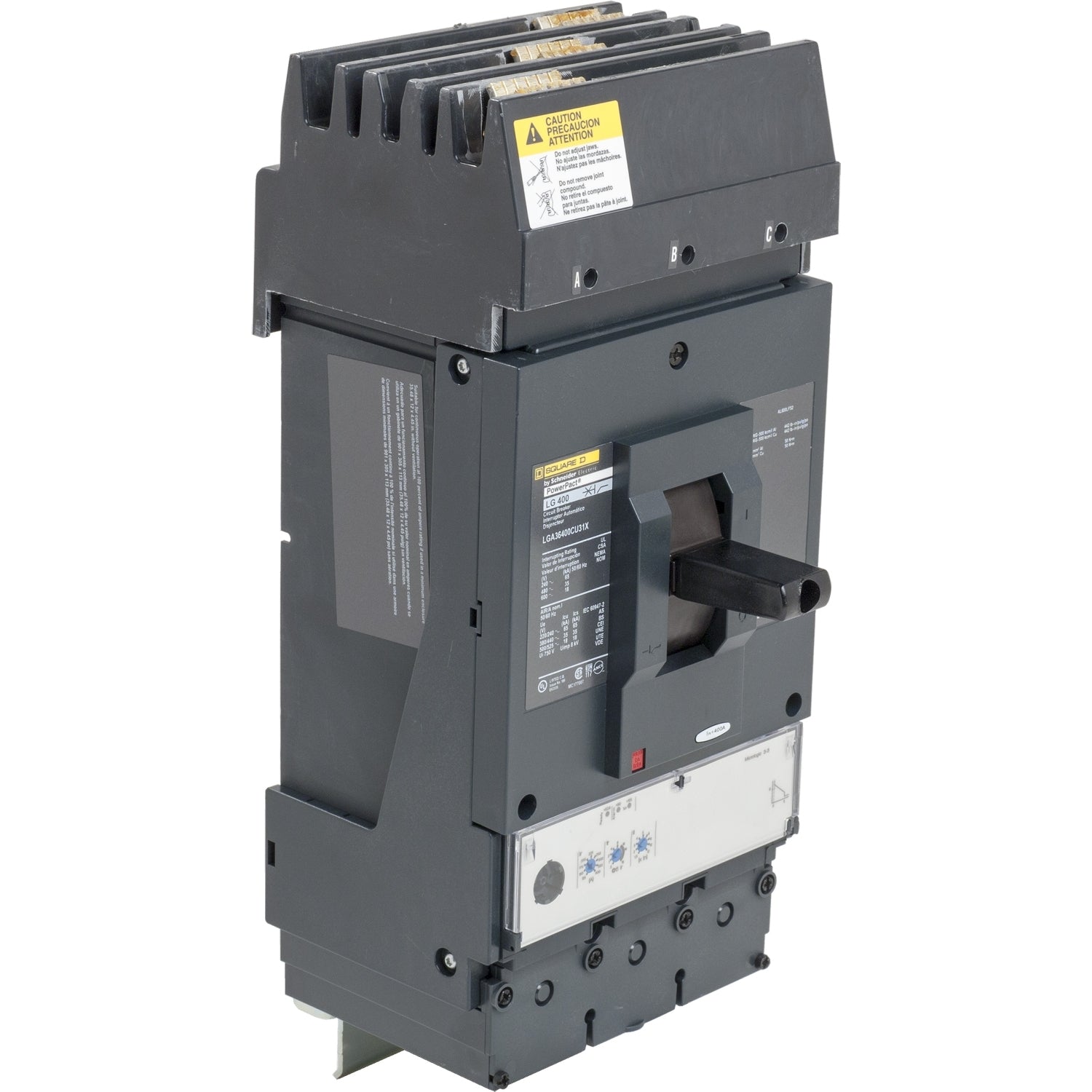

The Square D LDA36400U33X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 400 amp rating with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: LDA36400U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901808985
✔ GTIN: 00785901808985
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 8.3
✔ Certification: UL
✔ Wire Size: AWG 3/0...500 kcmil aluminum/copper
