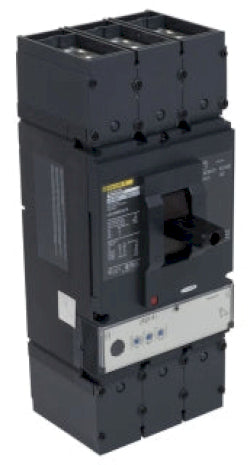

Square D LDL36400CU31X Molded Case Circuit Breaker | 600V 400A 3P 18kA@480V Feed-Thru Powerpact

Product Description:
The Square D LDL36400CU31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 400 amps and 600 volts, with an 18kA interrupting rating at 480V. This unit features solid state protection and a feed-thru lug connection for reliable electrical distribution.

Key Features:
✔ Part Number: LDL36400CU31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 078590162666
✔ GTIN: 00785901626664
✔ Country of Origin: United States
✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 7.75 lb
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
