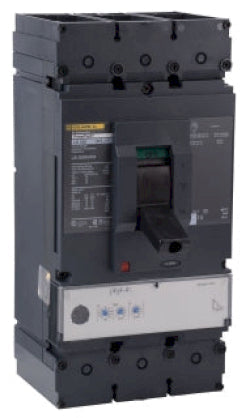

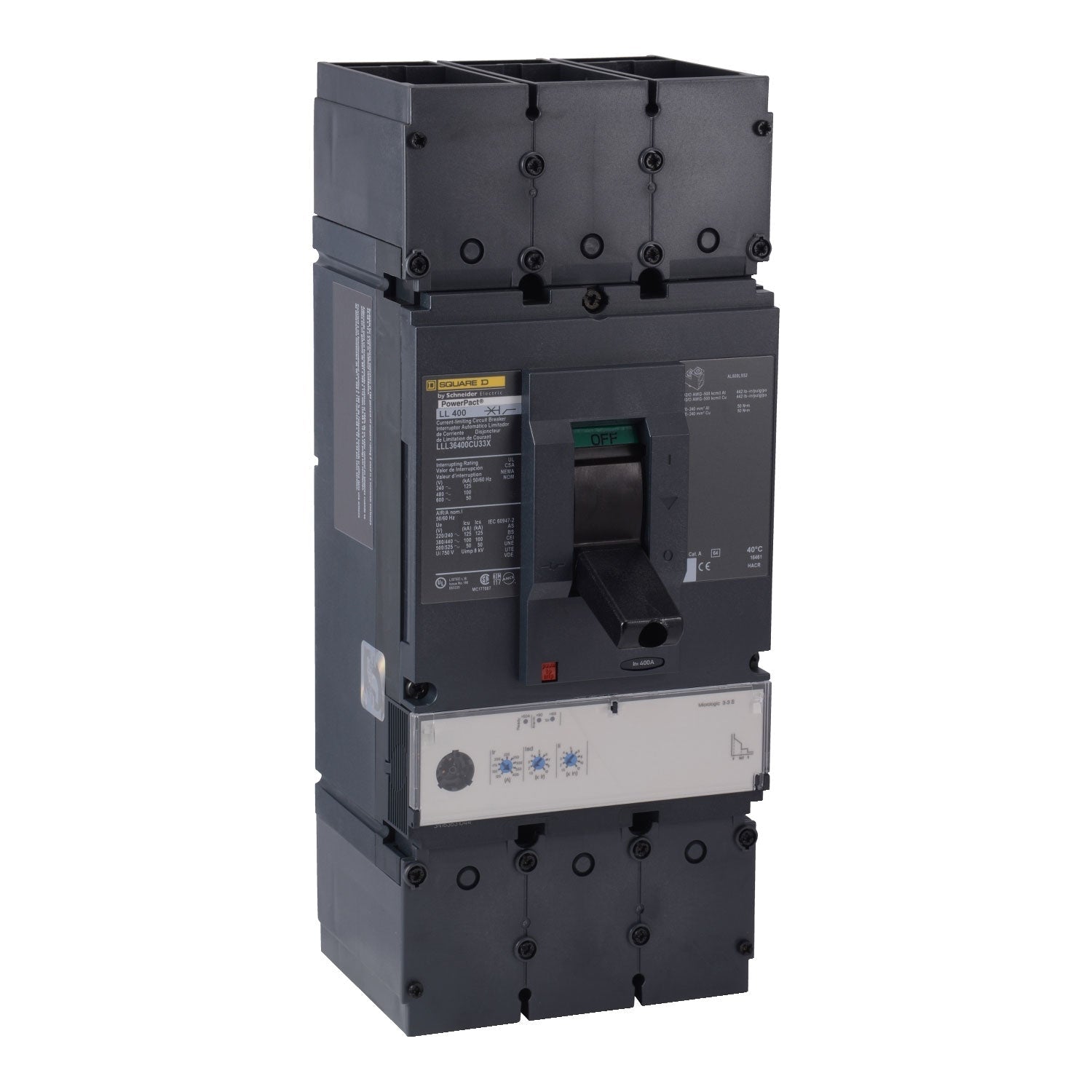

Square D LDL36600U33X Circuit Breaker | 600V 600A 3P 18kA@480V Feed-Thru Powerpact

Product Description:
The Square D LDL36600U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Solid State protection for reliable performance.

Key Features:
✔ Part Number: LDL36600U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDL
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 078590176586
✔ GTIN: 00785901765868
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.75 lb
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
