Square D LDP36400U31X Circuit Breaker | 600V 400A 3P 18kA@480V Bolt-On Powerpact
Square D LDP36400U31X Circuit Breaker | 600V 400A 3P 18kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$3,306.19 USD
Regular price
$4,827.00 USD
Sale price
$3,306.19 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:

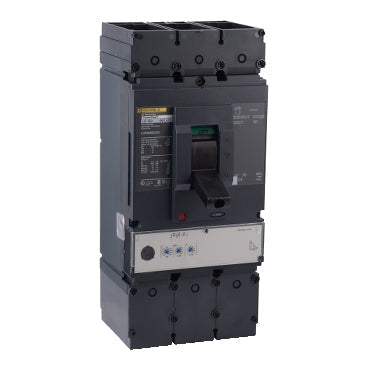

The Square D LDP36400U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 400A amperage rating with an 18kA@480V AIC rating. This bolt-on breaker includes solid-state protection and is designed for industrial applications.
Key Features:
✔ Part Number: LDP36400U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LDP
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 078590146445
✔ GTIN: 00785901464457
✔ Dimensions: Depth 4.33 in (110 mm) Width 5.51 in (140 mm) Height 13.39 in (340 mm)
✔ Weight: 16.39
✔ Certification: CSA, CCC, IEC, CE, UL, NMX, NEMA
