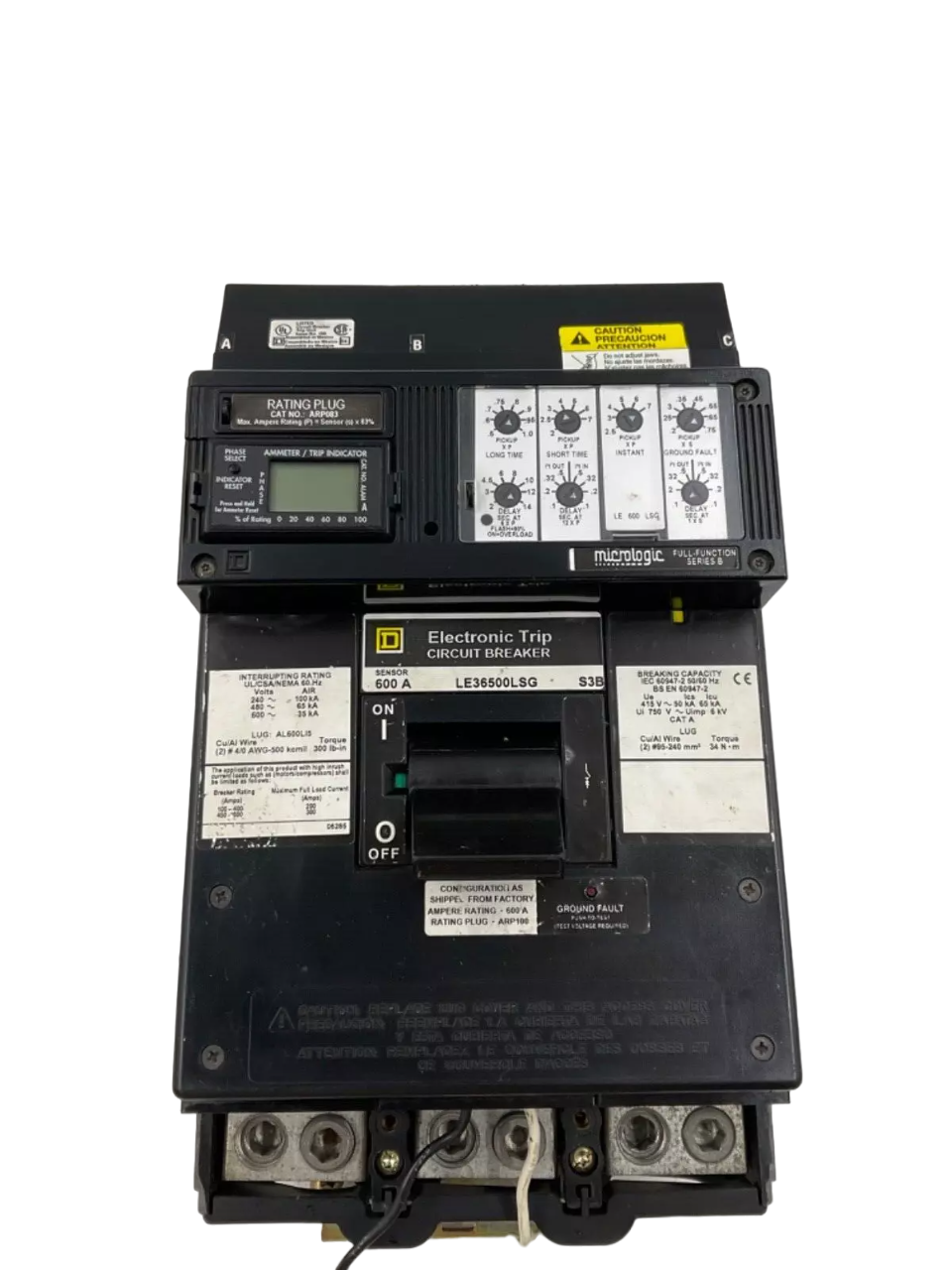

Square D LE36600LS Circuit Breaker | 600V 600A 3P 65kA@480V I-Line Style Plug-In Micrologic
Square D LE36600LS Circuit Breaker | 600V 600A 3P 65kA@480V I-Line Style Plug-In Micrologic
Price:
Sale
Sold out
Regular price
$4,891.51 USD
Regular price
$0.00 USD
Sale price
$4,891.51 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Square D LE36600LS is a Molded Case Circuit Breaker from the Micrologic family. It features 3 poles, 600V voltage, and a 600 amp rating with a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: LE36600LS
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Micrologic
✔ Type: LE
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LS - Long-Time and Short-Time
✔ Protection: Solid State
✔ Dimensions: Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 40
