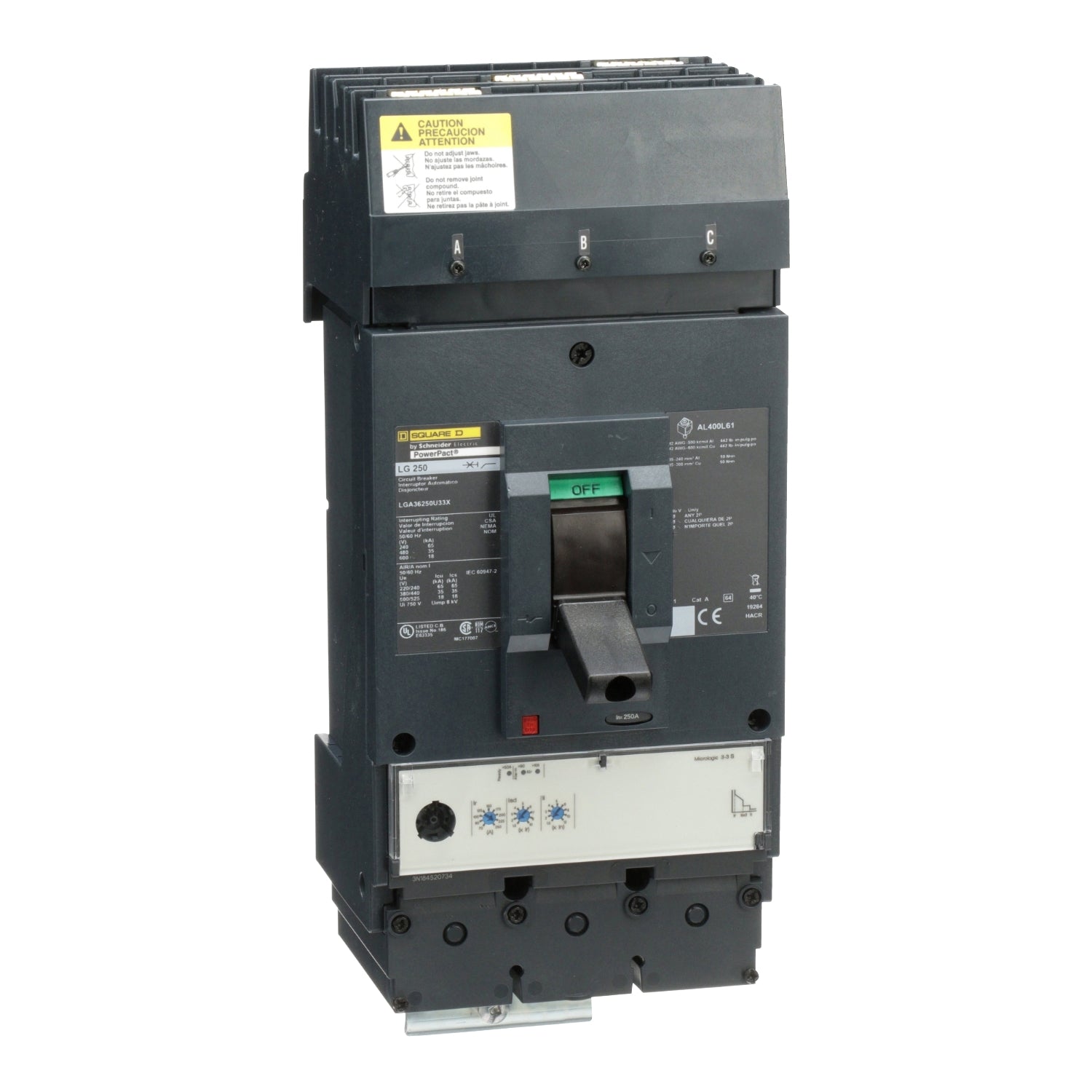

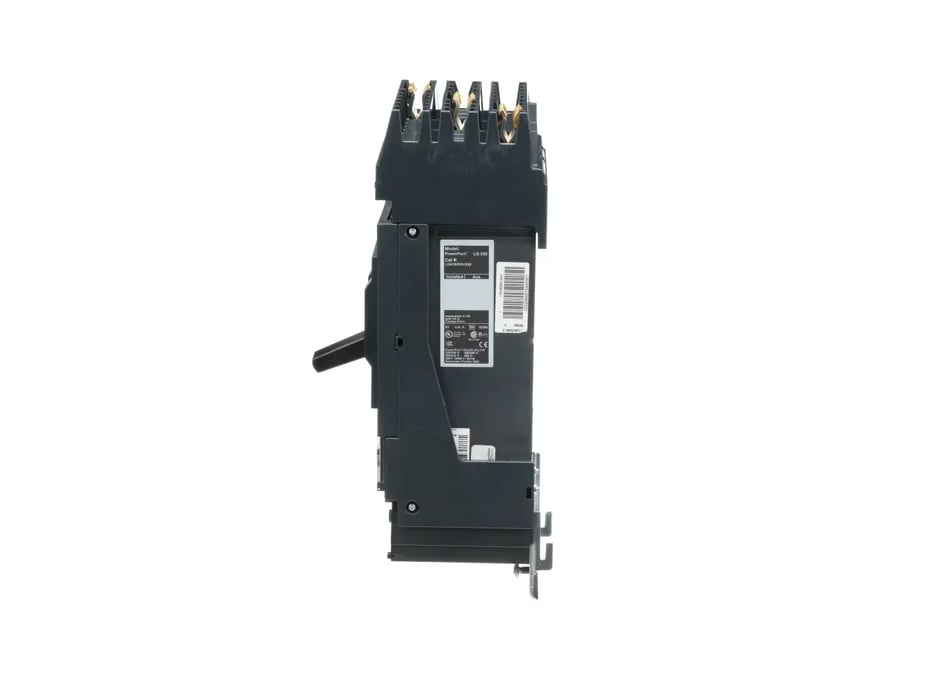

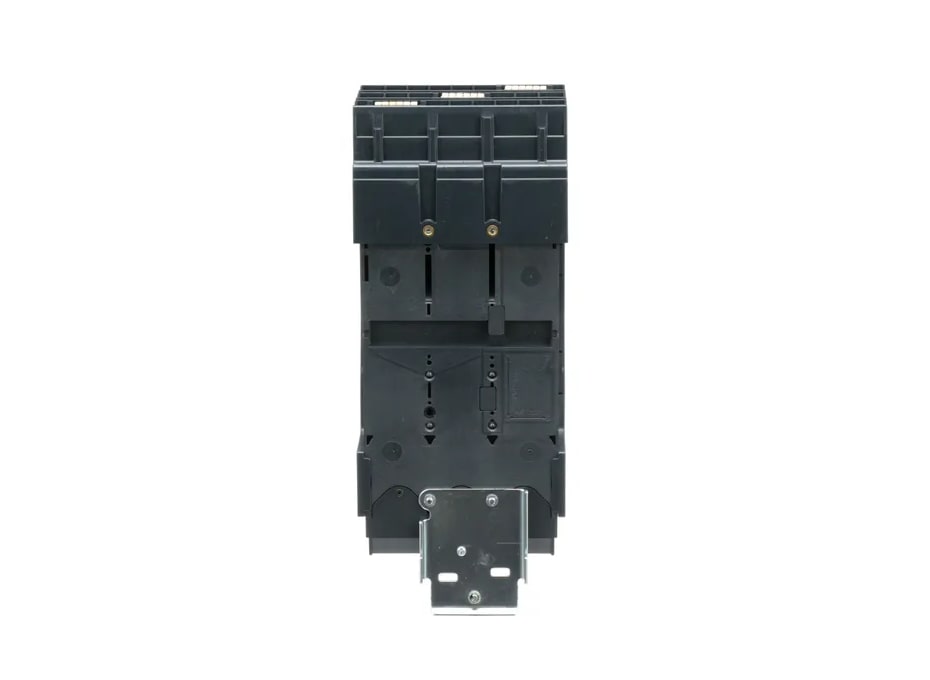

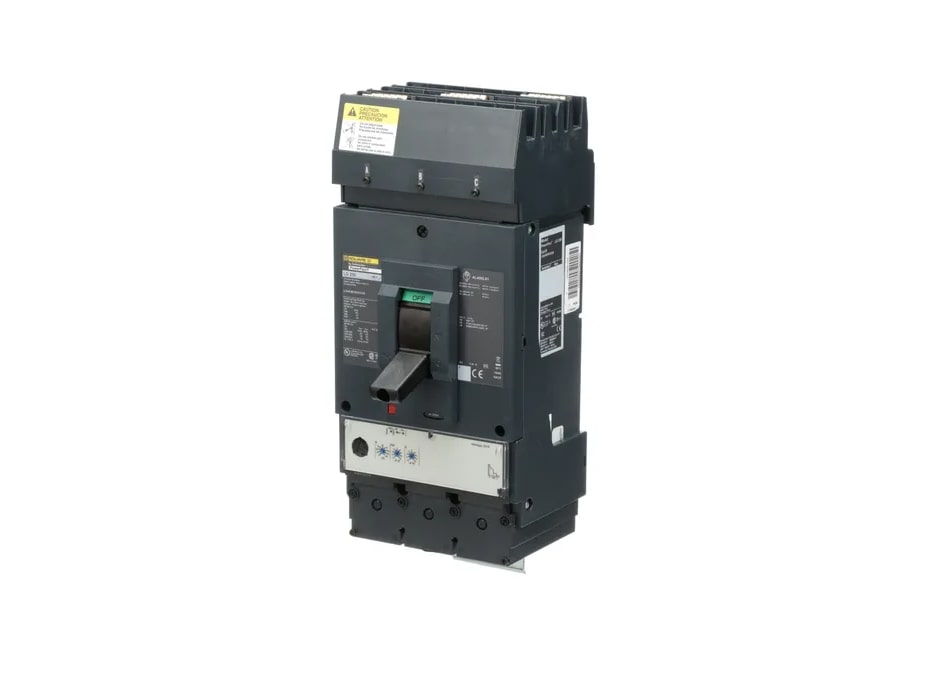

Square D LGA36250U33X Circuit Breaker | 600V 250A 3P 35kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D LGA36250U33X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 Volt, 250 amp rated breaker with an AIC rating of 35kA@480V. This unit features an I-Line Style Plug-In connection and solid state protection for reliable performance.

Key Features:
✔ Part Number: LGA36250U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LGA
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 2 AWG (Cu/Al) Max. Wire Size 600 kcmil (Cu), 500 kcmil (Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901702627
✔ GTIN: 00785901702627
✔ Country of Origin: United States
✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 7.71
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: AWG 2...600 kcmil copper, AWG 2...500 kcmil aluminum
