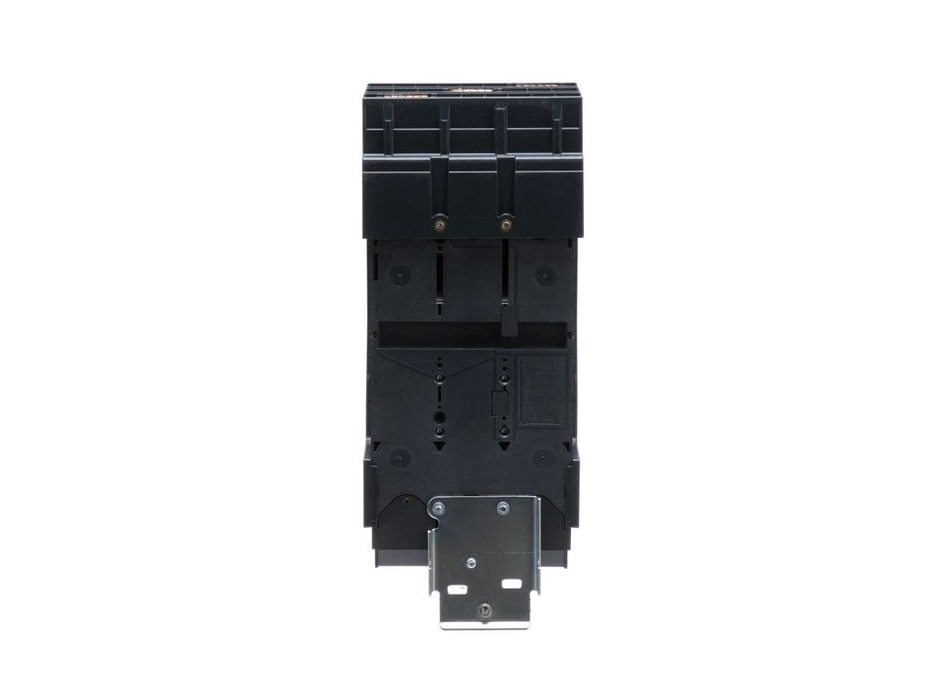

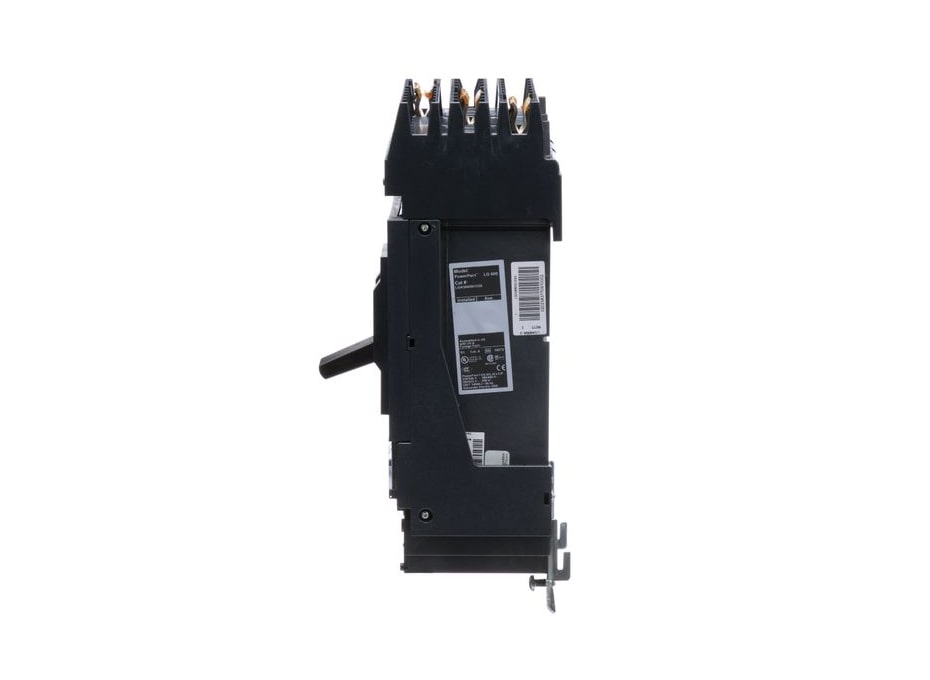

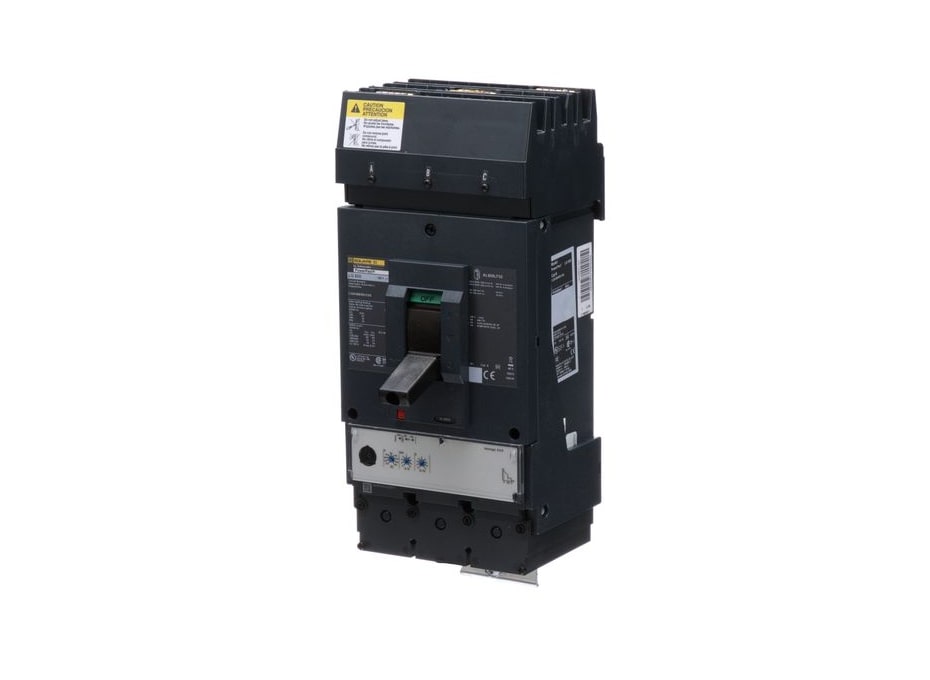

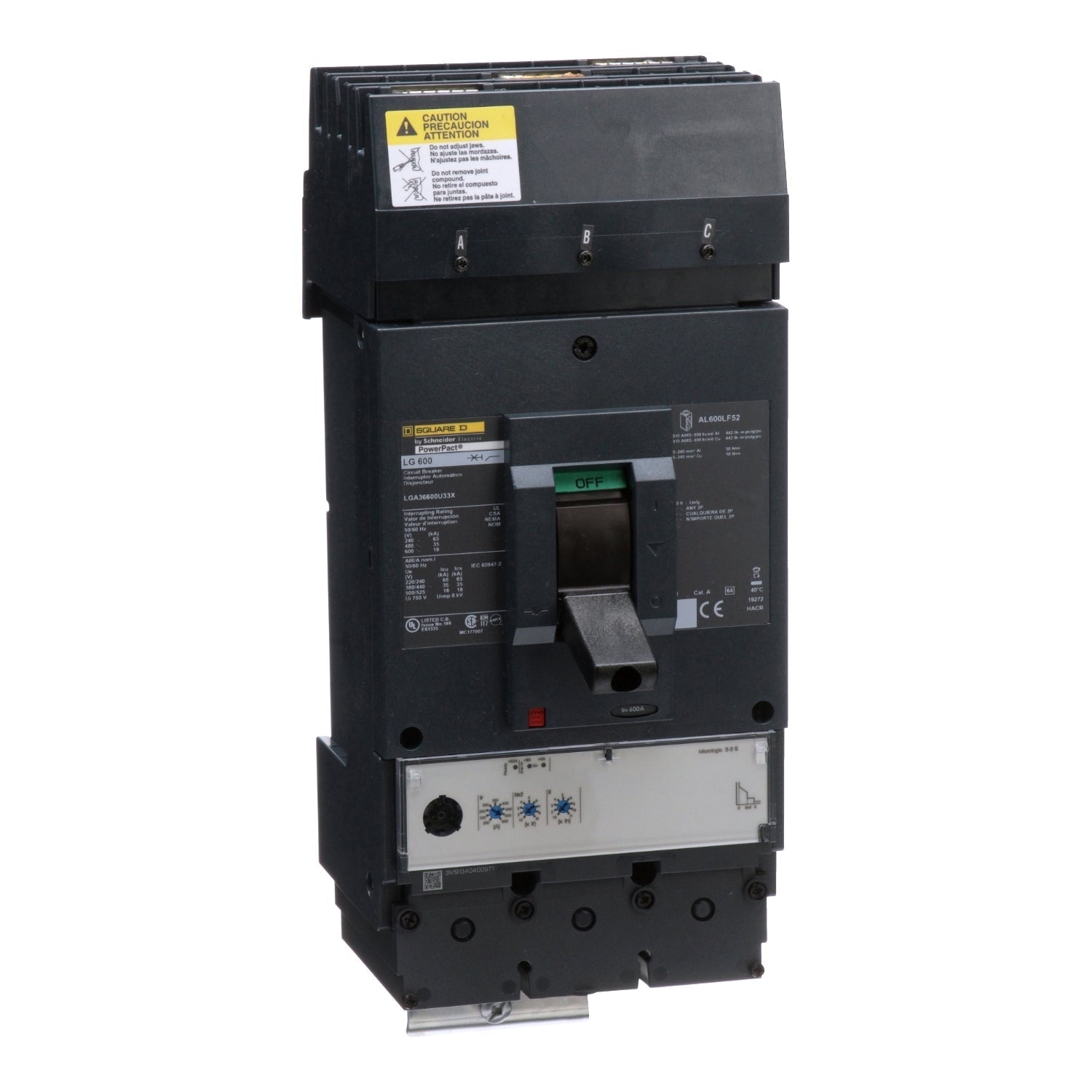

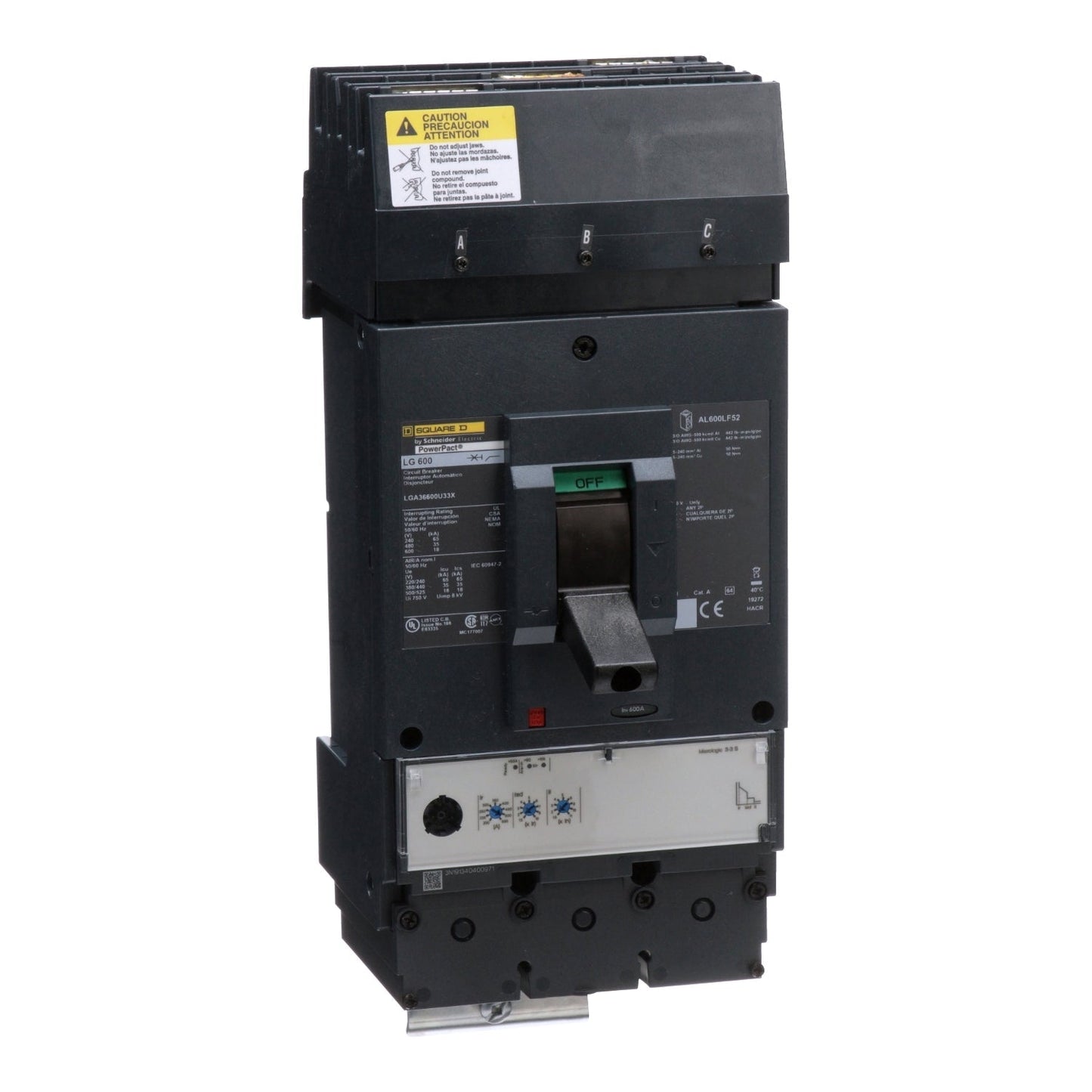

Square D LGA36600U31X Circuit Breaker | 600V 600A 3P 35kA@480V I-Line Style Plug-In Powerpact
Square D LGA36600U31X Circuit Breaker | 600V 600A 3P 35kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$3,804.97 USD
Regular price
$7,779.00 USD
Sale price
$3,804.97 USD
Unit price
per
Shipping calculated at checkout.
Stock:
50 in stock
Couldn't load pickup availability
Product Description:
The Square D LGA36600U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: LGA36600U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LGA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901989813
✔ GTIN: 00785901989813
✔ Country of Origin: United States
✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 8.62 lb
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
