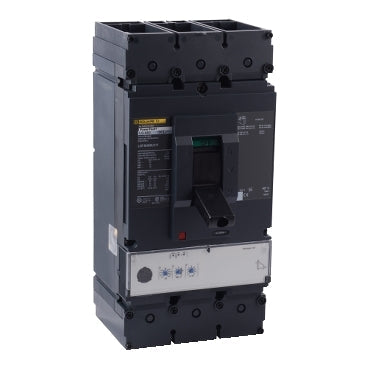

Square D LGF36400CU31X Circuit Breaker | 600V 400A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Square D LGF36400CU31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 400A amperage rating with a 35kA@480V AIC rating. This circuit breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: LGF36400CU31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LGF
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 078590195470
✔ GTIN: 00785901954705
✔ Dimensions: Height 13.39 in (340 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 6.8
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
