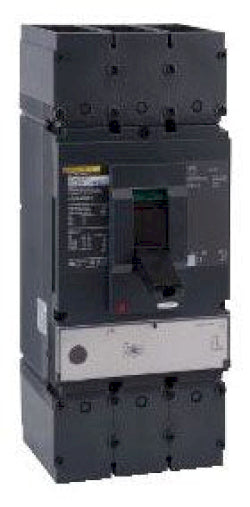

Square D LGL36400M37X Circuit Breaker | 600V 400A 3P 35kA@480V Feed-Thru Powerpact

Product Description:
The Square D LGL36400M37X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 400 amps and 600 volts, with an AIC rating of 35kA at 480V. This model features a Feed-Thru connection and Magnetic Only protection for reliable performance.

Key Features:
✔ Part Number: LGL36400M37X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LGL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Frame Size: L Frame
✔ Protection: Magnetic Only
✔ UPC: 785901435785
✔ GTIN: 00785901435785
✔ Country of Origin: United States
✔ Dimensions: Height 13.39 in (340 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 6.8
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
