Square D LGL36600U31X Circuit Breaker | 600V 600A 3P 35kA@480V Feed-Thru Powerpact

Product Description:

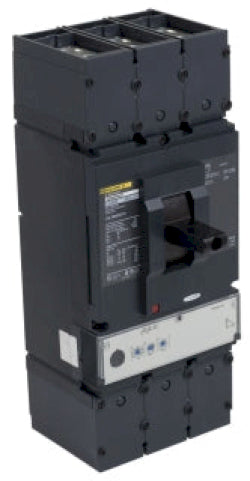

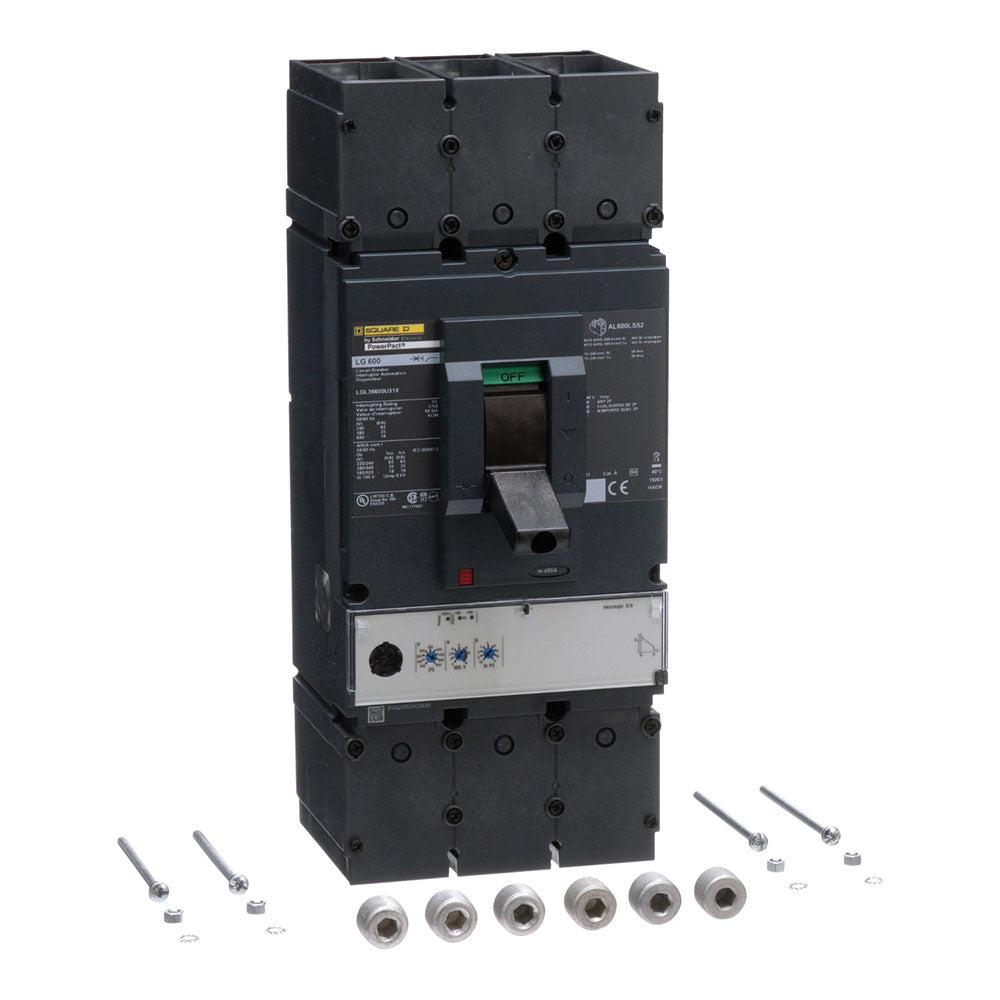

The Square D LGL36600U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 35kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: LGL36600U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LGL
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: L
✔ Wire Size: Min. 2/0 AWG (Cu/Al), Max. 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901594437
✔ GTIN: 00785901594437
✔ Country of Origin: United States
✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 7.73
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
