Square D LGM36400U31X Circuit Breaker | 600V 400A 3P Powerpa

Product Description:

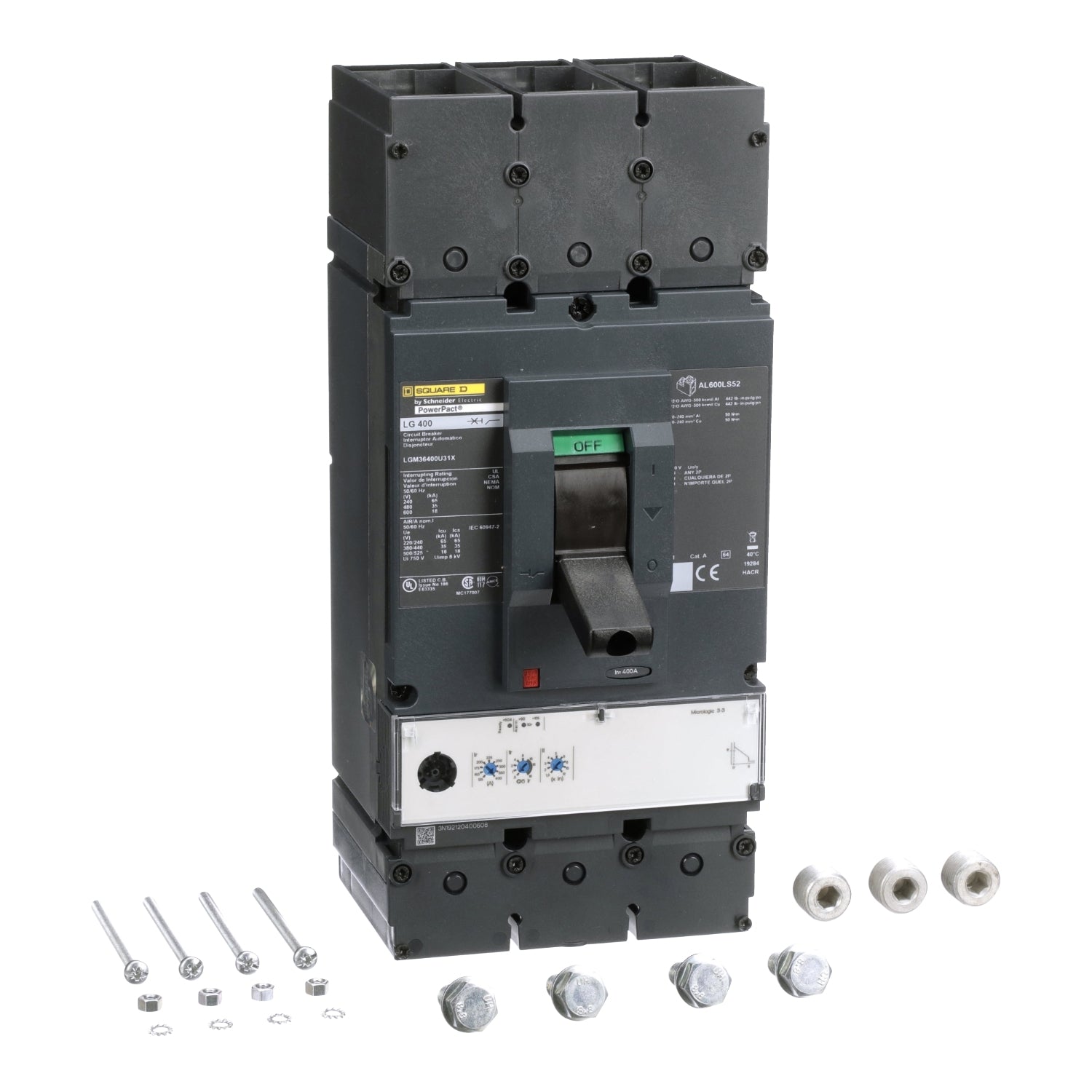

The Square D PowerPact LGM molded case circuit breaker is designed for three-phase electrical distribution applications. It provides 400A current protection at a voltage rating of 600V, with solid-state LI protection for long-time and instantaneous functions. The bolt-on breaker features a three-pole configuration and lug and terminal nut connections.

Key Features:
Manufacturer: Schneider Electric
Brand: Square D
Item Subcategory: Molded Case
Family: PowerPact
Type: LGM
Voltage Rating: 600V
Current Rating: 400A
Phase: 3
Poles: 3
AIC rating: 35kA@480V
Connection: Bolt-On
Functions: LI - Long-Time and Instantaneous
Terminal Connection: Lug, Terminal Nut
Frame Size: L
Temp Rating: 28°F to 158°F (-2°C to 70°C)
MCM Size: Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
Protection: Solid State
