Product Description:

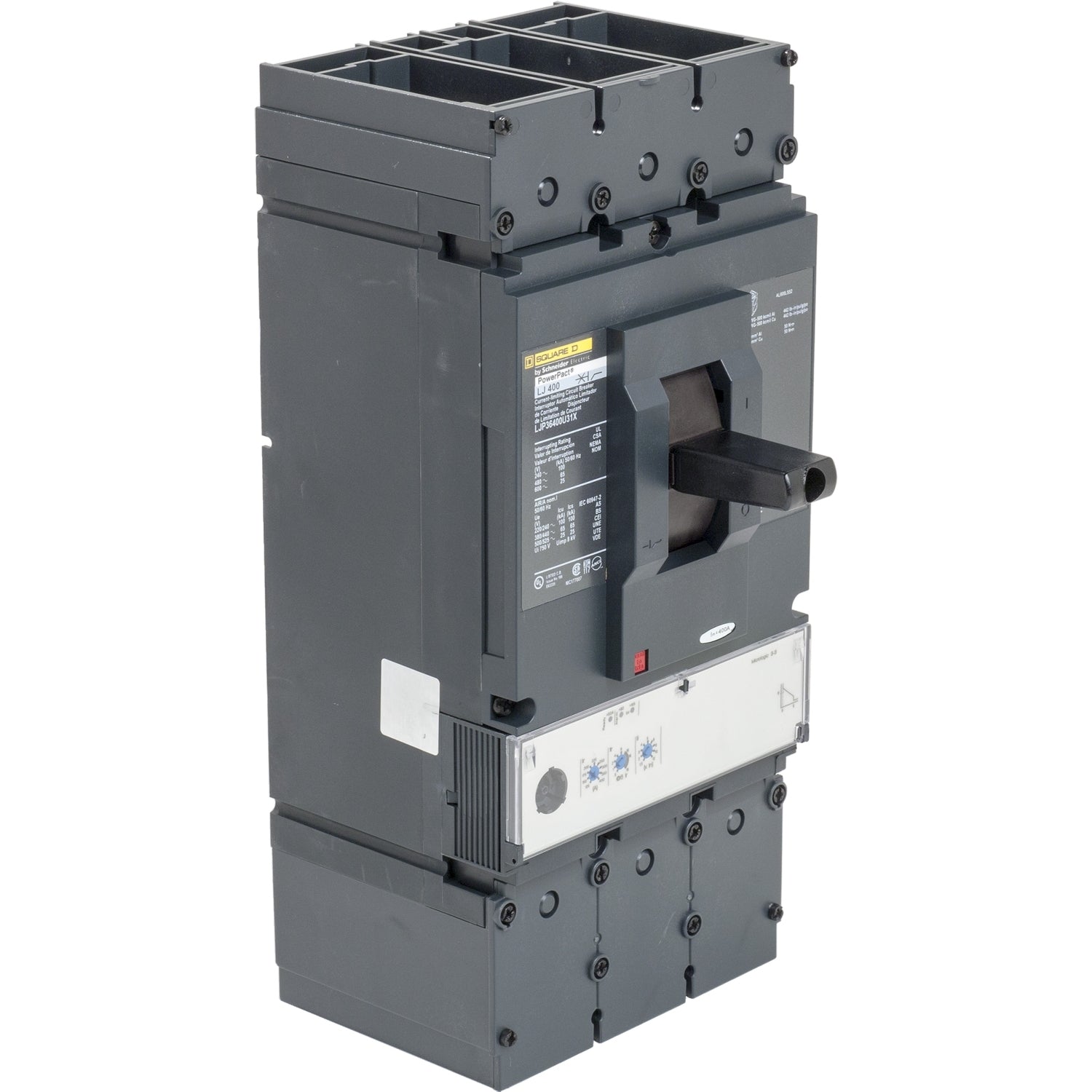

The Square D LGP36400CU31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, a 600V rating, and 400 amp capacity with a 35kA@480V AIC rating. This bolt-on breaker includes solid-state protection and is designed for industrial applications.
Key Features:
✔ Part Number: LGP36400CU31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LGP
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901723530
✔ GTIN: 00785901723530
✔ Country of Origin: United States
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.8
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
