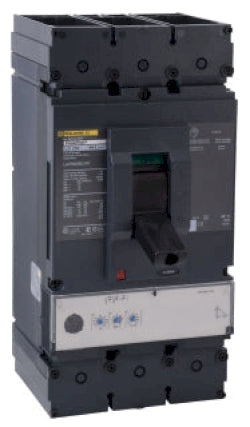

Square D LGP36400U31X Circuit Breaker | 600V 400A 3P 35kA@480V Bolt-On Powerpact
Square D LGP36400U31X Circuit Breaker | 600V 400A 3P 35kA@480V Bolt-On Powerpact
Price:
Sale
Sold out
Regular price
$2,673.06 USD
Regular price
$9,398.00 USD
Sale price
$2,673.06 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D LGP36400U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 400 amp rating with a 35kA@480V AIC rating. This circuit breaker uses a Bolt-On connection and includes Solid State protection for reliable performance.
Key Features:
✔ Part Number: LGP36400U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LGP
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901639824
✔ GTIN: 00785901639824
✔ Country of Origin: Mexico
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.8
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
The Square D LGP36400U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 400 amp rating with a 35kA@480V AIC rating. This circuit breaker uses a Bolt-On connection and includes Solid State protection for reliable performance.
