Square D

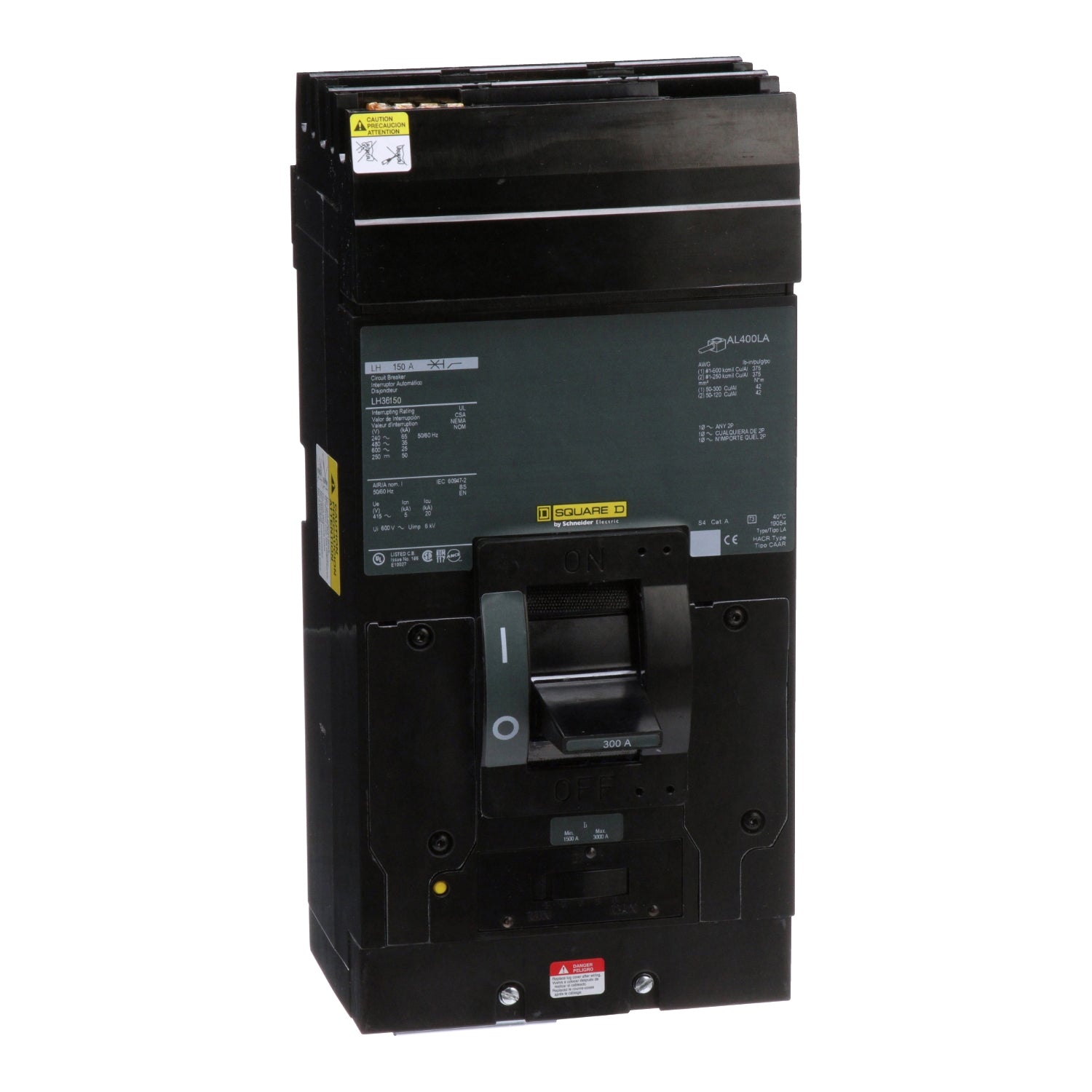

Square D LH36150 Circuit Breaker | 600V 150A 3P 35kA@480V I-Line
Square D LH36150 Circuit Breaker | 600V 150A 3P 35kA@480V I-Line
Price:
Sale
Sold out
Regular price
$2,710.44 USD
Regular price
$19,700.00 USD
Sale price
$2,710.44 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D LH36150 is a Molded Case Circuit Breaker from the I-Line family. It features a 3-pole design with a 600V, 150A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: LH36150
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: LH
✔ Voltage: 600
✔ Amperage: 150
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901697732
✔ GTIN: 00785901697732
✔ Country of Origin: Mexico
✔ Dimensions: Height 12.5 in (317.50 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 8.15
✔ Certification: UL, CSA
✔ Wire Size: AWG 1 to 600KCmil Aluminum/Copper, AWG 1 to 250KCmil Aluminum/Copper
