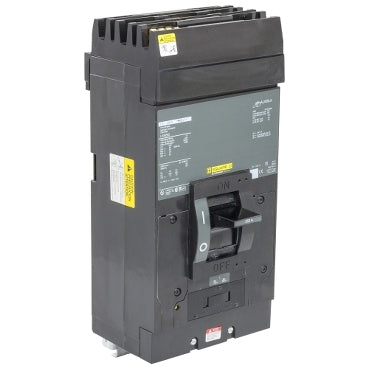

Square D LH36175 Circuit Breaker | 600V 175A 3P 35kA@480V I-Line

Product Description:
The Square D LH36175 is a Molded Case Circuit Breaker from the I-Line family. It features 3 poles, 600V voltage, and a 175A amperage rating with a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection.

Key Features:
✔ Part Number: LH36175
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: LH
✔ Voltage: 600
✔ Amperage: 175
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ UPC: 785901710486
✔ GTIN: 00785901710486
✔ Dimensions: Height 12.5 in (317.50 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 20
✔ Certification: UL, CSA
✔ Wire Size: AWG 1 to 600KCmil Aluminum/Copper, AWG 1 to 250KCmil Aluminum/Copper
