Square D LH36400 Circuit Breaker | 600V 400A 3P 35kA@480V I-Line

Product Description:
The Square D LH36400 is a Molded Case Circuit Breaker from the I-Line family. It features a 3-pole design with a 600V, 400A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: LH36400
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: I-Line
✔ Type: LH
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Protection: Thermal Magnetic
✔ UPC: 785901339434
✔ GTIN: 00785901339434
✔ Country of Origin: Mexico

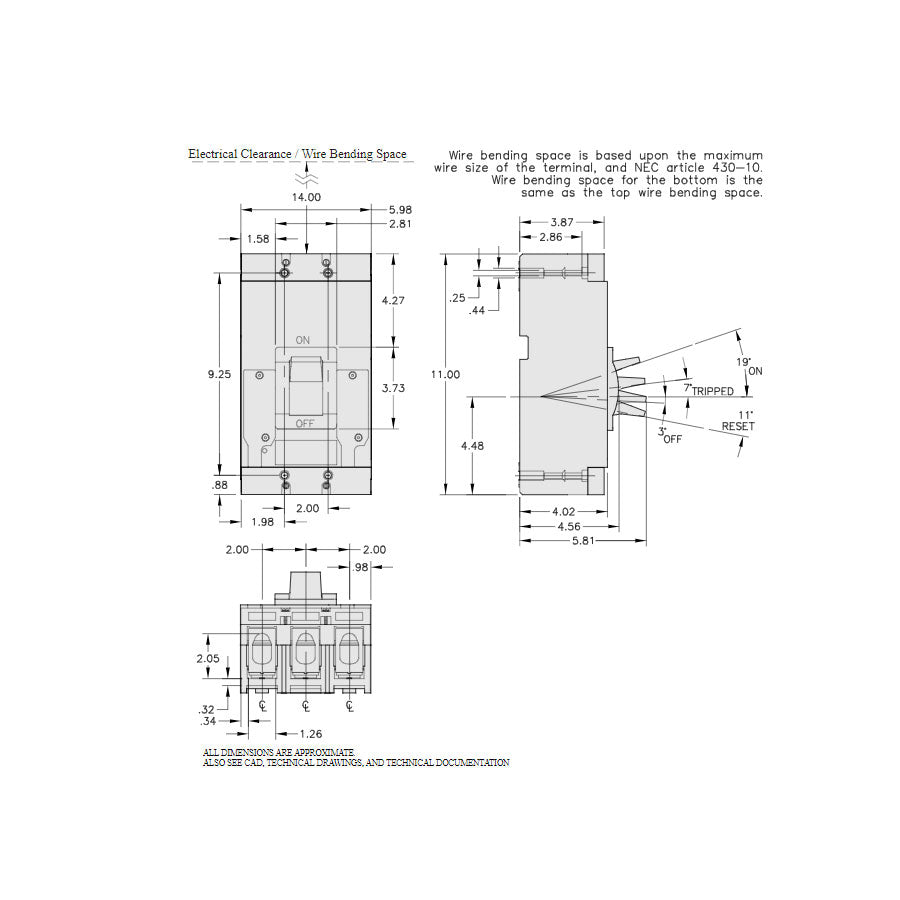

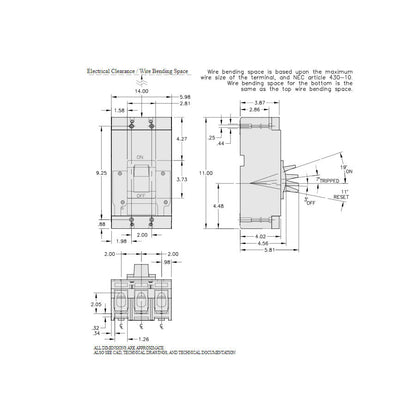

✔ Dimensions: 6 in x 12-1/2 in
✔ Weight: 8.29 lb
✔ Standards: UL Listed, CSA
✔ Certification: UL Listed, CSA
