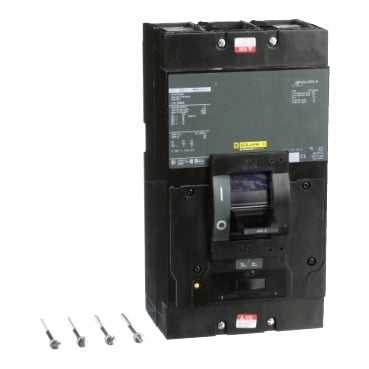

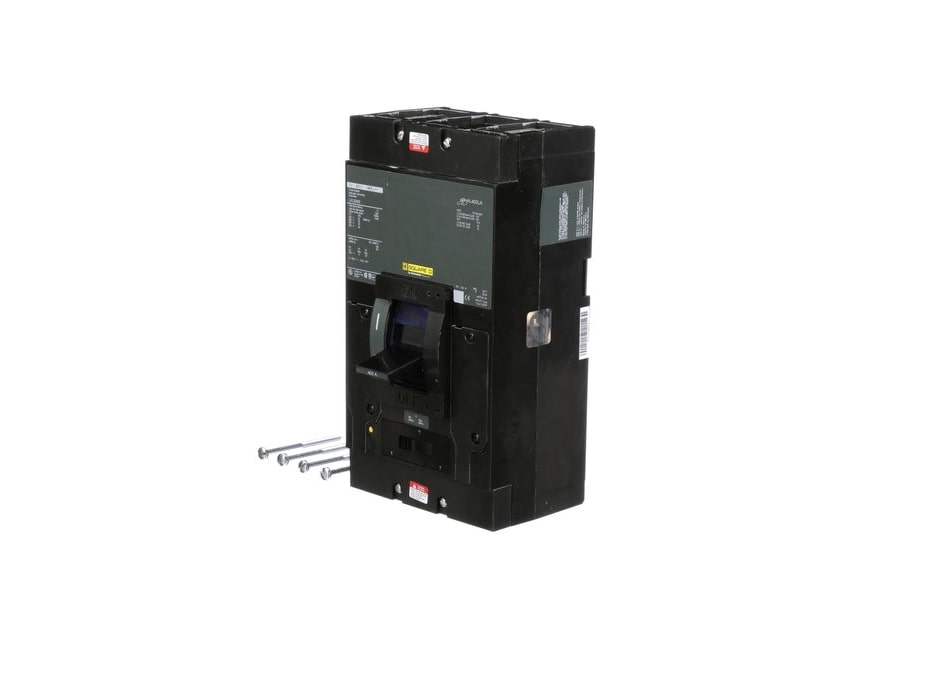

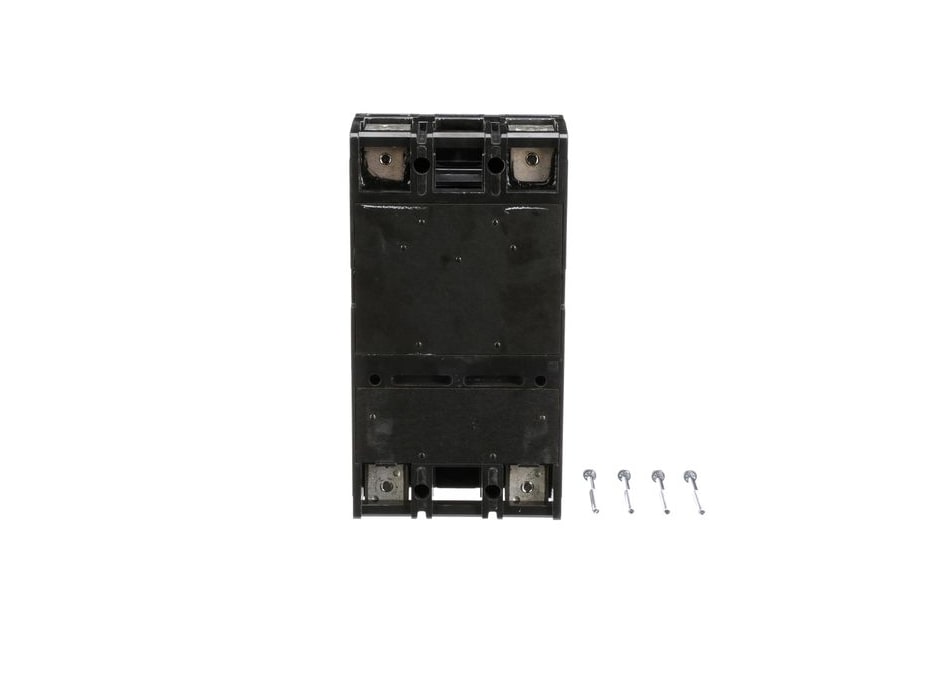

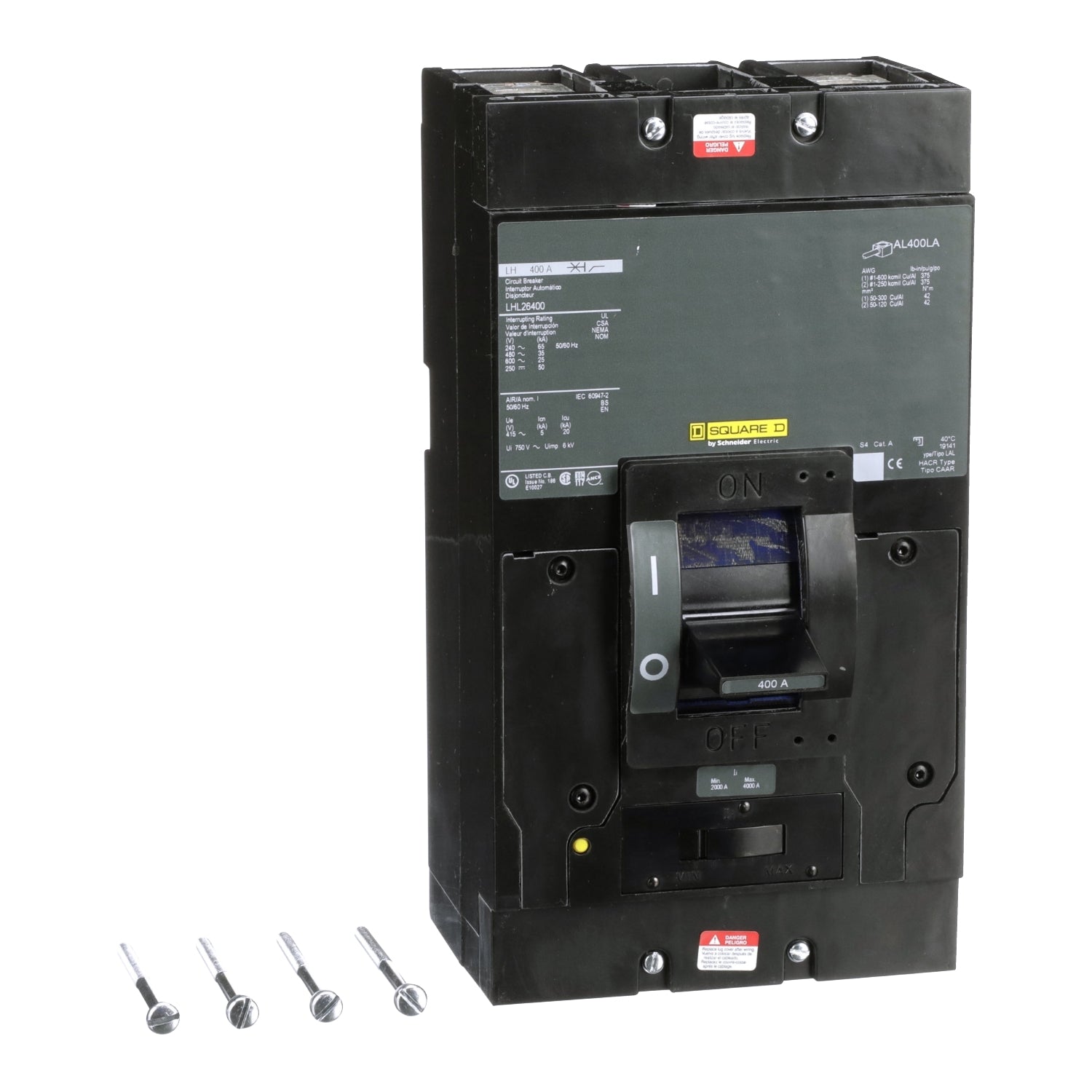

Square D LHL26400 Circuit Breaker | 600V 400A 2P 35kA@480V Feed-Thru LHL Series

Product Description:
The Square D LHL26400 is a Molded Case Circuit Breaker from the LHL Series. It features 2 poles, 600V voltage, and a 400 amp rating with a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: LHL26400
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LHL Series
✔ Type: LHL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ Protection: Thermal Magnetic
✔ UPC: 785901042259
✔ GTIN: 00785901042259
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 6.56
✔ Standards: CSA, IEC, UL Listed
✔ Certification: CSA, IEC, UL Listed
✔ Wire Size: AWG 1, 250/600KCmil Aluminum/Copper
