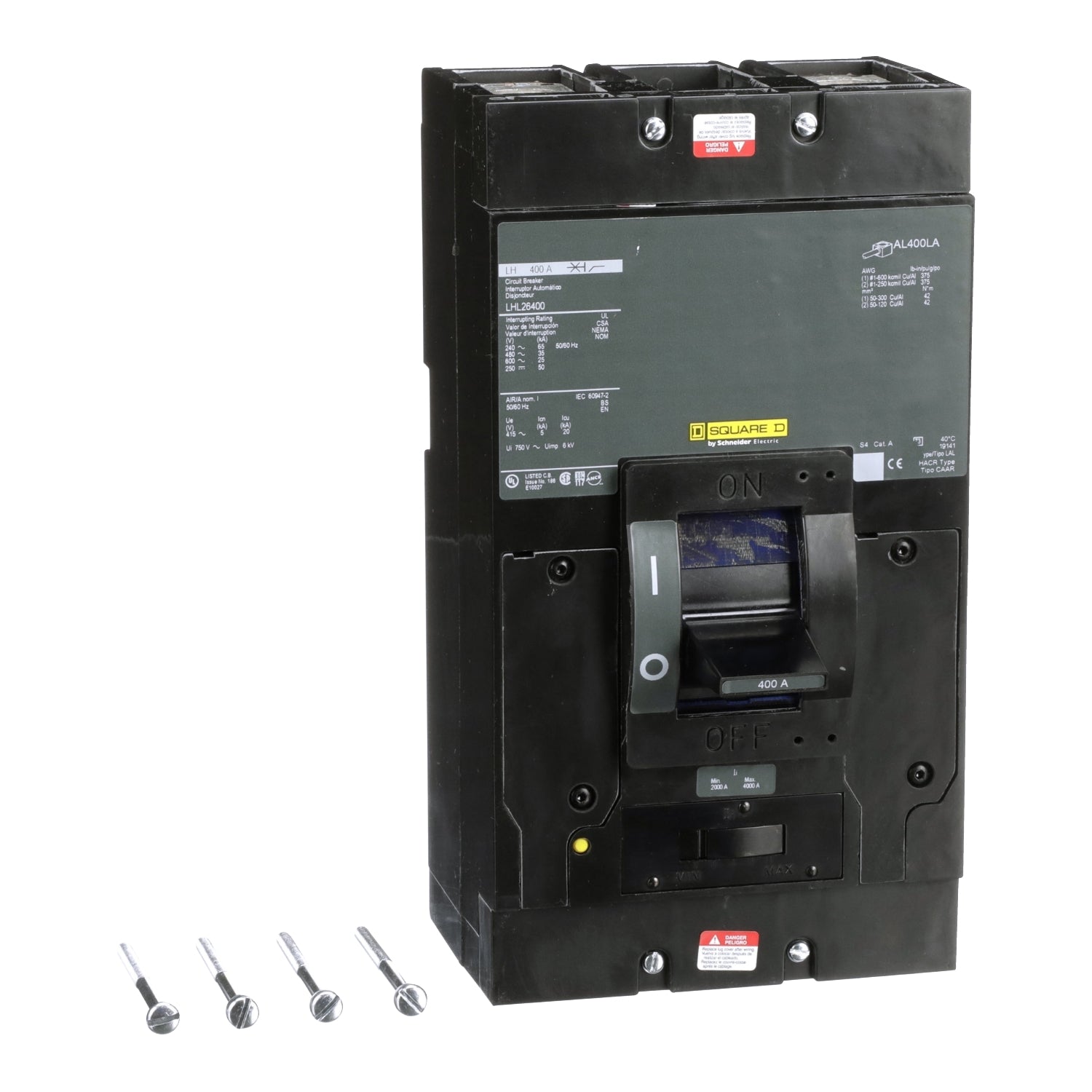

Square D LHL26400V Circuit Breaker | 600V 400A 2P 35kA@480V Feed-Thru LHL Series

Product Description:
The Square D LHL26400V is a Molded Case Circuit Breaker from the LHL Series. It features 2 poles, 600V voltage, and a 400 amp rating with a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection for reliable performance. Key Features:
✔ Part Number: LHL26400V
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LHL Series
✔ Type: LHL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Depth 5.84 in (148.34 mm) Width 6 in (152.40 mm) Height 11 in (279.40 mm)
✔ Weight: 18
