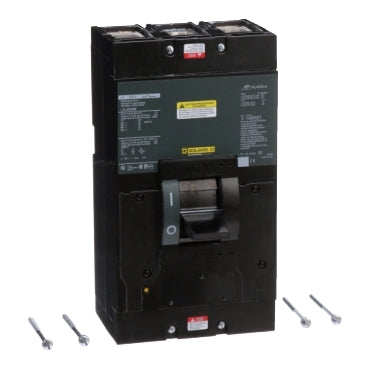

Square D LHL36000M Circuit Breaker | 600V 400A 3P 35kA@480V Feed-Thru LHL Series

Product Description:
The Square D LHL36000M is a Molded Case Circuit Breaker from the LHL Series. It features a 3-pole design with a 600V, 400A rating and a 35kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Magnetic Only protection. It is suitable for industrial and commercial electrical systems.

Key Features:
✔ Part Number: LHL36000M
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: LHL Series
✔ Type: LHL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Functions: I - Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: H
✔ Protection: Magnetic Only
✔ UPC: 785901042273
✔ GTIN: 00785901042273
✔ Country of Origin: Mexico
✔ Dimensions: 6 in x 11 in
✔ Weight: 7.37
✔ Standards: IEC, CSA, UL Listed
✔ Certification: IEC, CSA, UL Listed
✔ Wire Size: 1 AWG to 600 kcmil (Aluminium/Copper) 1 cable(s) 1 AWG to 250 kcmil (Aluminium/Copper) 2 cable(s)
