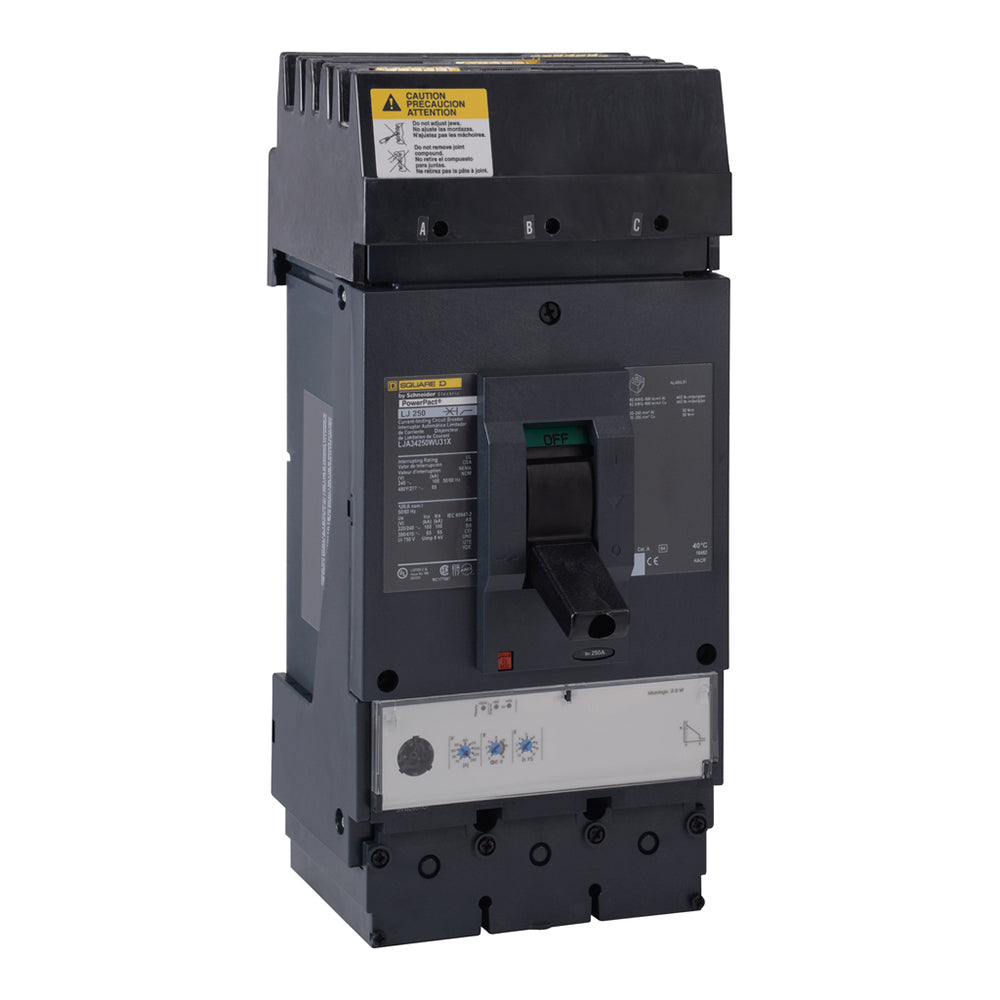

Square D LJA34250WU31X Circuit Breaker | 480V 250A 3P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D LJA34250WU31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 480V, 250A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: LJA34250WU31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJA
✔ Voltage: 480
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Solid State
✔ UPC: 78590197998
✔ GTIN: 00785901979982
✔ Country of Origin: United States
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.71
✔ Wire Size: AWG 2...600 kcmil copper / AWG 2...500 kcmil aluminum
