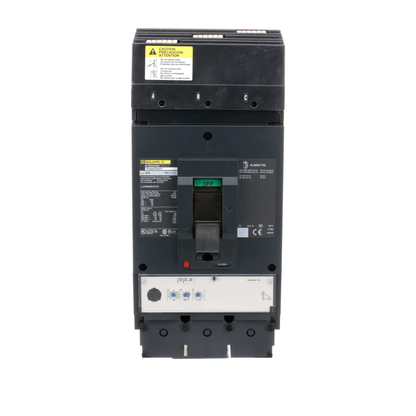

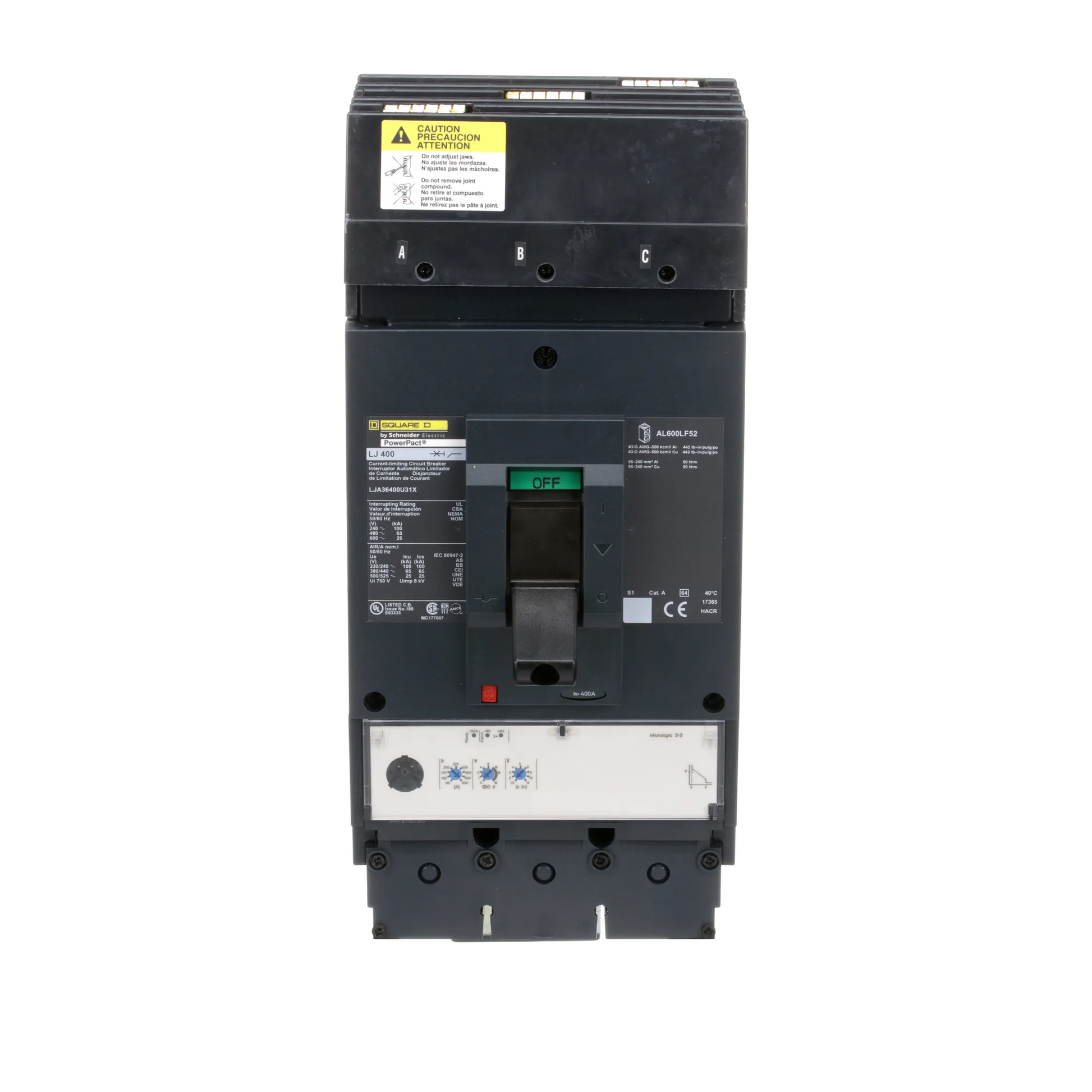

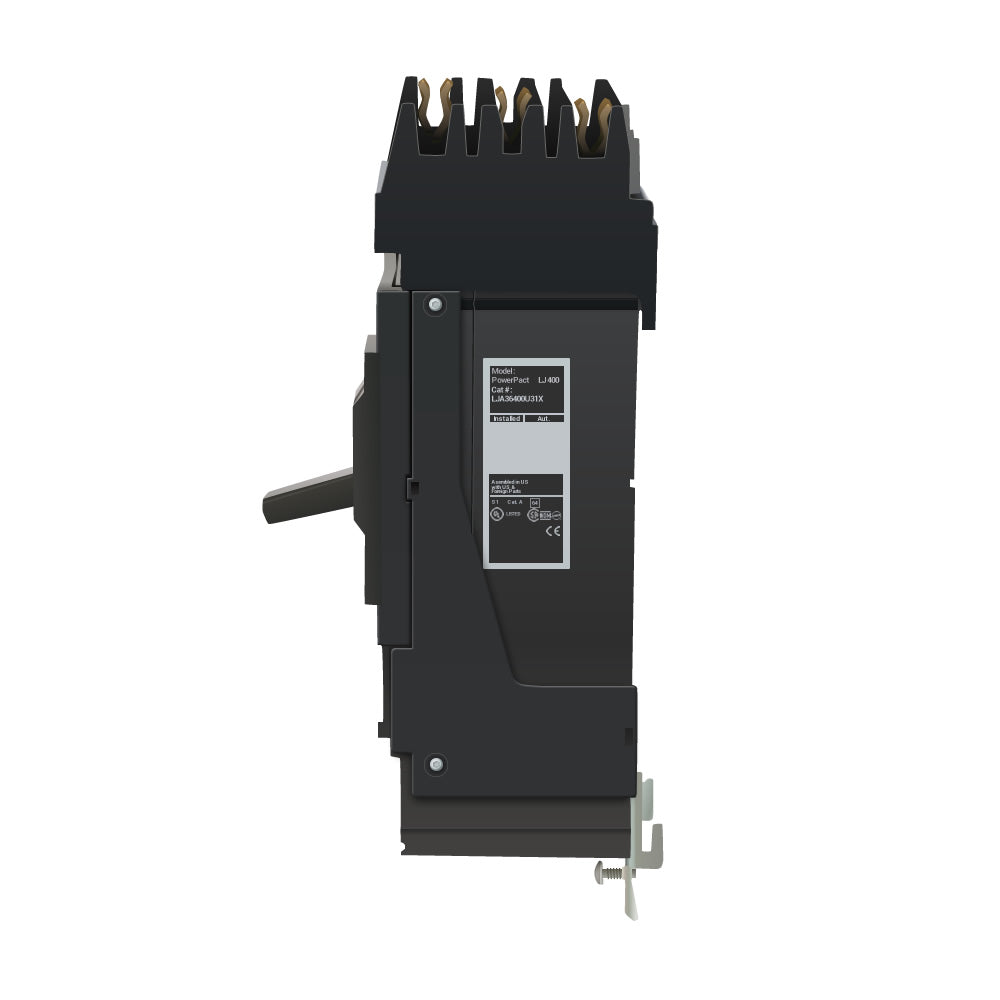

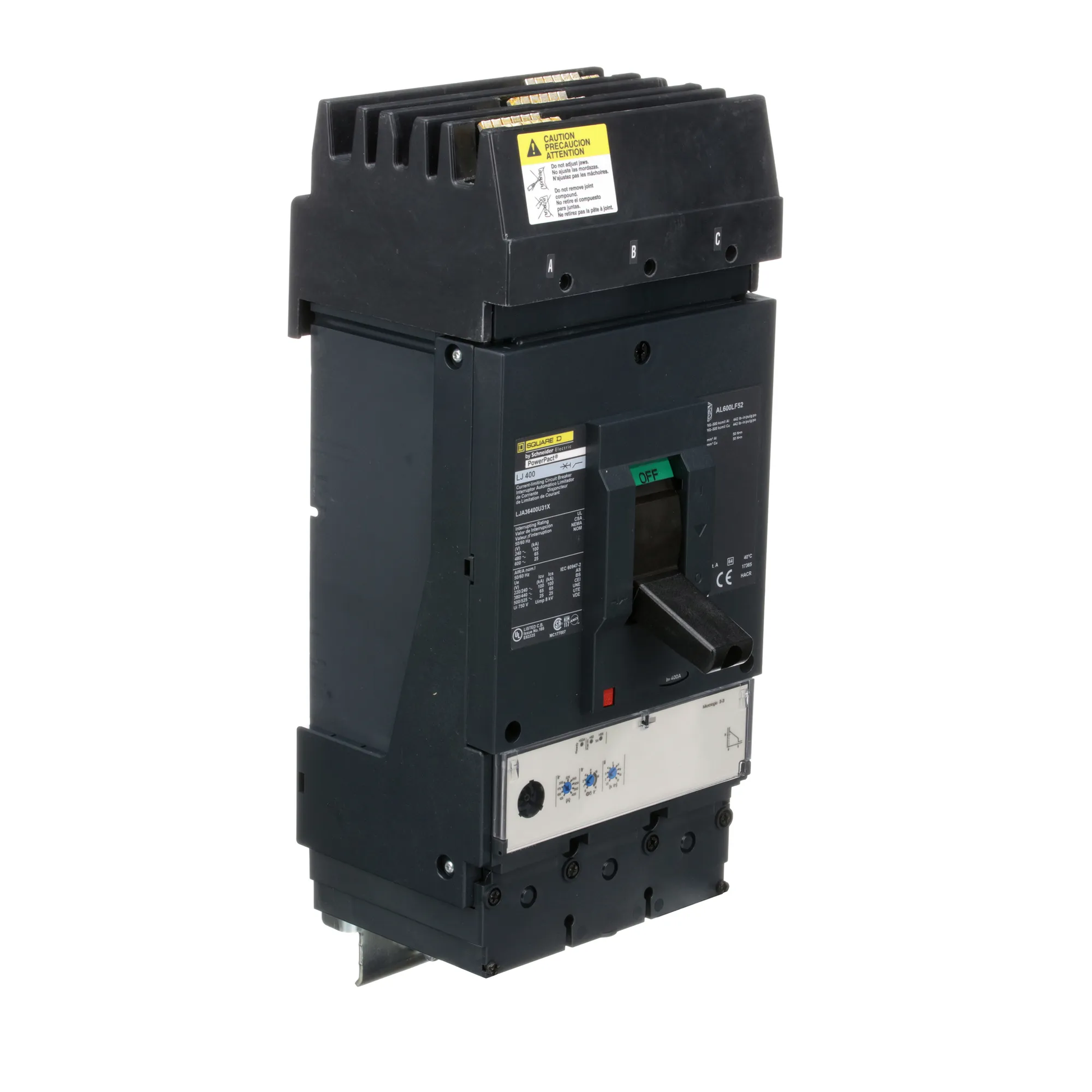

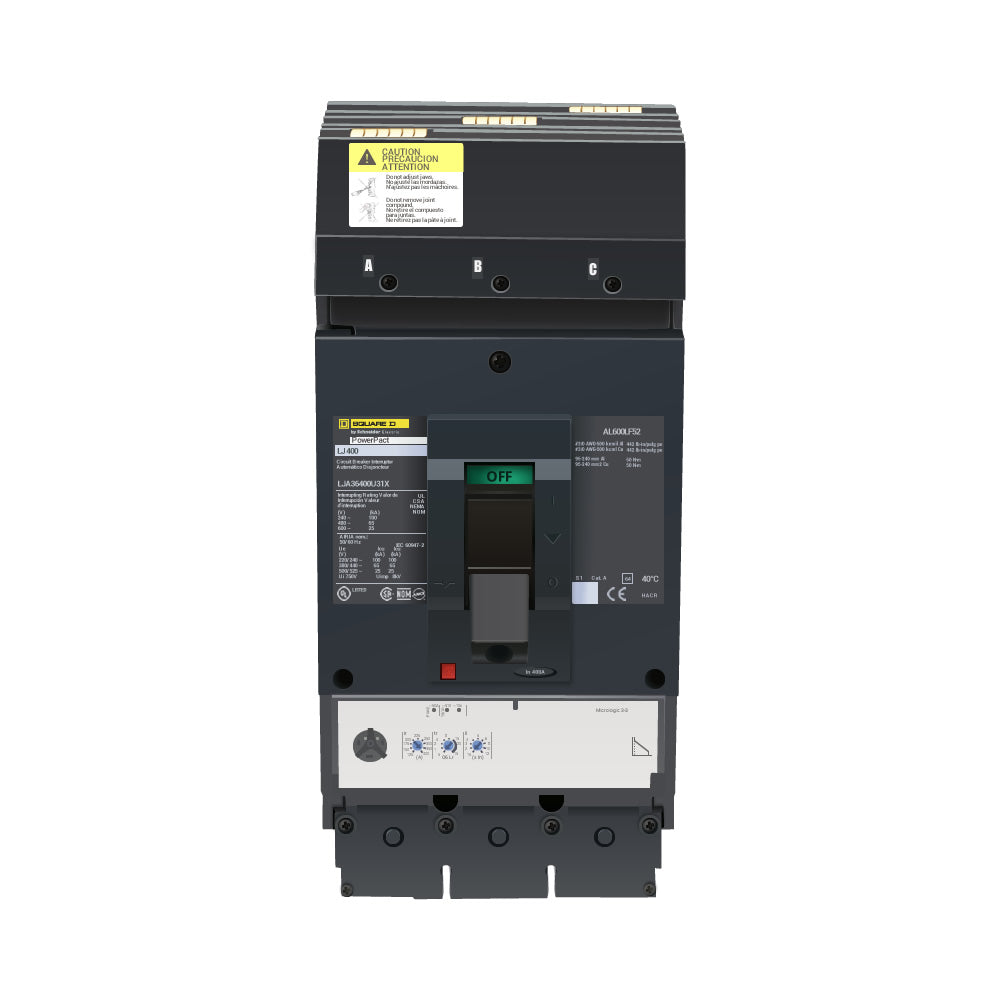

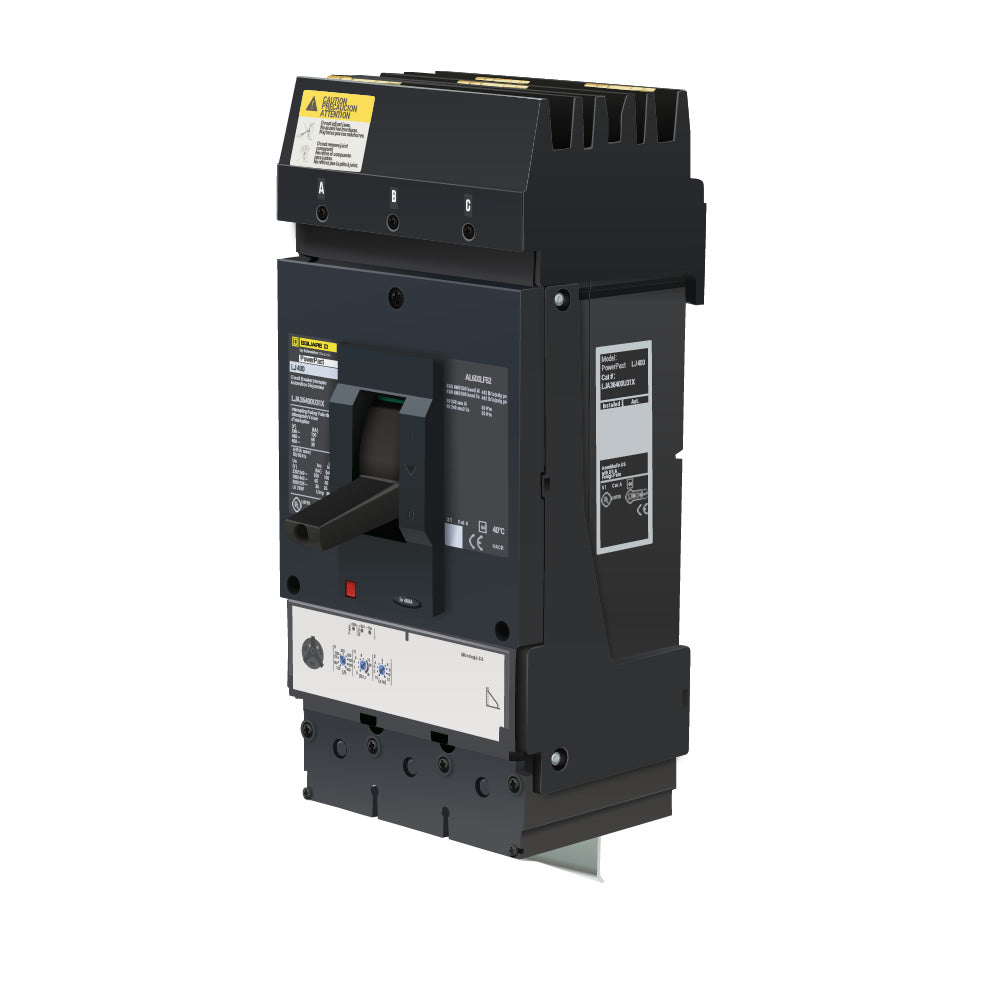

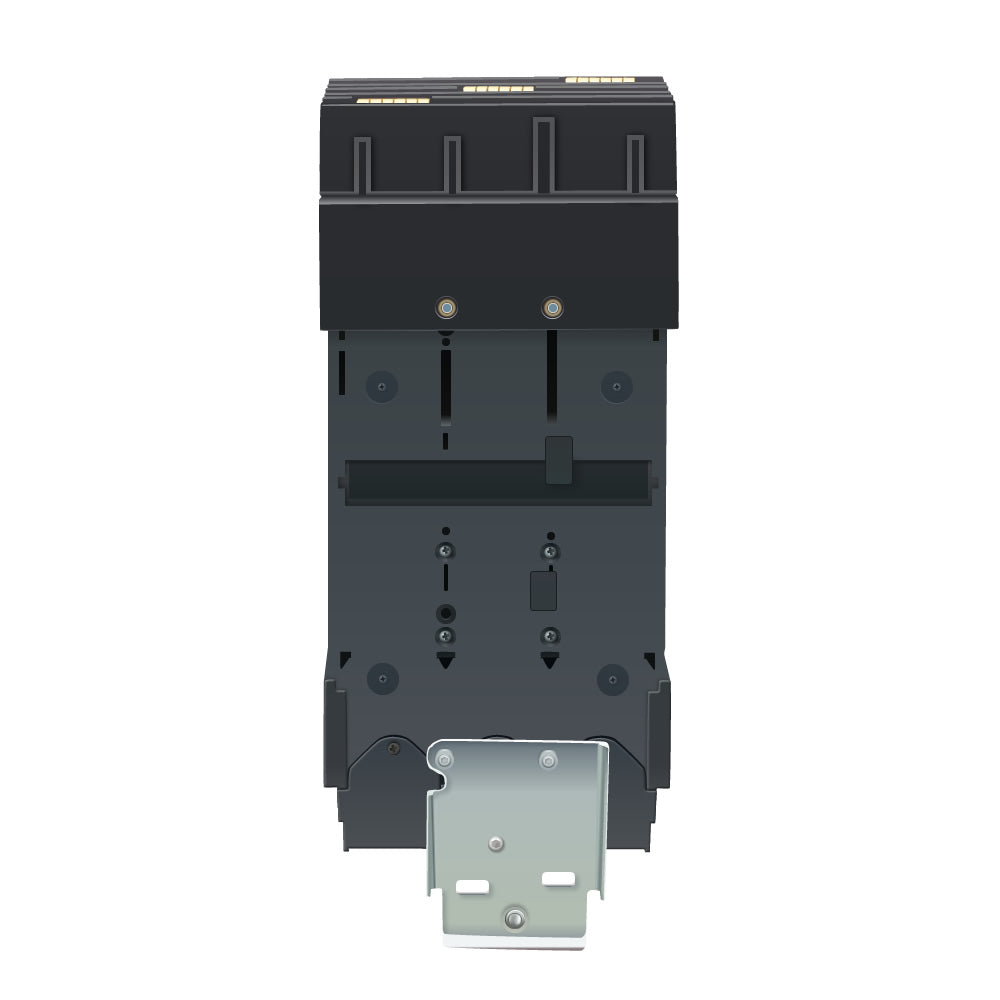

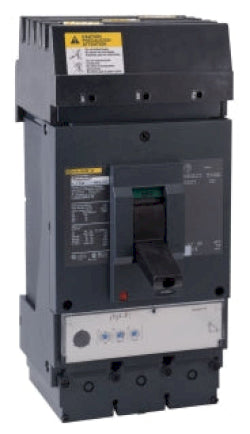

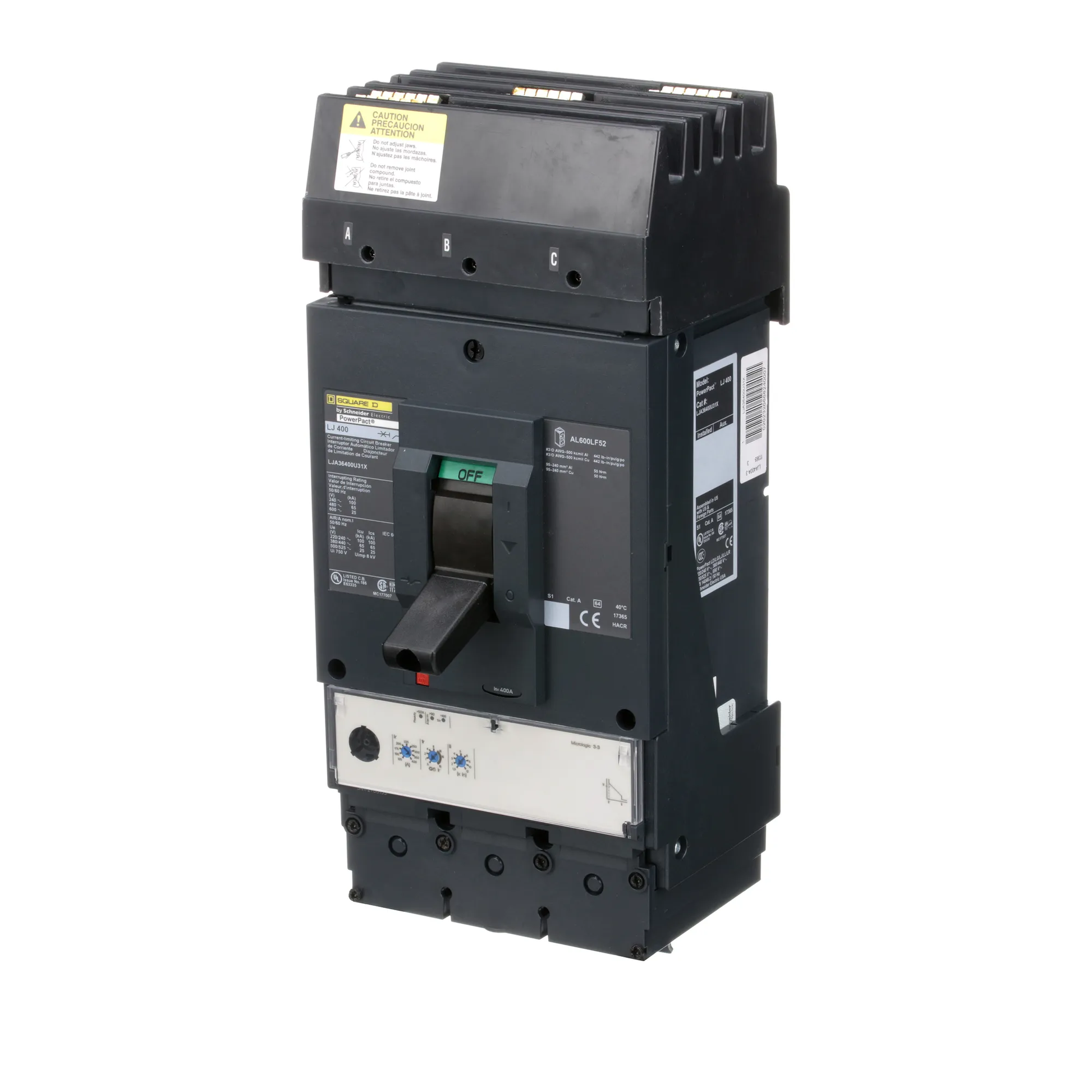

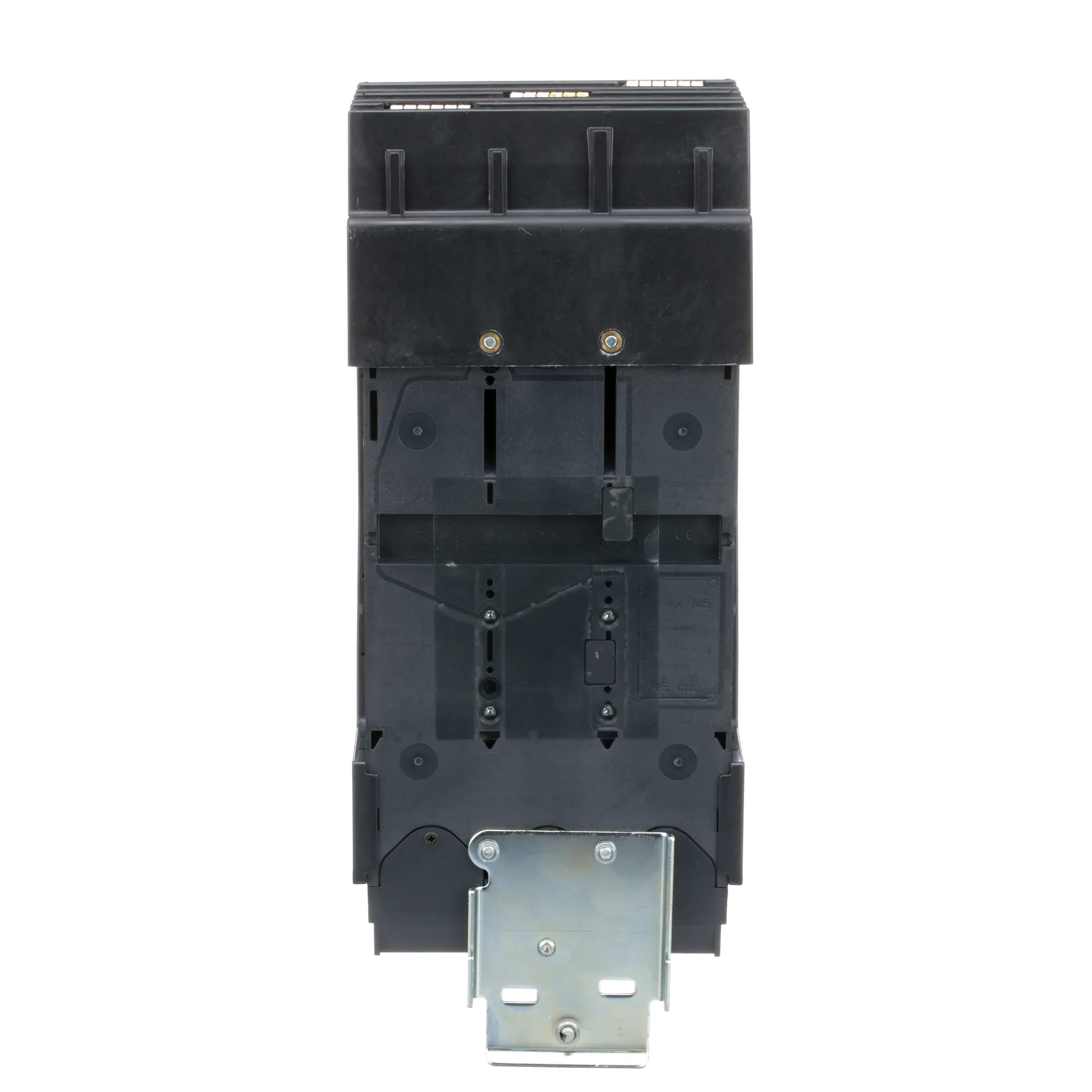

Square D LJA36400U31X Circuit Breaker | 600V 400A 3P 65kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D LJA36400U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 400 amp rating with a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is designed for reliable performance in electrical systems.

Key Features:
✔ Part Number: LJA36400U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: L
✔ MCM Size: Min. Wire Size 3/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: ABC
✔ UPC: 785901648550
✔ GTIN: 00785901648550
✔ Country of Origin: United States

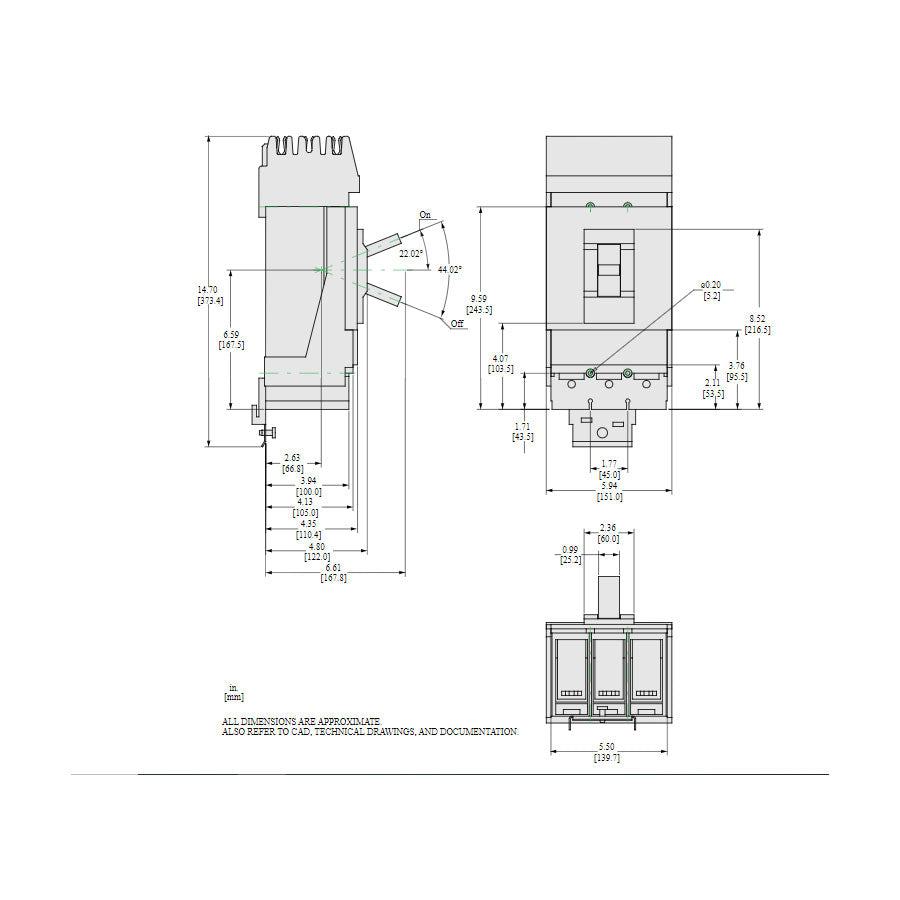

✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 7.76 lb
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: AWG 3/0...500 kcmil aluminium/copper
