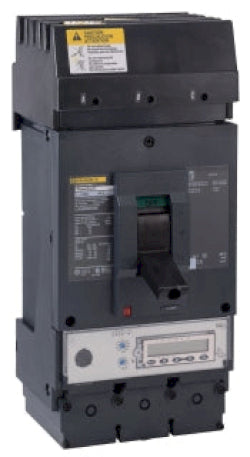

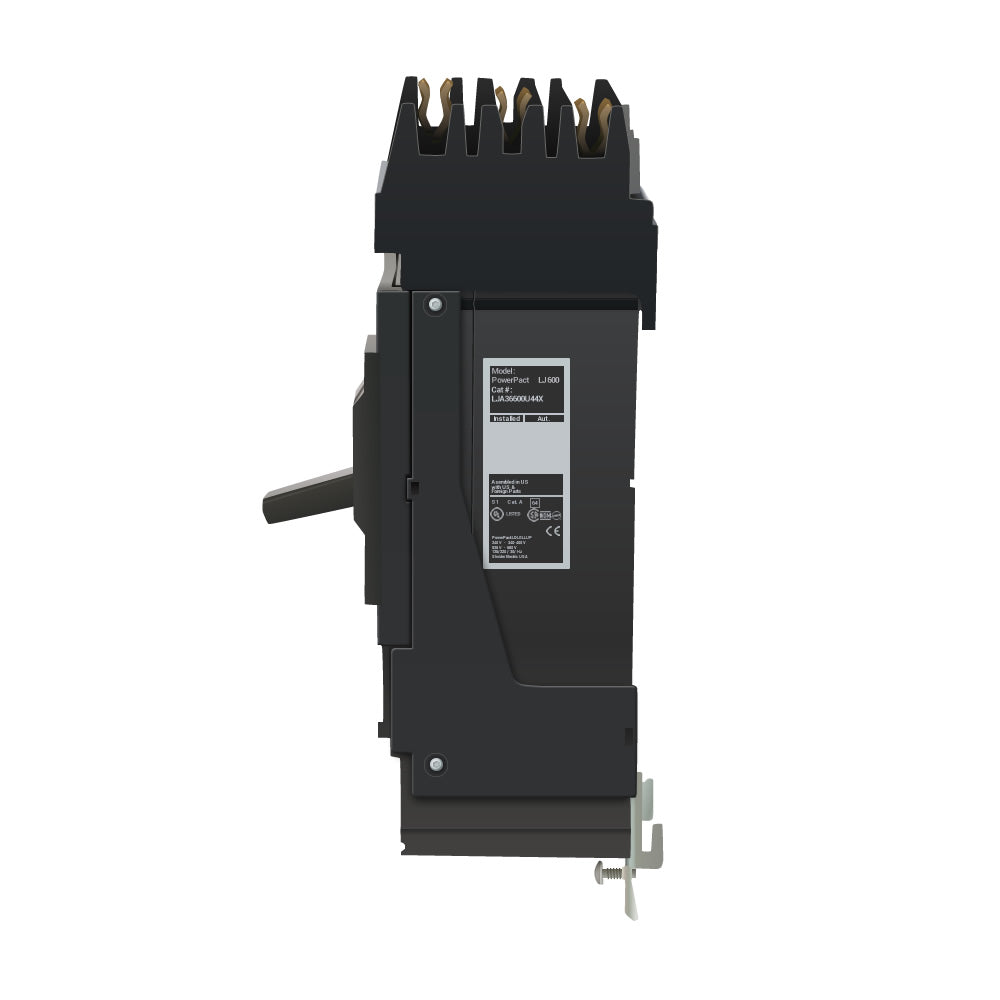

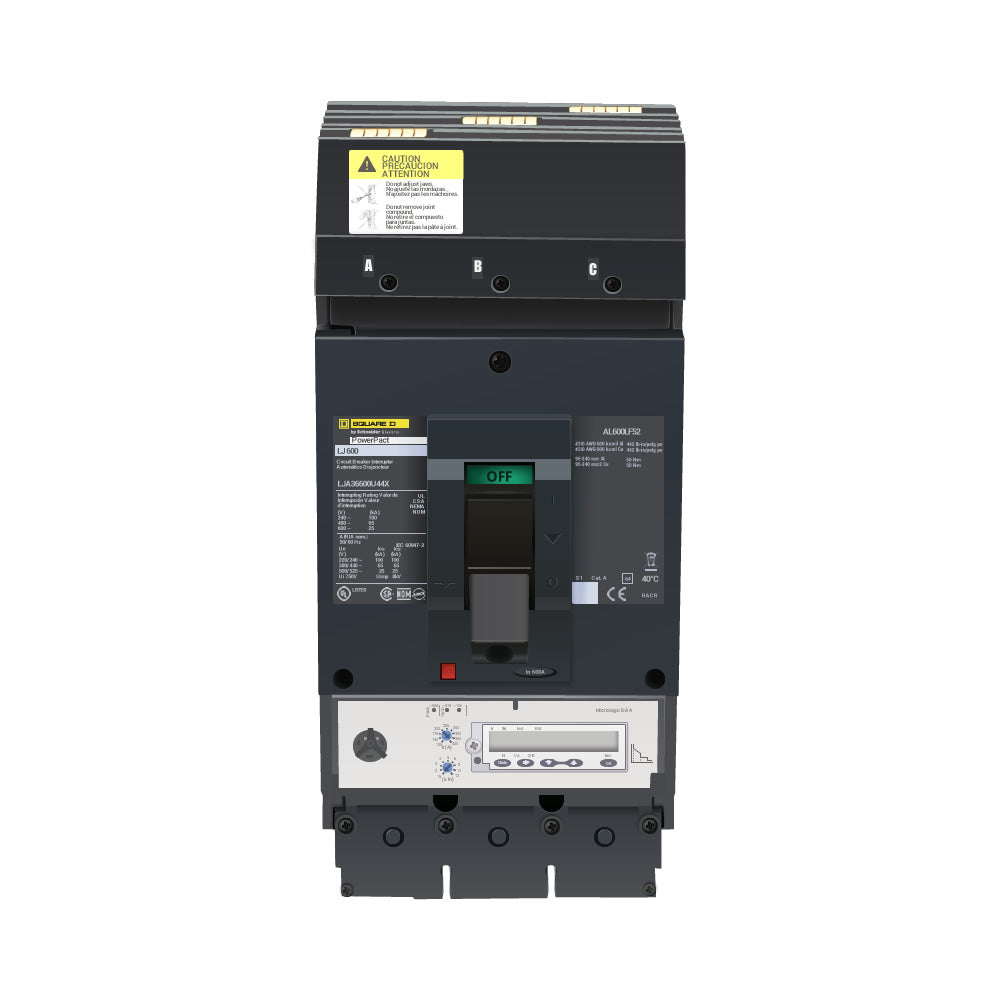

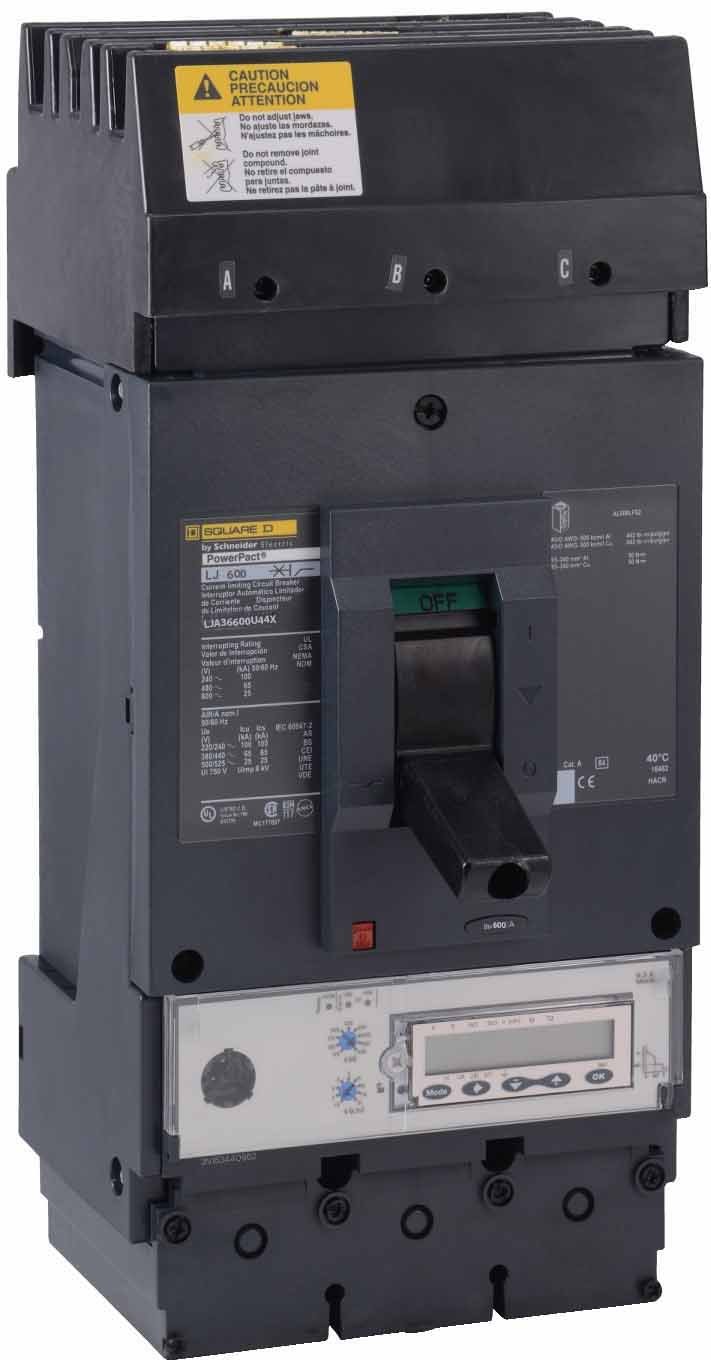

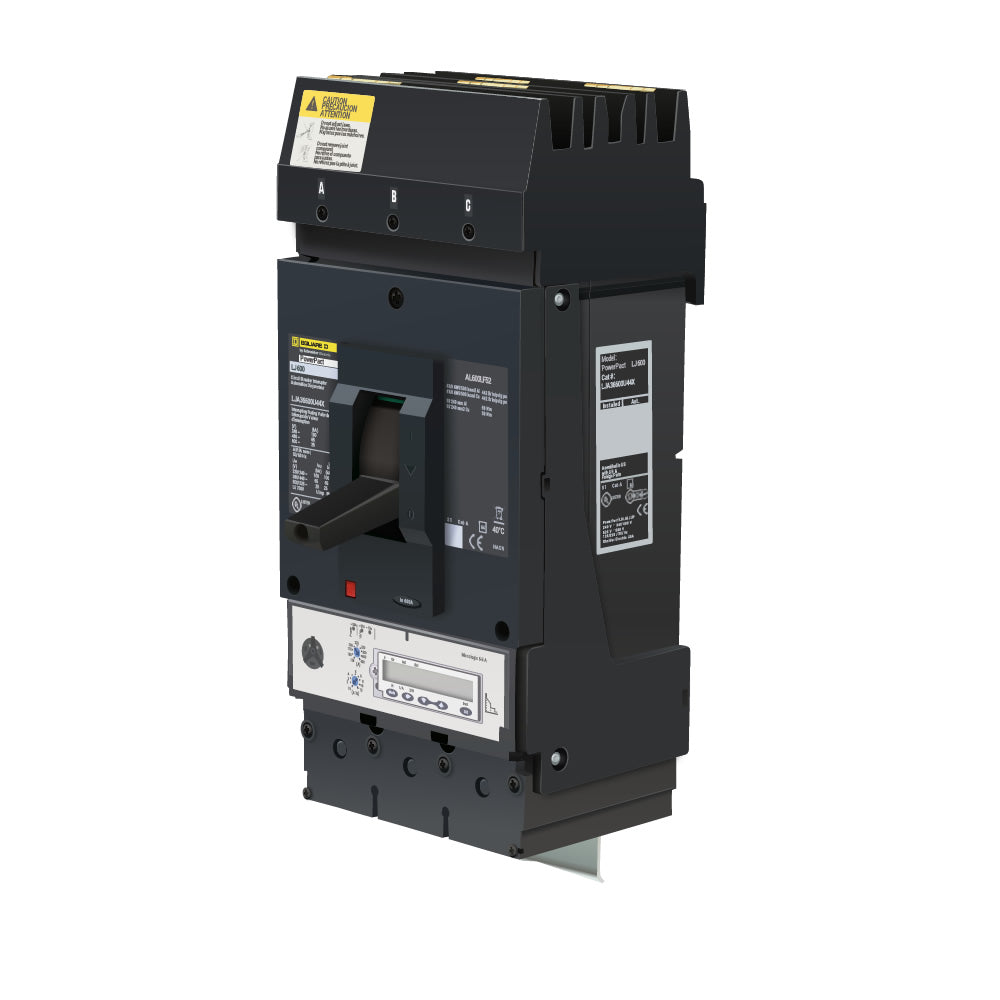

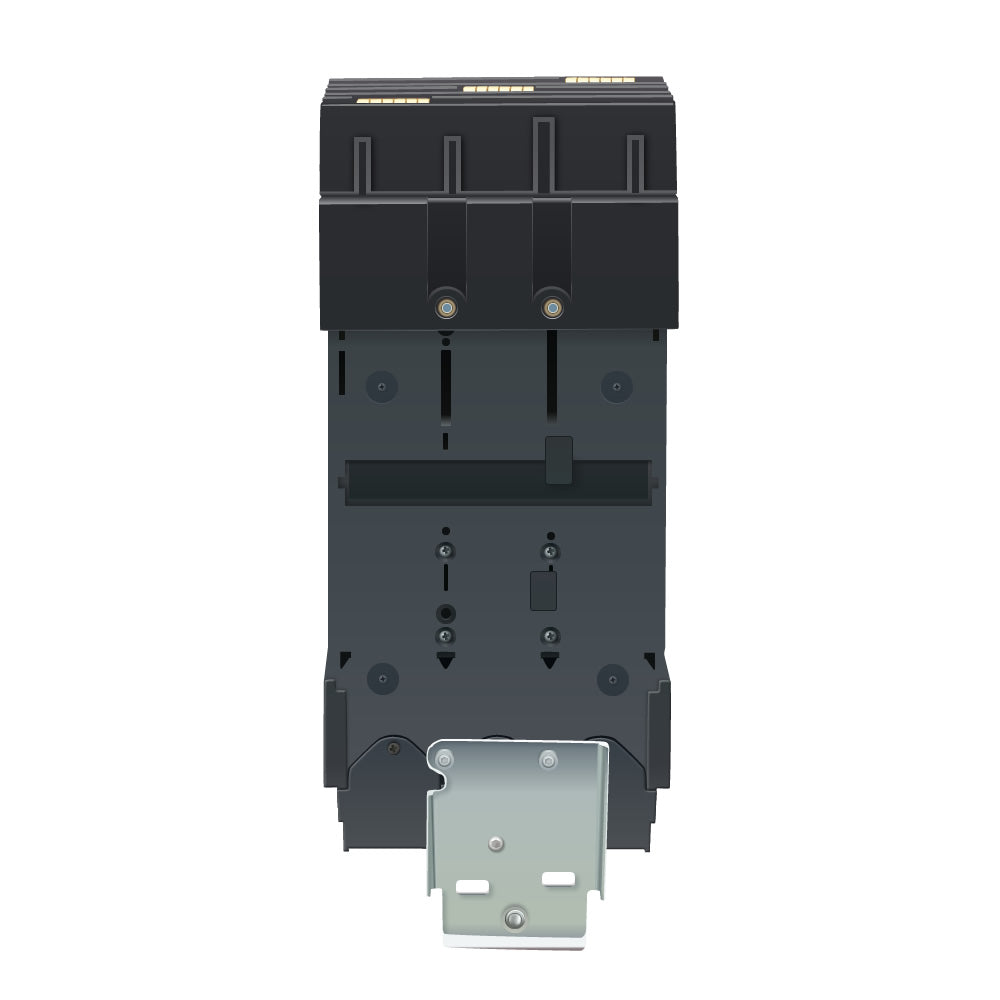

Square D LJA36600U44X Circuit Breaker | 600V 600A 3P 65kA@480V I-Line Style Plug-In Powerpact
Square D LJA36600U44X Circuit Breaker | 600V 600A 3P 65kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$7,114.06 USD
Regular price
$14,332.00 USD
Sale price
$7,114.06 USD
Unit price
per
Shipping calculated at checkout.
Stock:
30 in stock
Couldn't load pickup availability
Product Description:
The Square D LJA36600U44X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and an AIC rating of 65kA@480V. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: LJA36600U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901486985
✔ GTIN: 00785901486985
✔ Country of Origin: United States

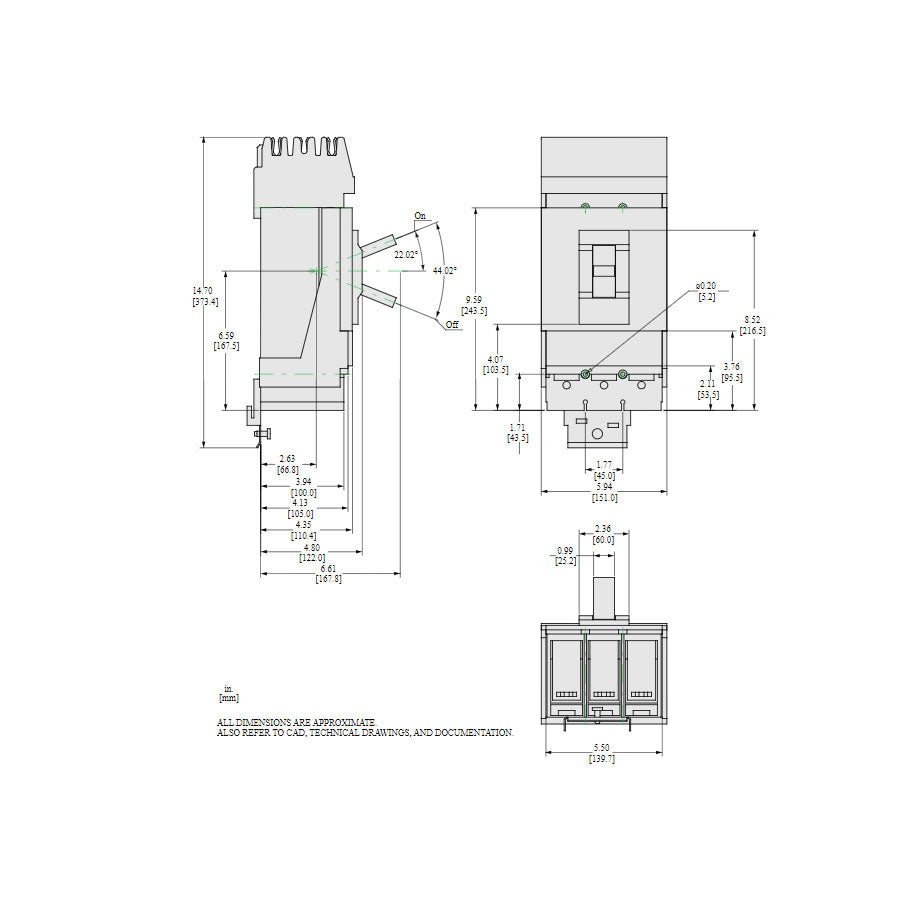

✔ Dimensions: Height 13.39 in (340 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 7.71 lb
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
The Square D LJA36600U44X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and an AIC rating of 65kA@480V. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: LJA36600U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901486985
✔ GTIN: 00785901486985
✔ Country of Origin: United States
✔ Dimensions: Height 13.39 in (340 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 7.71 lb
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
