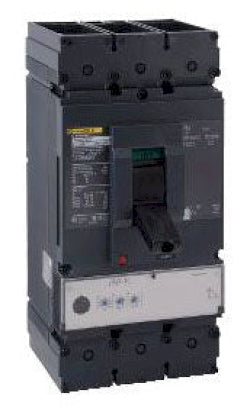

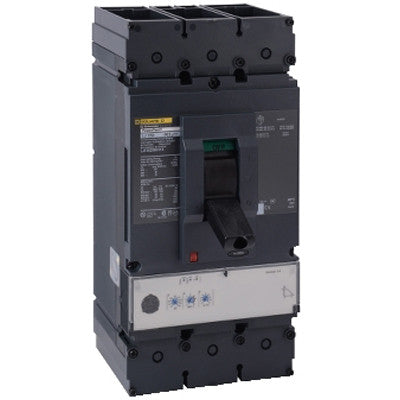

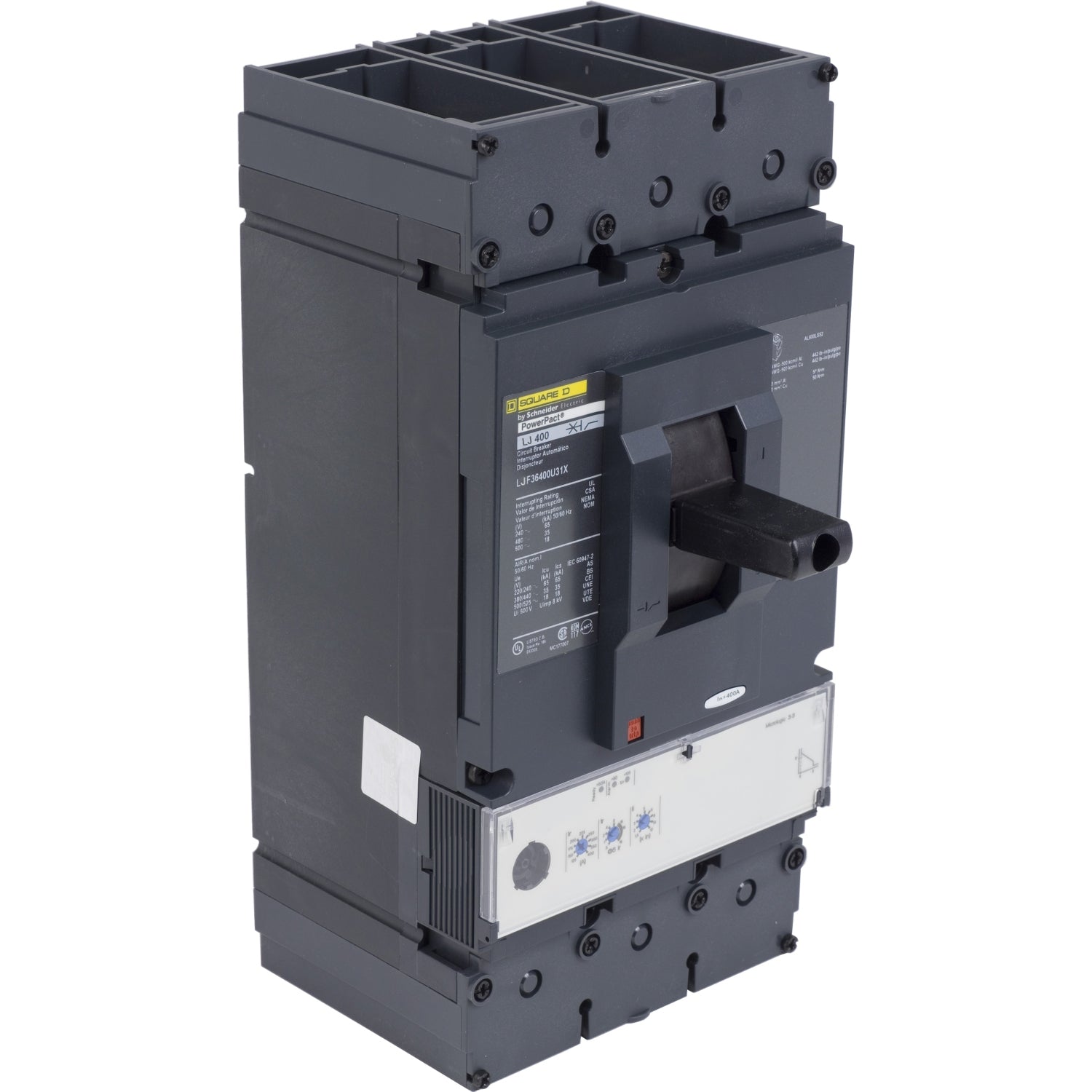

Square D LJF36400U31X Molded Case Circuit Breaker | 600V 400A 3P 65kA@480V Bolt-On Powerpact

Product Description:
The Square D LJF36400U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 400 amp breaker rated for 600 volts with an AIC rating of 65kA@480V. This unit features a bolt-on connection and solid state protection for reliable performance.

Key Features:
✔ Part Number: LJF36400U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJF
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: L
✔ MCM Size: Min. Wire Size (2) 2/0 AWG (Cu/Al) Max. Wire Size 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901072720
✔ GTIN: 00785901072720
✔ Country of Origin: United States

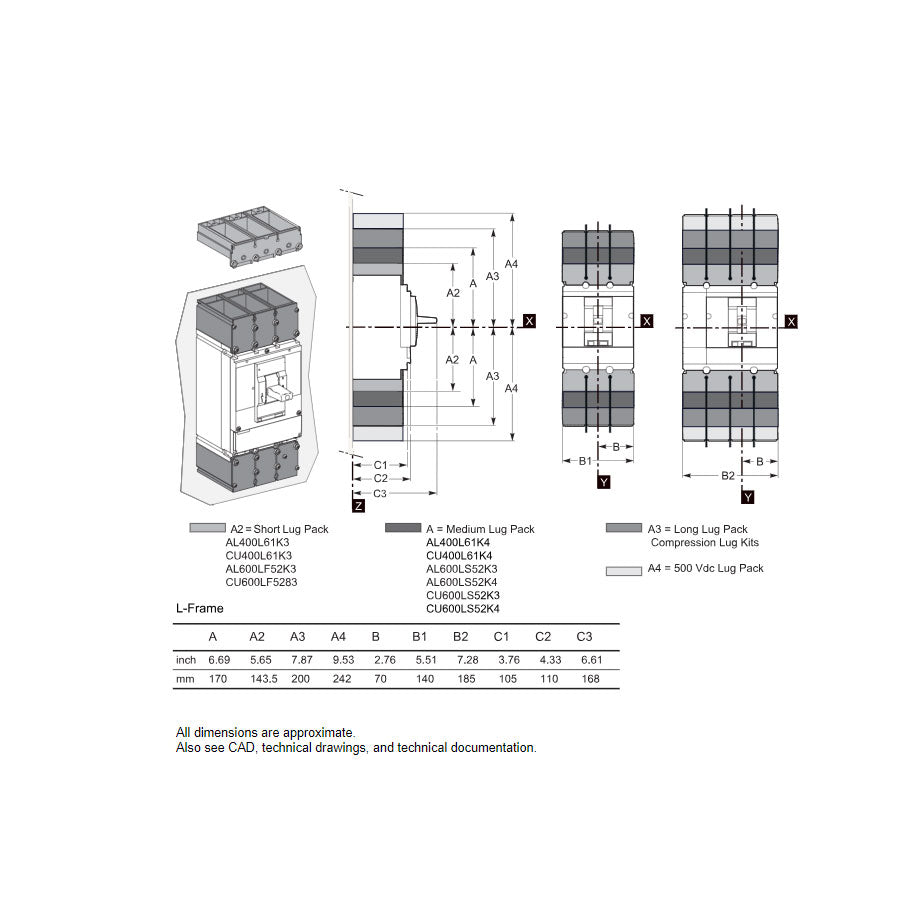

✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 6.8
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
