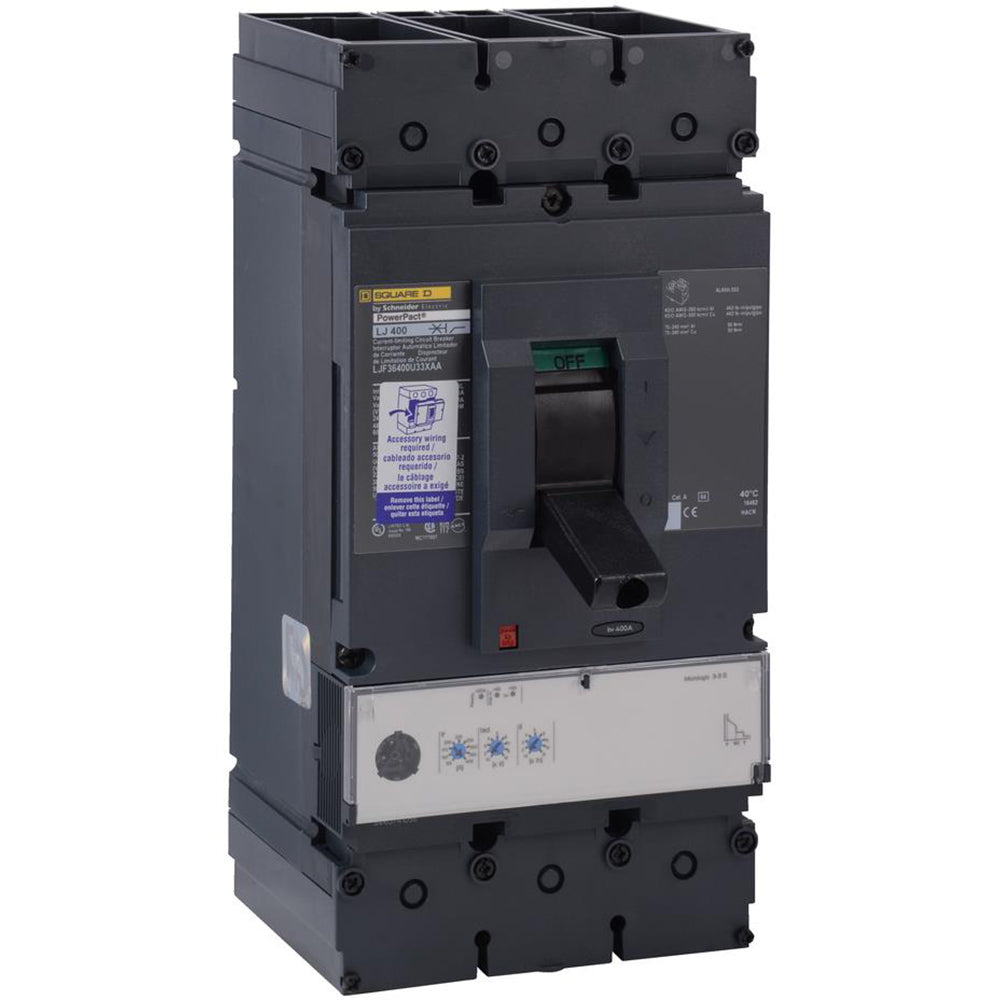

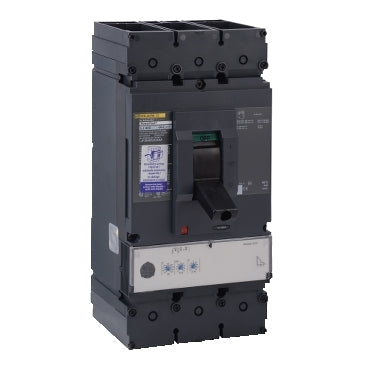

Square D LJF36600U33X Circuit Breaker | 600V 600A 3P 65kA@480V Bolt-On Powerpact

Product Description:
The Square D LJF36600U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V and 600A rating, plus a 65kA@480V AIC rating. This bolt-on breaker includes solid-state protection for reliable performance. Note that lugs are not included with this item.

Key Features:
✔ Part Number: LJF36600U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJF
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 606482046309
✔ GTIN: 03606482046306
✔ Dimensions: Depth 4.33 in (110 mm) Width 5.51 in (140 mm) Height 13.39 in (340 mm)
✔ Weight: 6.8
