Square D LJL36250CU33X Circuit Breaker | 600V 250A 3P 65kA@480V Feed-Thru Powerpact
Square D LJL36250CU33X Circuit Breaker | 600V 250A 3P 65kA@480V Feed-Thru Powerpact
Price:
Sale
Sold out
Regular price
$3,226.90 USD
Regular price
$0.00 USD
Sale price
$3,226.90 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low inventory, please call (855) 875-5050 for stock check
Couldn't load pickup availability
Product Description:

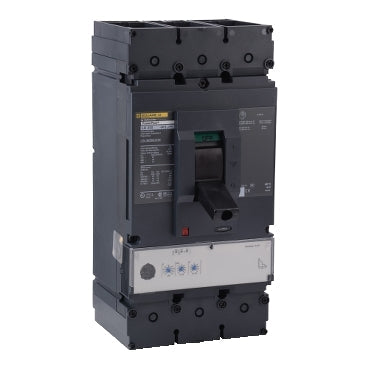

The Square D LJL36250CU33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 250A rating and a 65kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Solid State protection for reliable performance.
Key Features:
✔ Part Number: LJL36250CU33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJL
✔ Voltage: 600
✔ Amperage: 250
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 060648628448
✔ GTIN: 03606486284483
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.8
✔ Wire Size: AWG 2...600 kcmil copper / AWG 2...500 kcmil aluminum
