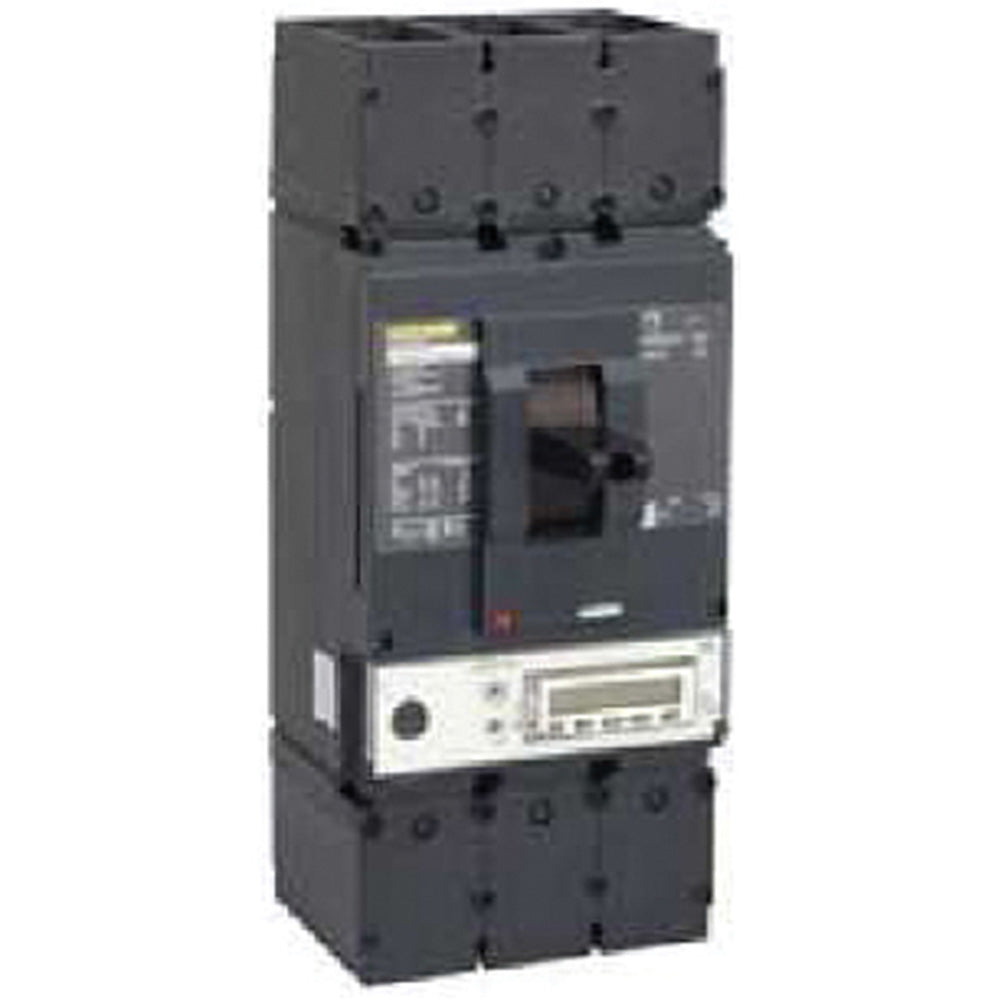

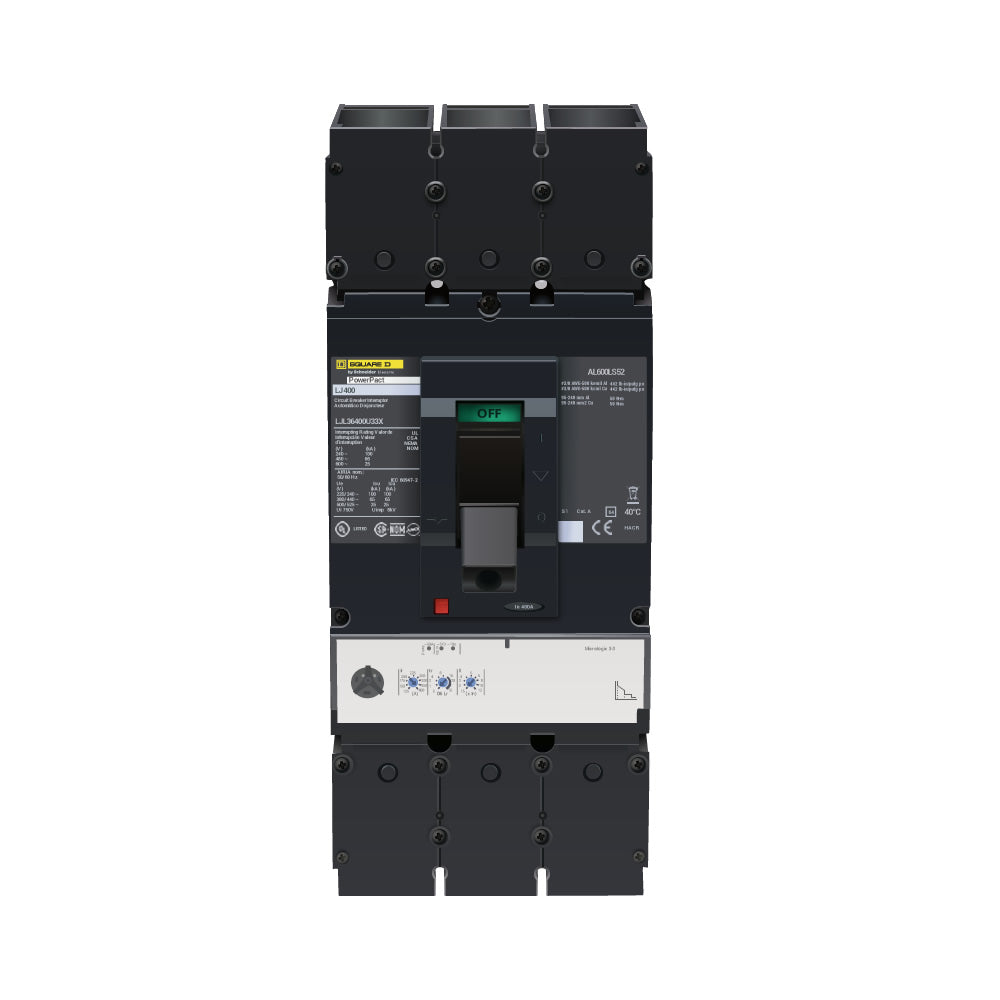

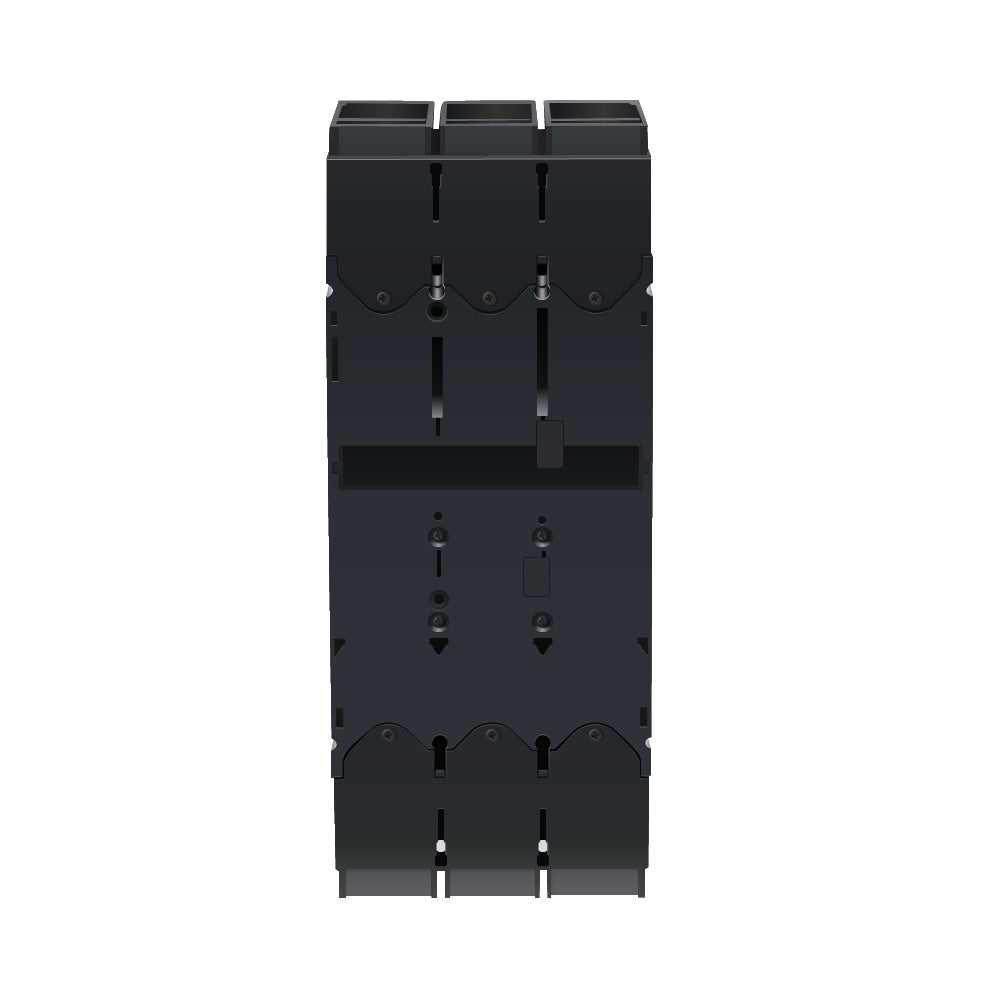

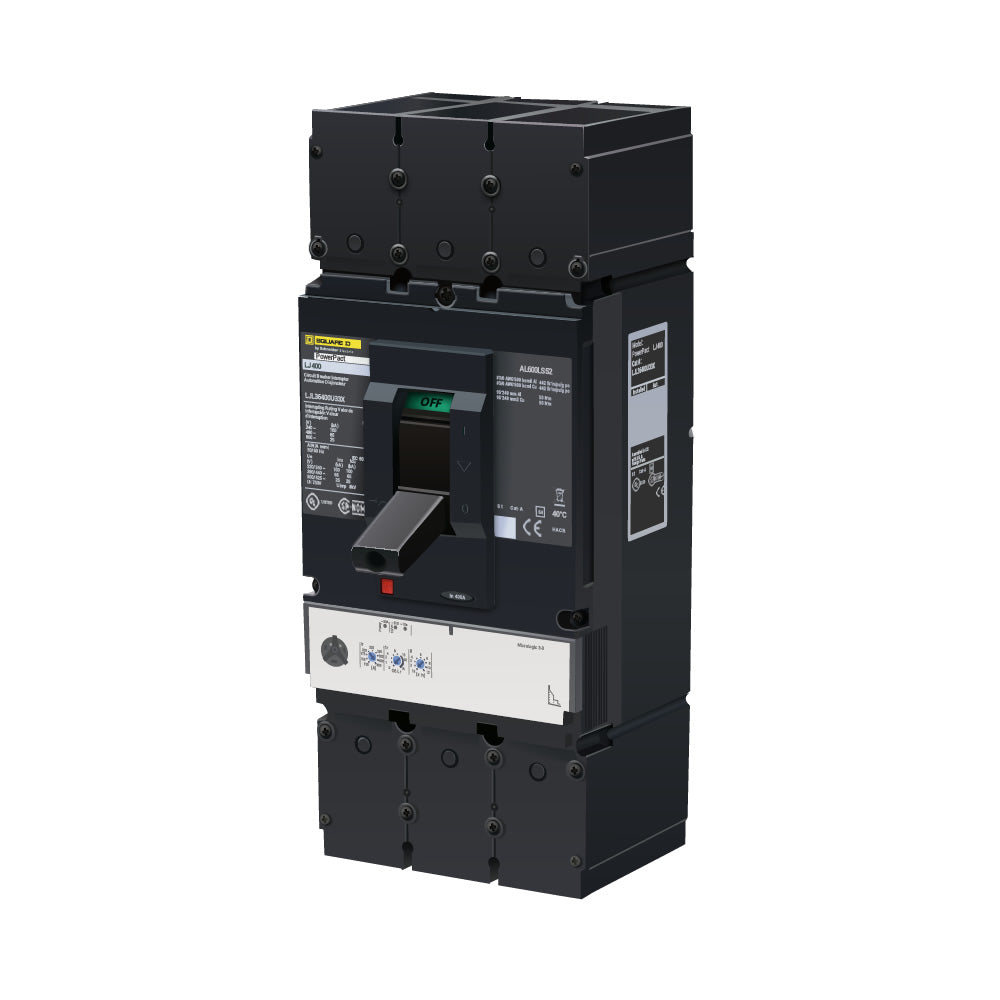

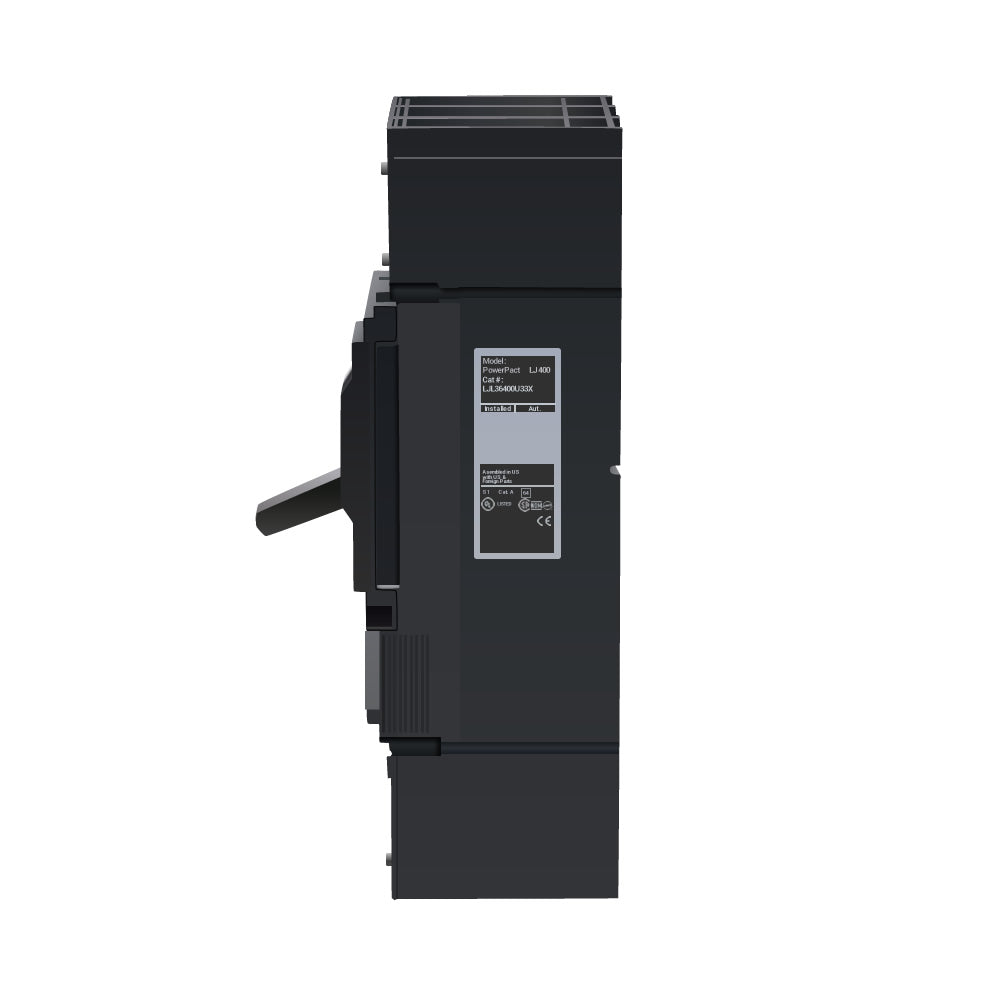

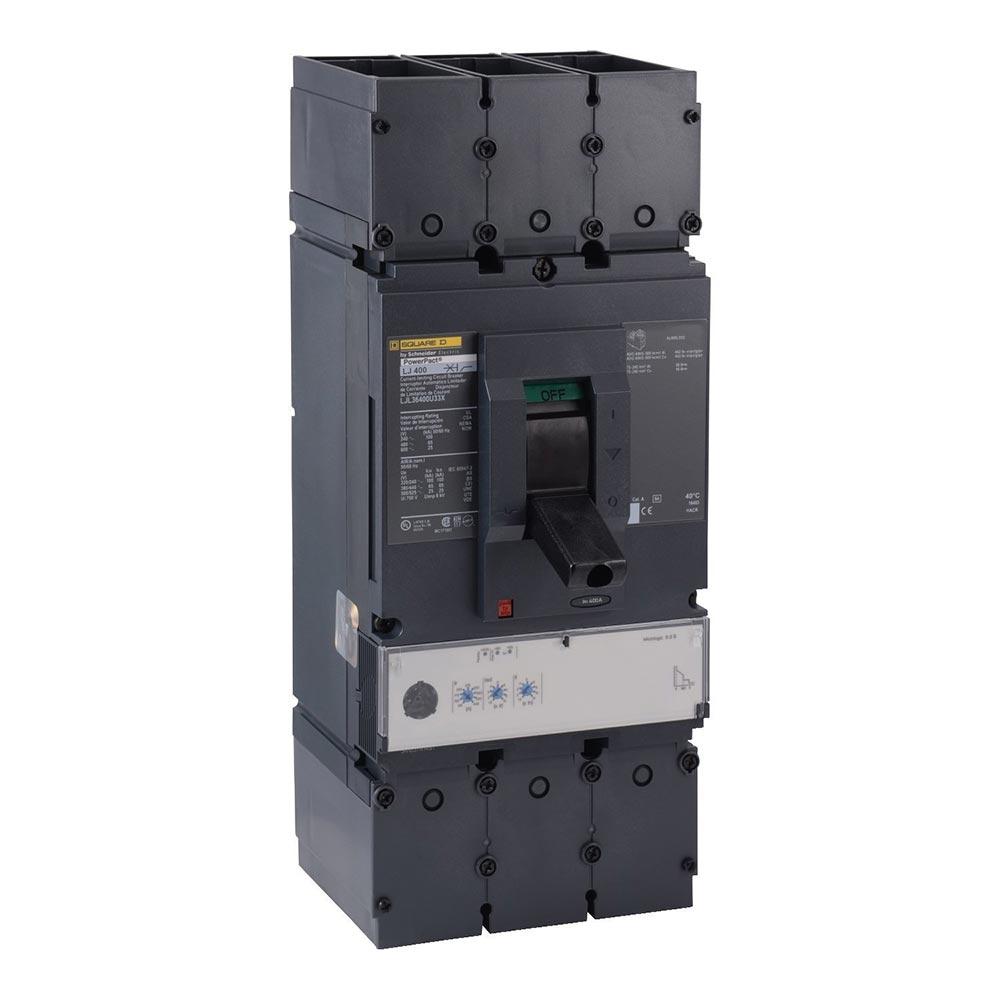

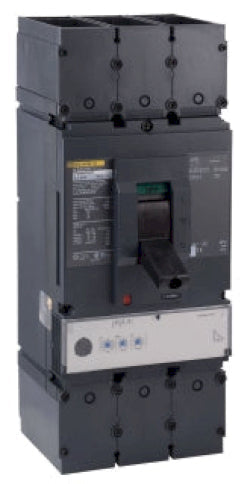

Square D LJL36400U33X Circuit Breaker | 600V 400A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D LJL36400U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 65kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Solid State protection for reliable performance.

Key Features:
✔ Part Number: LJL36400U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901303794
✔ GTIN: 00785901303794
✔ Country of Origin: Mexico

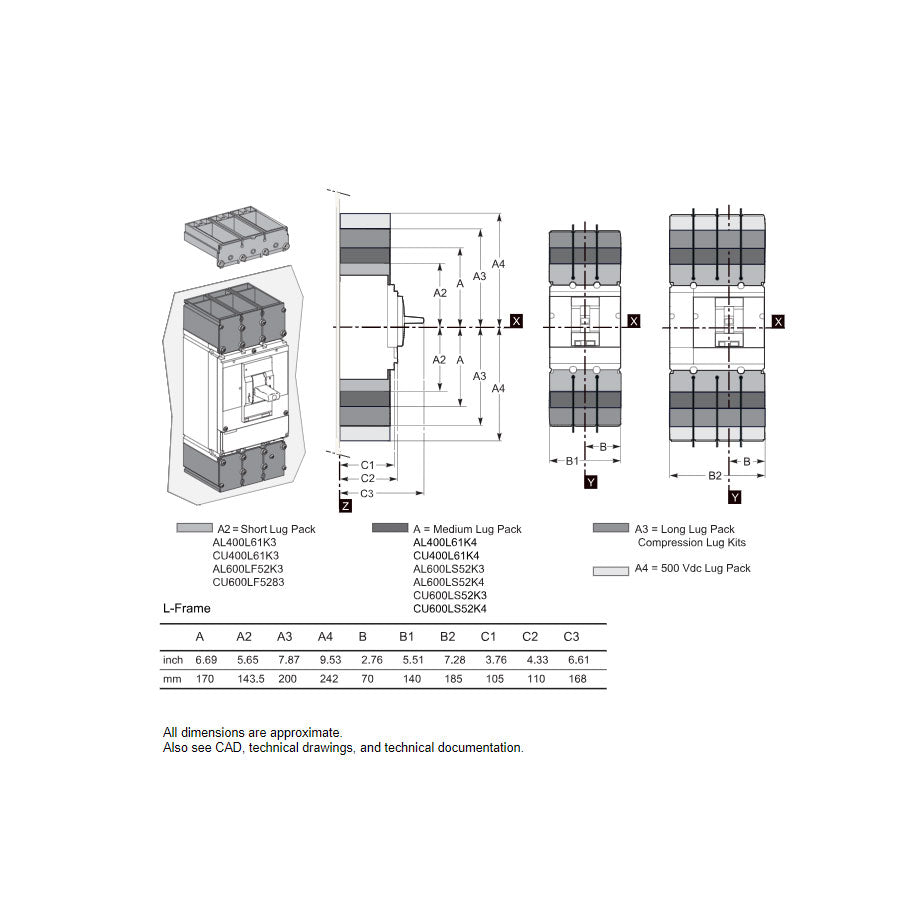

✔ Dimensions: Height 13.39 in (340 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 7.99
✔ Certification: CSA, CCC, IEC, CE, UL, NMX, NEMA
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
