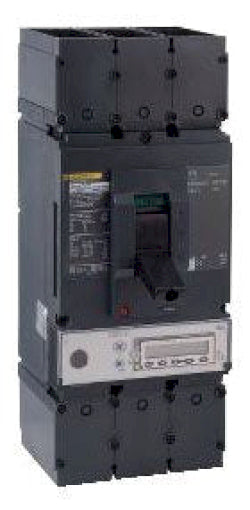

Square D LJL36400U44X Circuit Breaker | 600V 400A 3P 65kA@480V Feed-Thru Powerpact

Product Description:
The Square D LJL36400U44X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 400 amp breaker rated for 600 volts with an AIC rating of 65kA@480V. This unit features a Feed-Thru connection and includes Solid State protection with LSIG functions.

Key Features:
✔ Part Number: LJL36400U44X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJL
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901057079
✔ GTIN: 00785901057079
✔ Country of Origin: Mexico
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.8
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
