Square D LJL36600U31X Circuit Breaker | 600V 600A 3P 65kA@480V Feed-Thru Powerpact

Product Description:

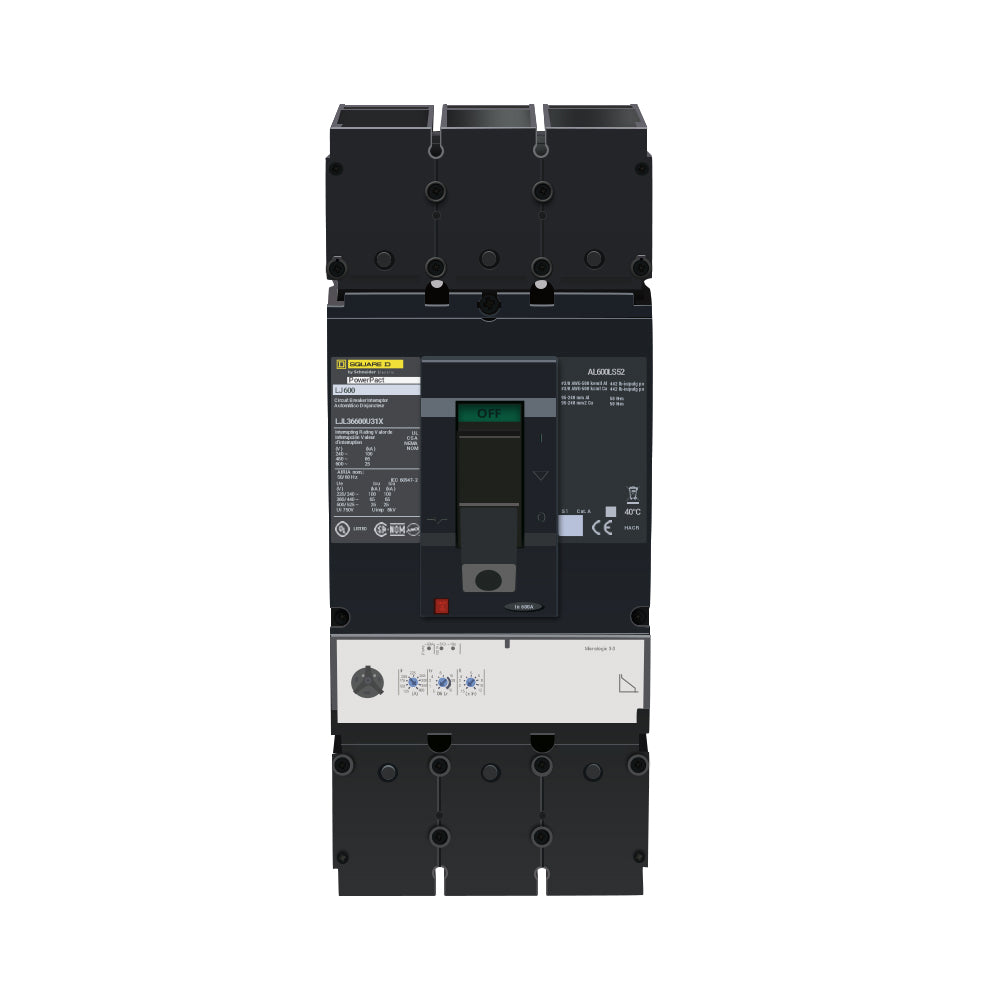

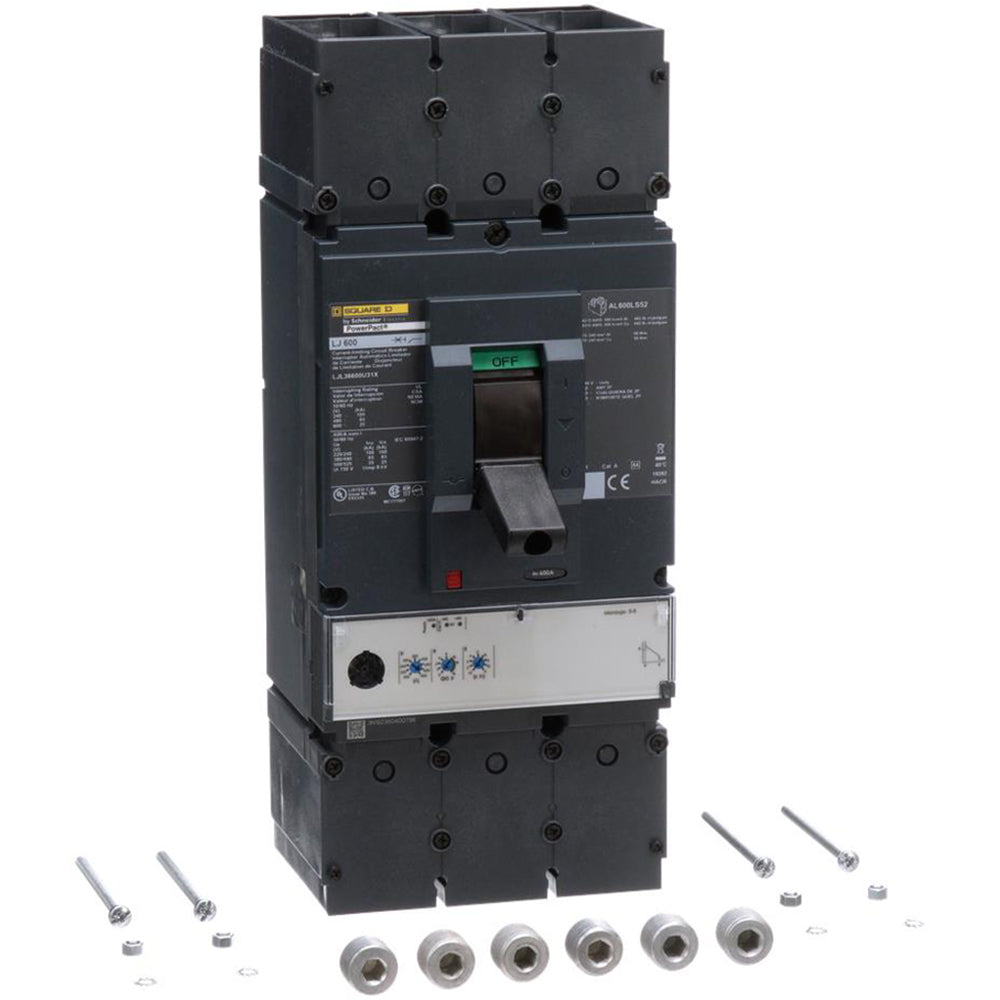

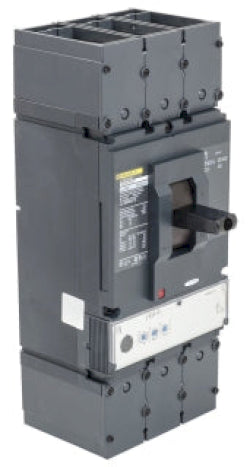

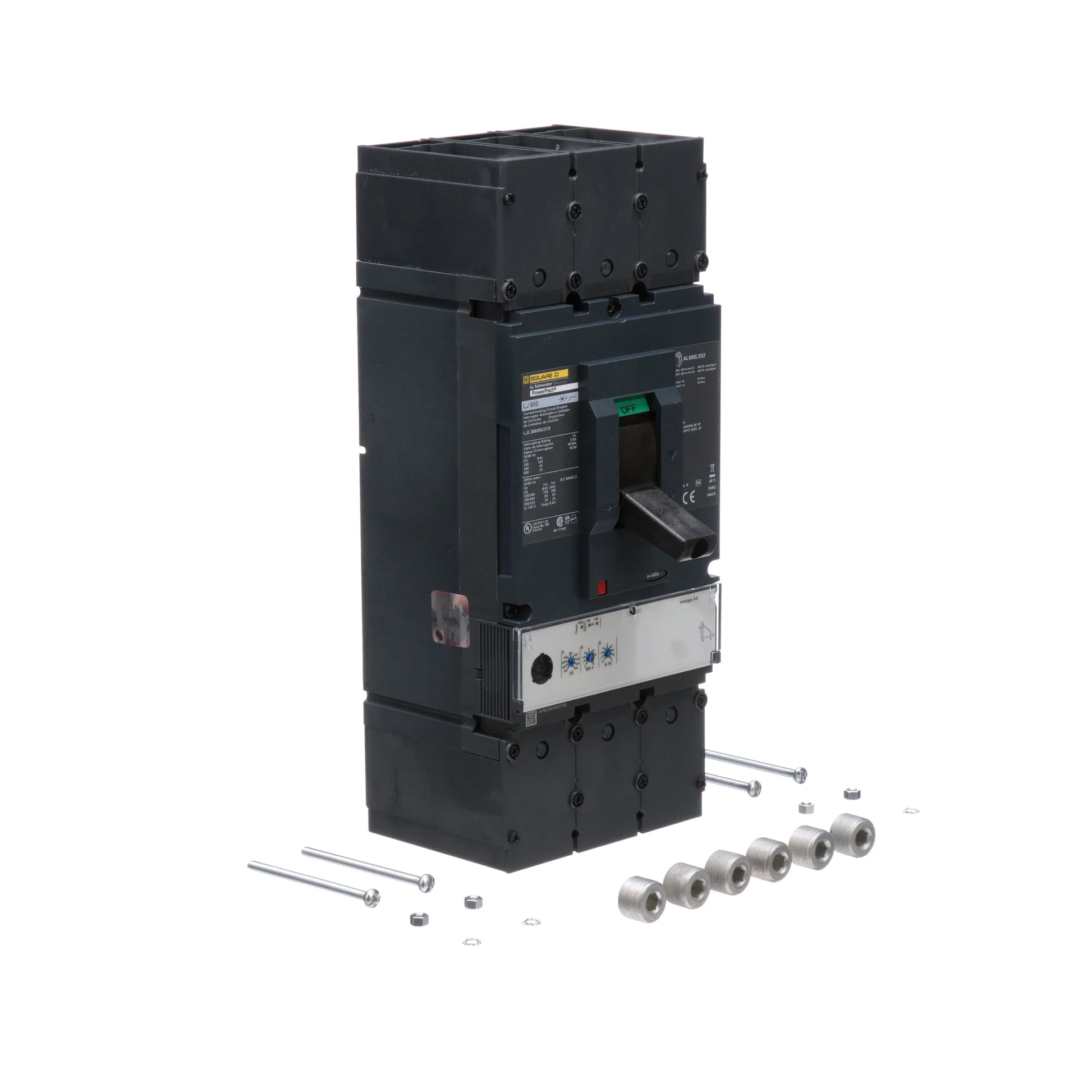

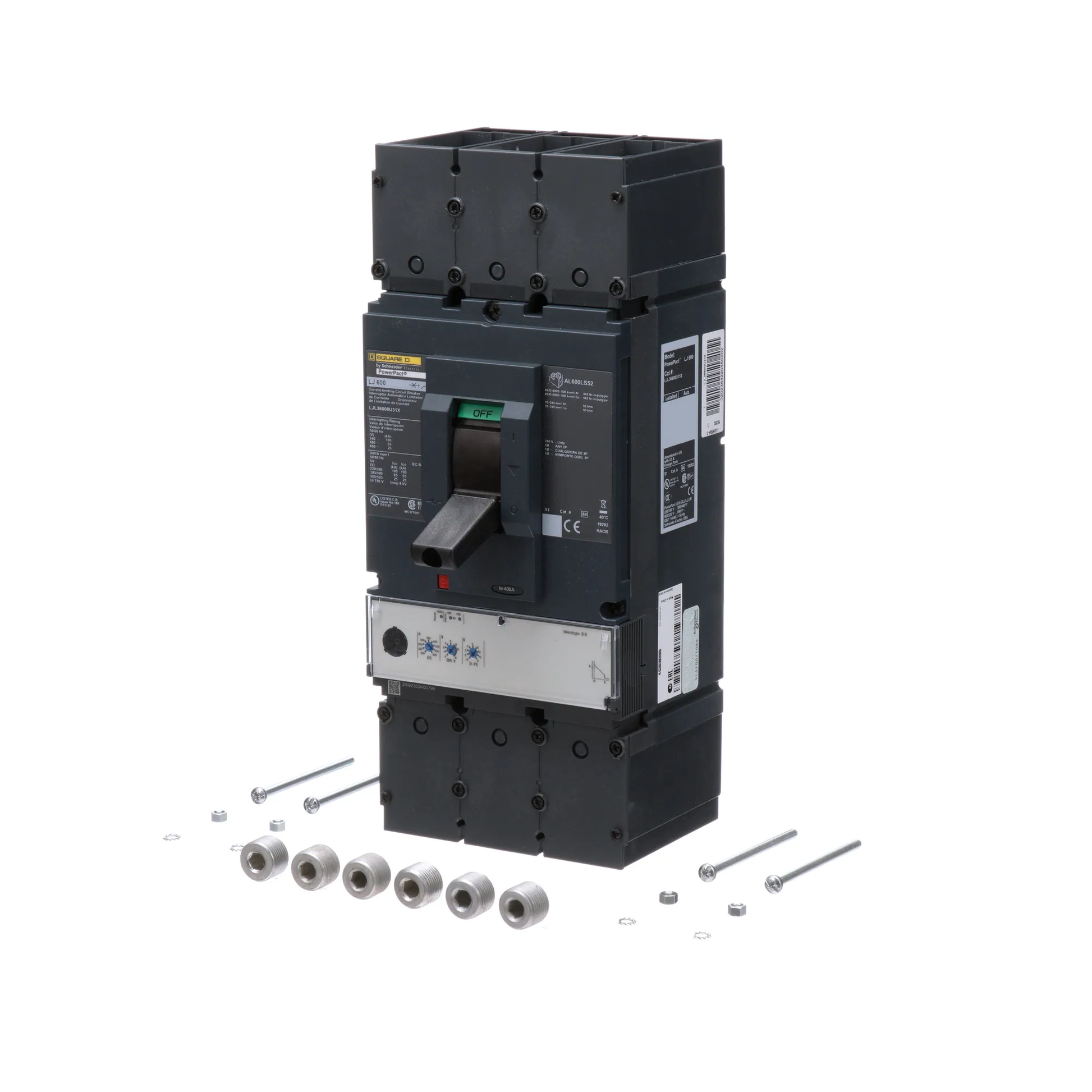

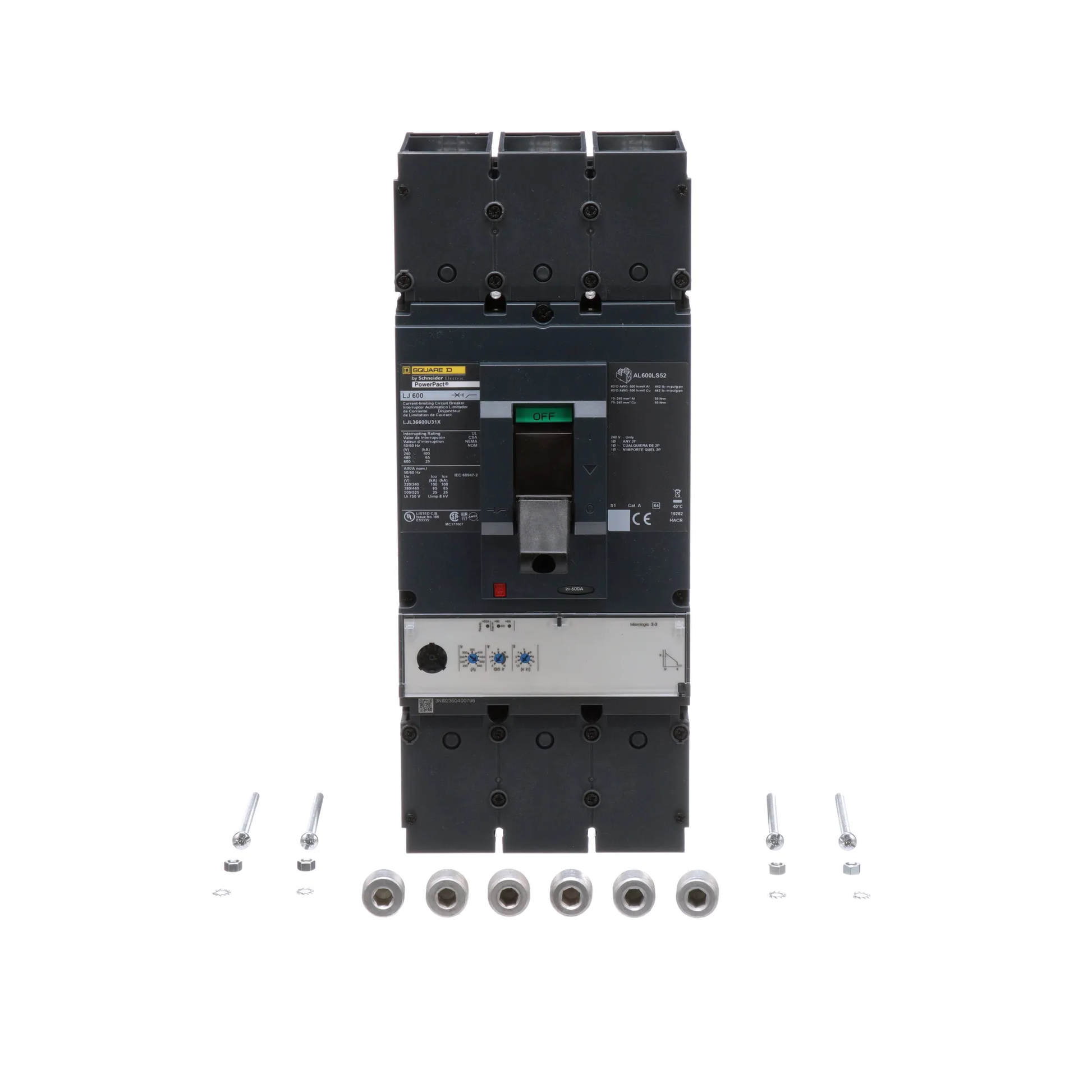

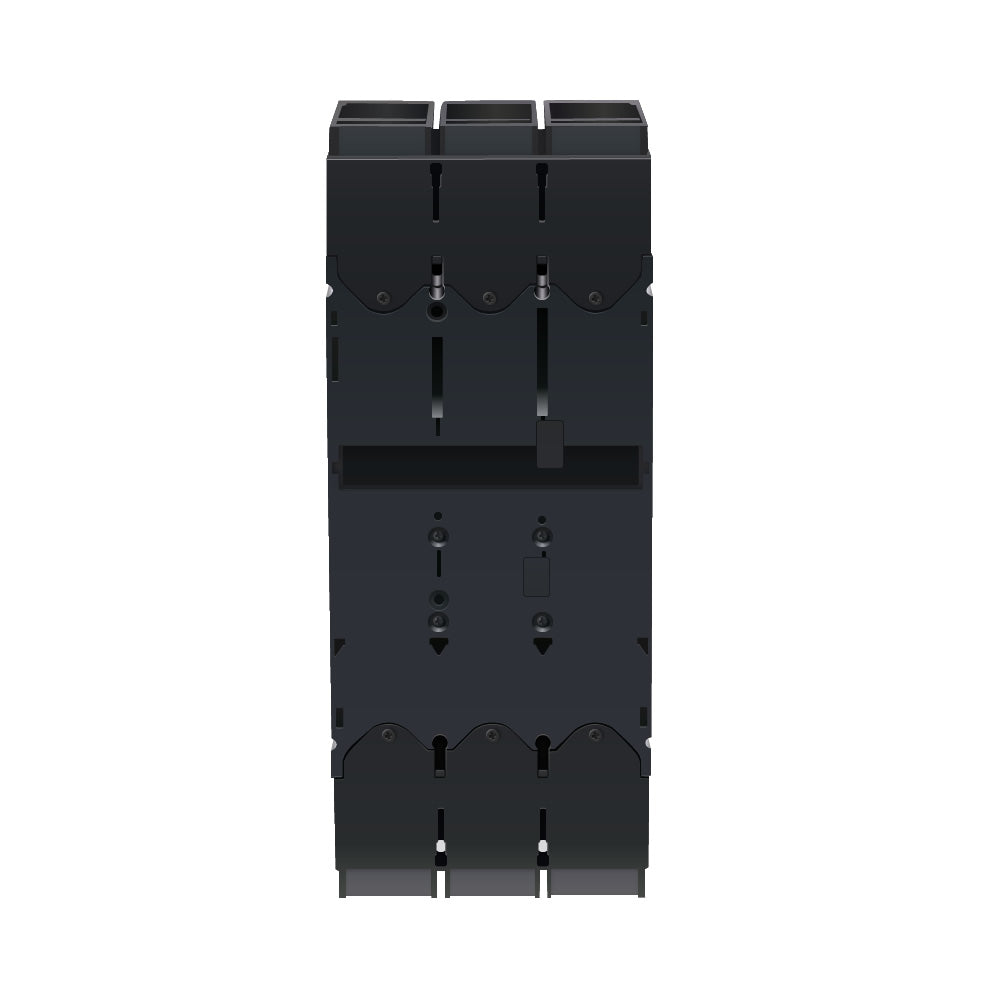

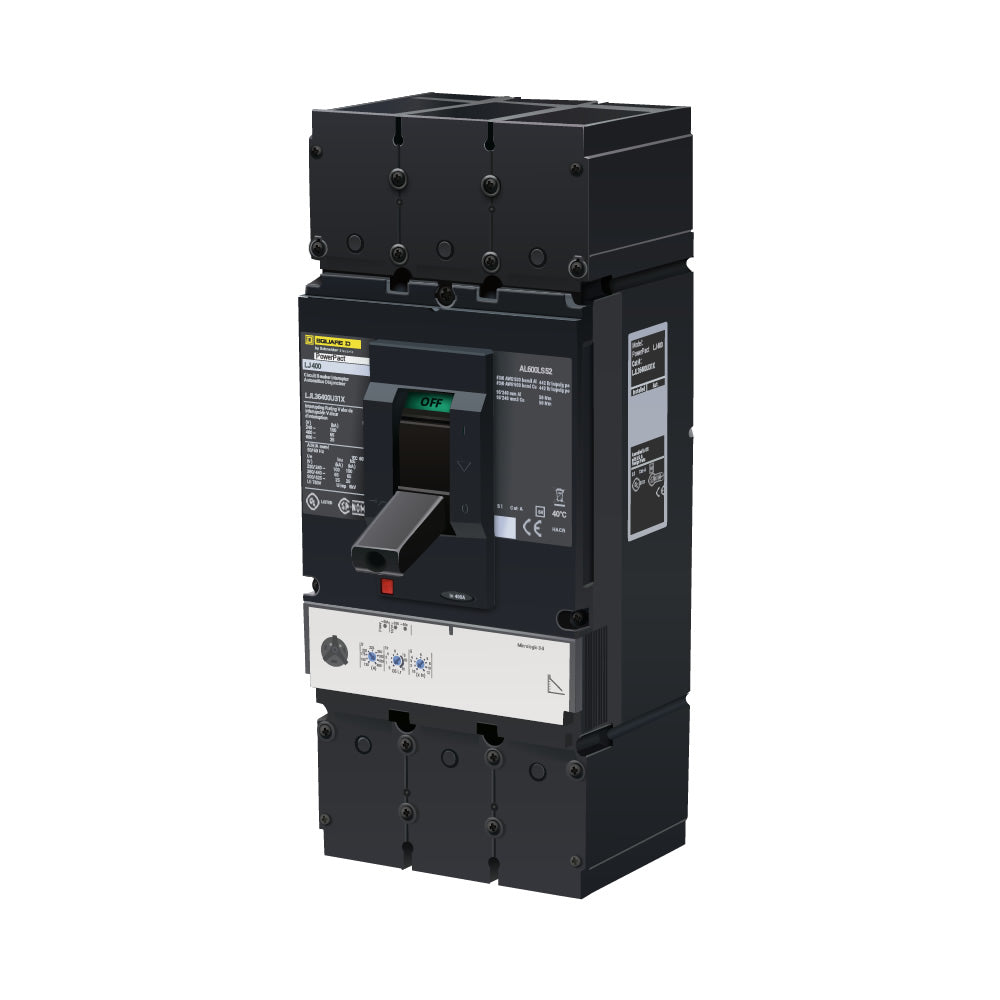

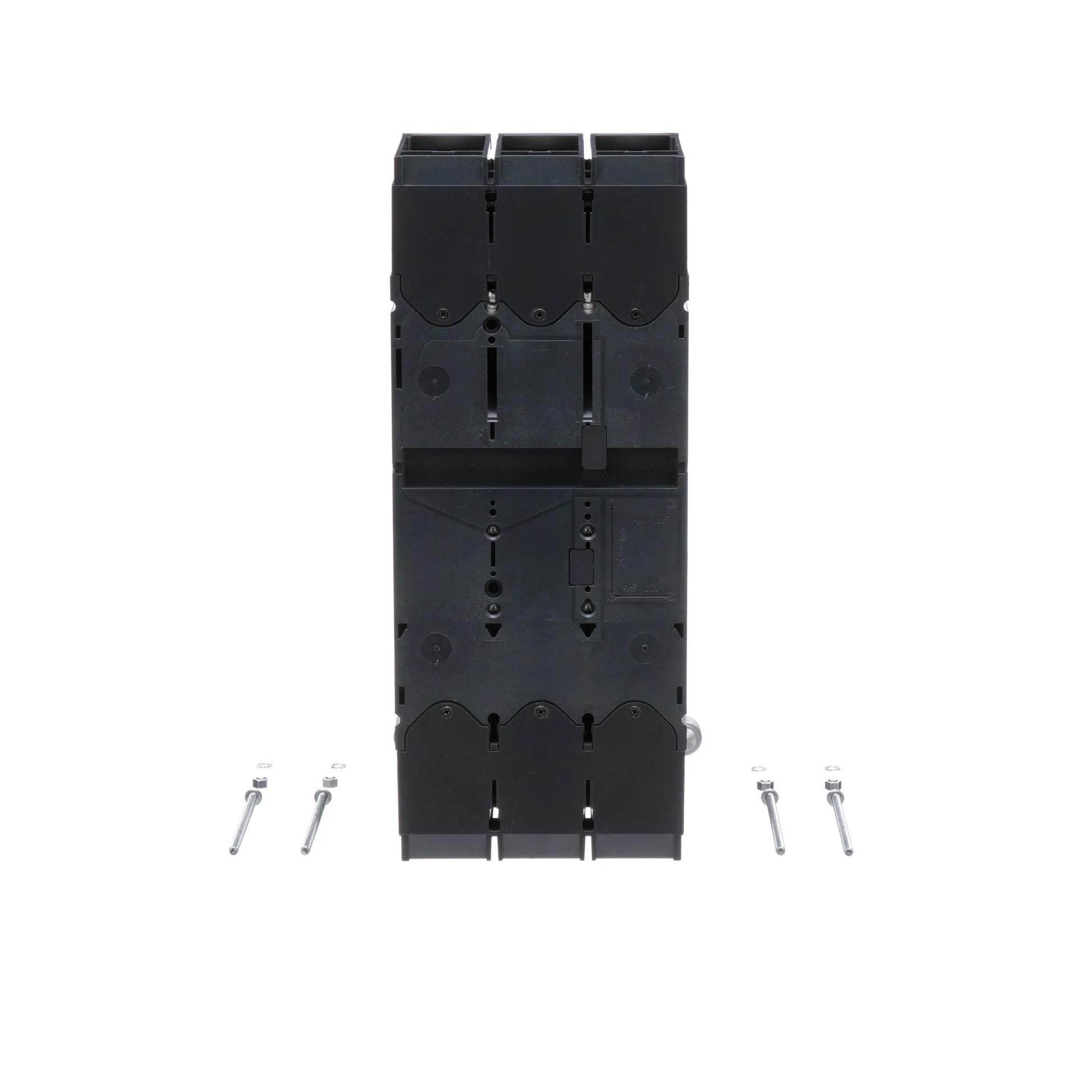

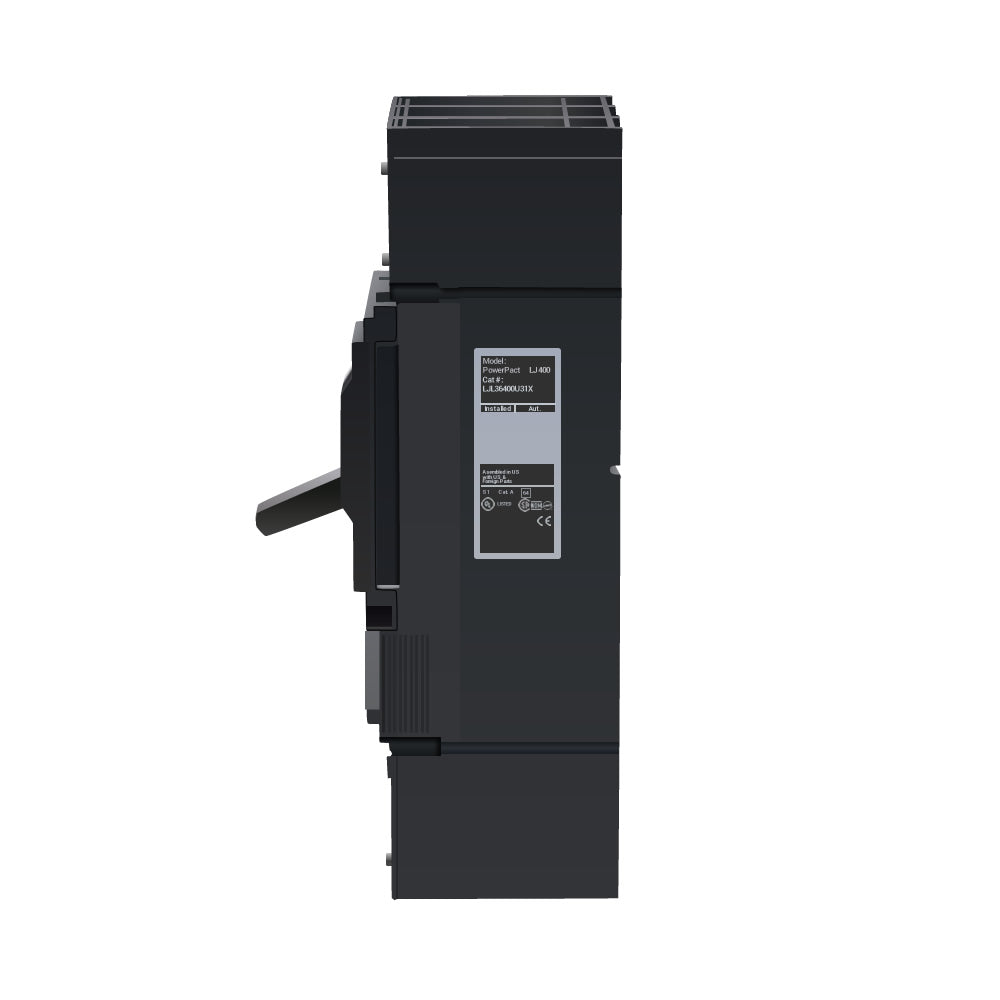

The Square D LJL36600U31X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 65kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection. It comes complete with a 110-130V shunt trip.

Key Features:
✔ Part Number: LJL36600U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LJL
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: L
✔ Wire Size: Min. 2/0 AWG (Cu/Al), Max. 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901891635
✔ GTIN: 00785901891635
✔ Country of Origin: United States

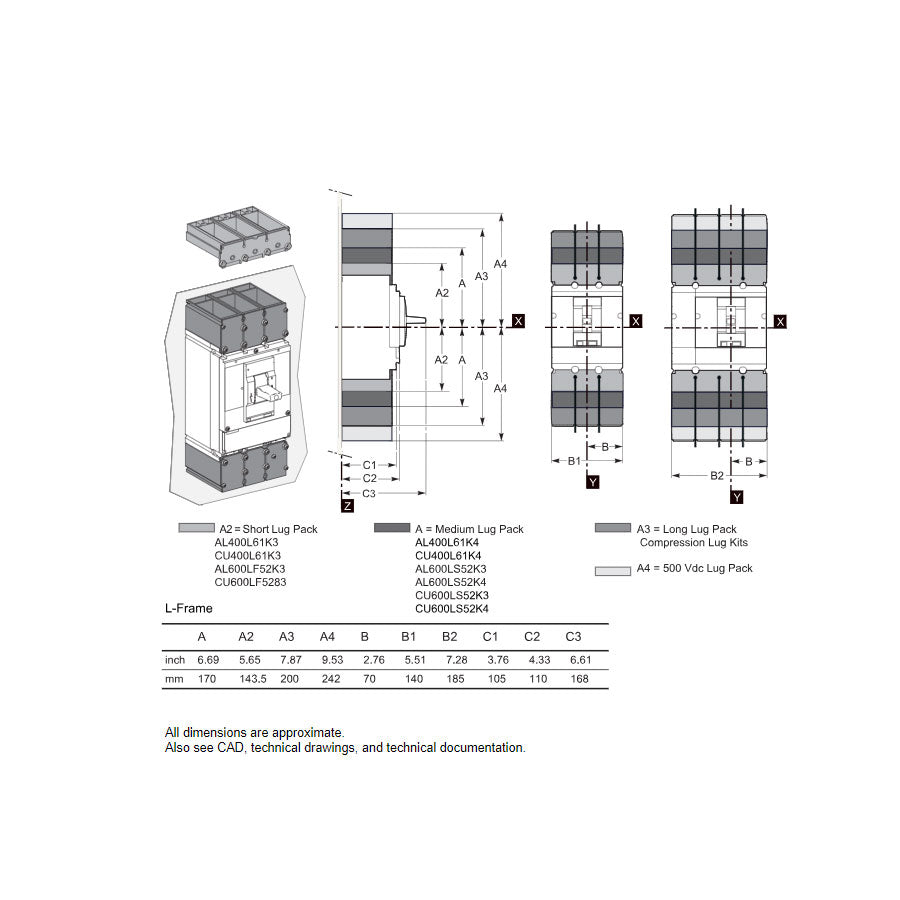

✔ Dimensions: 5.51 in x 13.39 in
✔ Weight: 7.73
✔ Standards: UL, CSA, NEMA, NOM, IEC
✔ Certification: UL, CSA, NEMA, NOM, IEC
