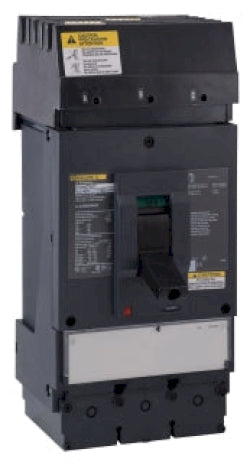

Square D LLA36000S40X Circuit Breaker | 600V 400A 3P 100kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D LLA36000S40X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V voltage rating and 400A amperage capacity. This breaker has an AIC rating of 100kA@480V and uses an I-Line Style Plug-In connection. It provides non-automatic protection and is built for industrial applications.

Key Features:
✔ Part Number: LLA36000S40X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LLA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: NA - No Overcurrent Protection
✔ Frame Size: L Frame
✔ Protection: Non-Automatic
✔ UPC: 785901133391
✔ GTIN: 00785901133391
✔ Country of Origin: United States
✔ Dimensions: Height 13 in (330.20 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 7.71
✔ Certification: CSA - NMX - CCC - UL listed - IEC - CE
✔ Wire Size: 2 x AWG 3/0...500 kcmil (aluminum/copper)
