Square D
Square D LLA36600U33X Circuit Breaker | 600V 600A 3P 100kA@480V I-Line Style Plug-In Powerpact
Square D LLA36600U33X Circuit Breaker | 600V 600A 3P 100kA@480V I-Line Style Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$6,575.84 USD
Regular price
$12,725.00 USD
Sale price
$6,575.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 10 left
Couldn't load pickup availability
Product Description:

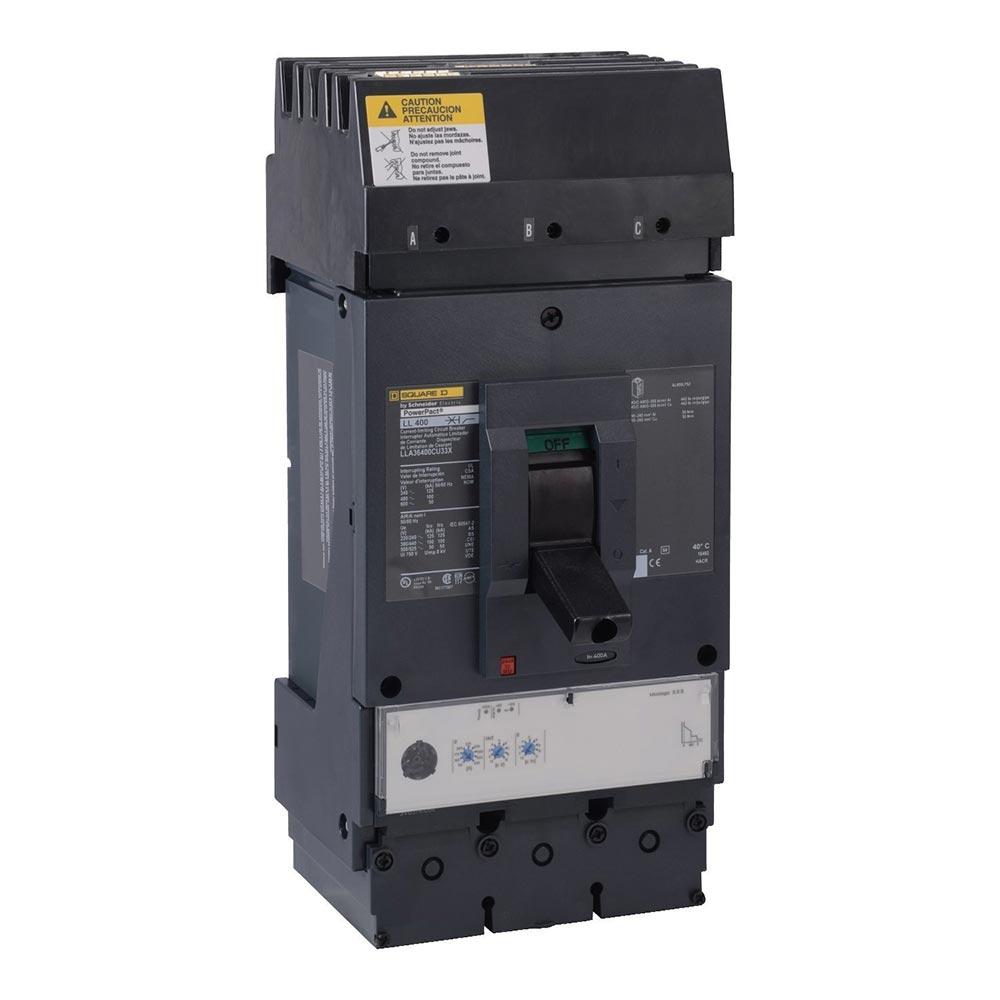

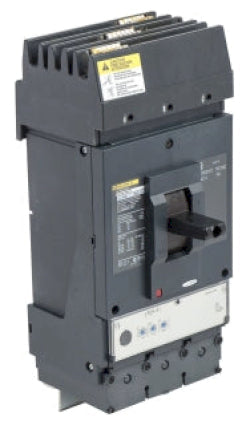

The Square D LLA36600U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 100kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: LLA36600U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LLA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901996521
✔ GTIN: 00785901996521
✔ Country of Origin: United States

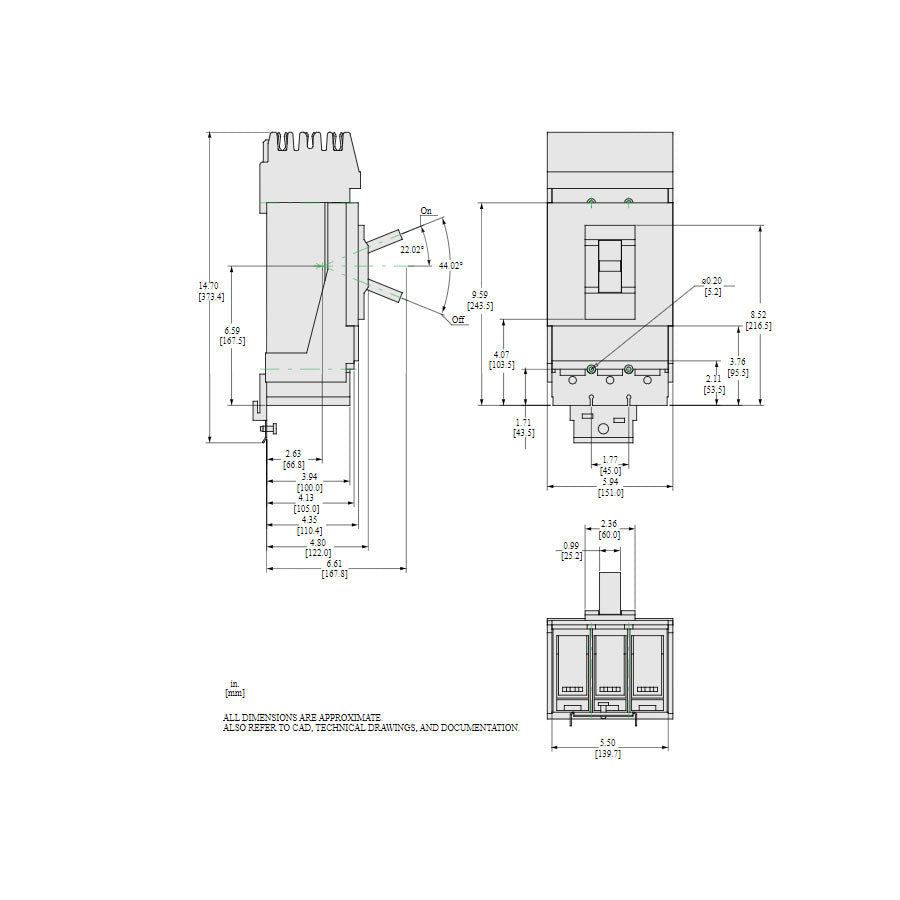

✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 20
✔ Certification: CE-CCC-UL LISTED-CSA-NMX
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
The Square D LLA36600U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 100kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.
Key Features:
✔ Part Number: LLA36600U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LLA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901996521
✔ GTIN: 00785901996521
✔ Country of Origin: United States
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 20
✔ Certification: CE-CCC-UL LISTED-CSA-NMX
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
