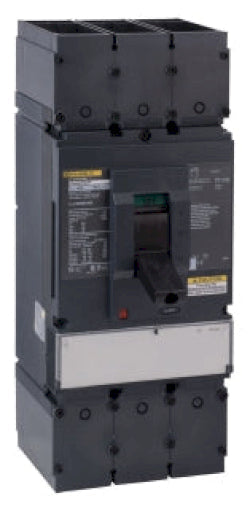

Square D LLL36000S40X Circuit Breaker | 600VAC 400A 3P 100kA@480V Feed-Thru Powerpact

Product Description:
The Square D LLL36000S40X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600V AC and 400 amps, with an interrupting capacity of 100kA at 480V. This unit features a Feed-Thru connection and provides non-automatic protection.

Key Features:
✔ Part Number: LLL36000S40X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LLL
✔ Voltage: 600 AC
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Protection: Non-Automatic
✔ Frame Size: L Frame
✔ UPC: 785901731689
✔ GTIN: 00785901731689
✔ Country of Origin: United States
✔ Dimensions: 5.51 in x 13.38 in
✔ Weight: 6.8
✔ Certification: UL listed - CE - NMX - CCC - CSA - IEC
✔ Wire Size: x AWG 2/0...500 kcmil ( aluminum/copper )
