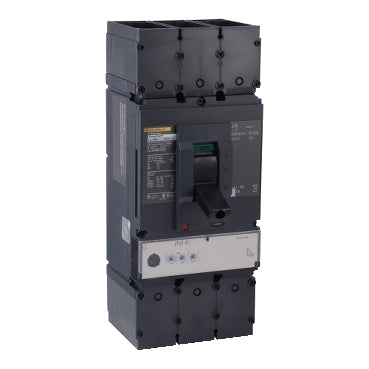

Product Description:
The Square D LLL36400U33X is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 400A rating and a 100kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes solid-state protection with LSI functions. It is designed for use in a wide temperature range of 28-158°F (-2-70°C).
Key Features:
✔ Part Number: LLL36400U33X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LLL
✔ Voltage: 600V
✔ Amperage: 400A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSI (Long-Time, Short-Time, Instantaneous)
✔ Frame Size: L Frame
✔ Temp Rating: 28-158°F (-2-70°C)
✔ UPC: 785901932826
✔ GTIN: 00785901932826
✔ Country of Origin: United States
✔ Dimensions: 13.39 x 3.09 x 4.44 in (340 x 78.49 x 112.78 mm)
✔ Weight: 21 lbs
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
