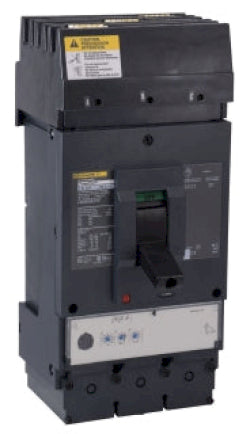

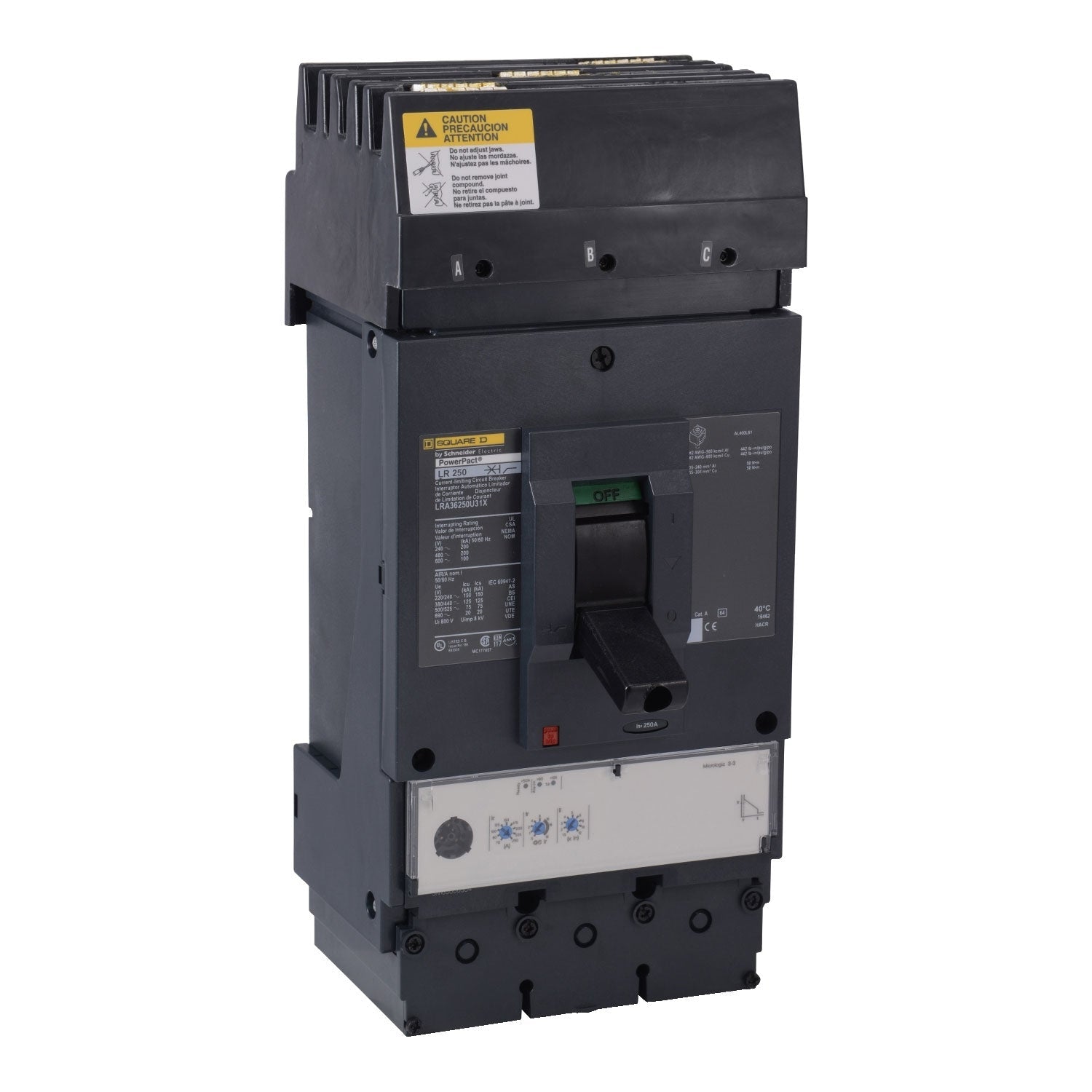

Square D LRA36400U31X Molded Case Circuit Breaker | 600V 400A 3P 200kA@480V I-Line Plug-In Powerpact

Product Description:
The Square D LRA36400U31X is a Molded Case Circuit Breaker from the Powerpact family, designed for robust electrical protection. It features a 3-pole configuration rated for 400 amps and 600 volts, with a high interrupting capacity of 200kA at 480V. This breaker uses an I-Line Style Plug-In connection and includes solid state protection for reliable performance.

Key Features:
✔ Part Number: LRA36400U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LRA
✔ Voltage: 600
✔ Amperage: 400
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901702672
✔ GTIN: 00785901702672
✔ Country of Origin: Mexico
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.35
✔ Certification: UL, CSA, NEMA, NOM, IEC
✔ Wire Size: AWG 3/0...500 kcmil aluminum/copper
