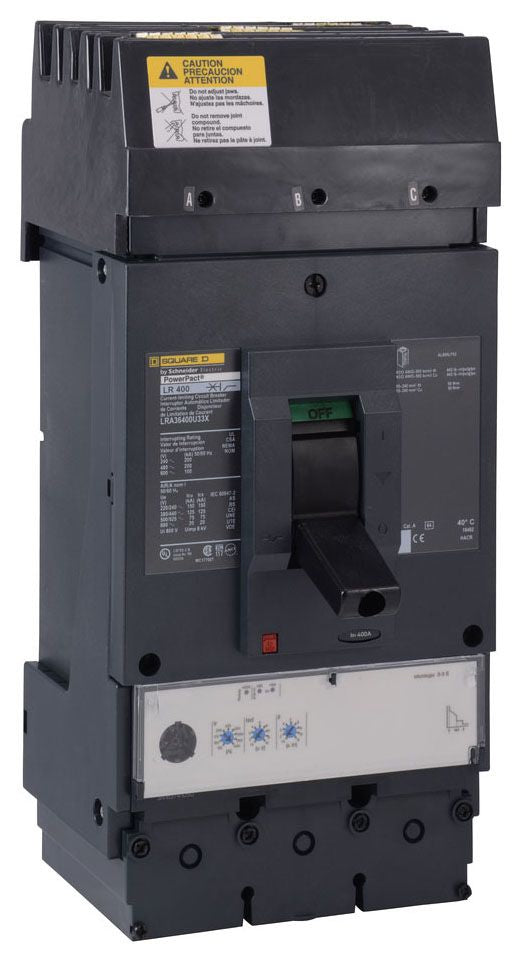

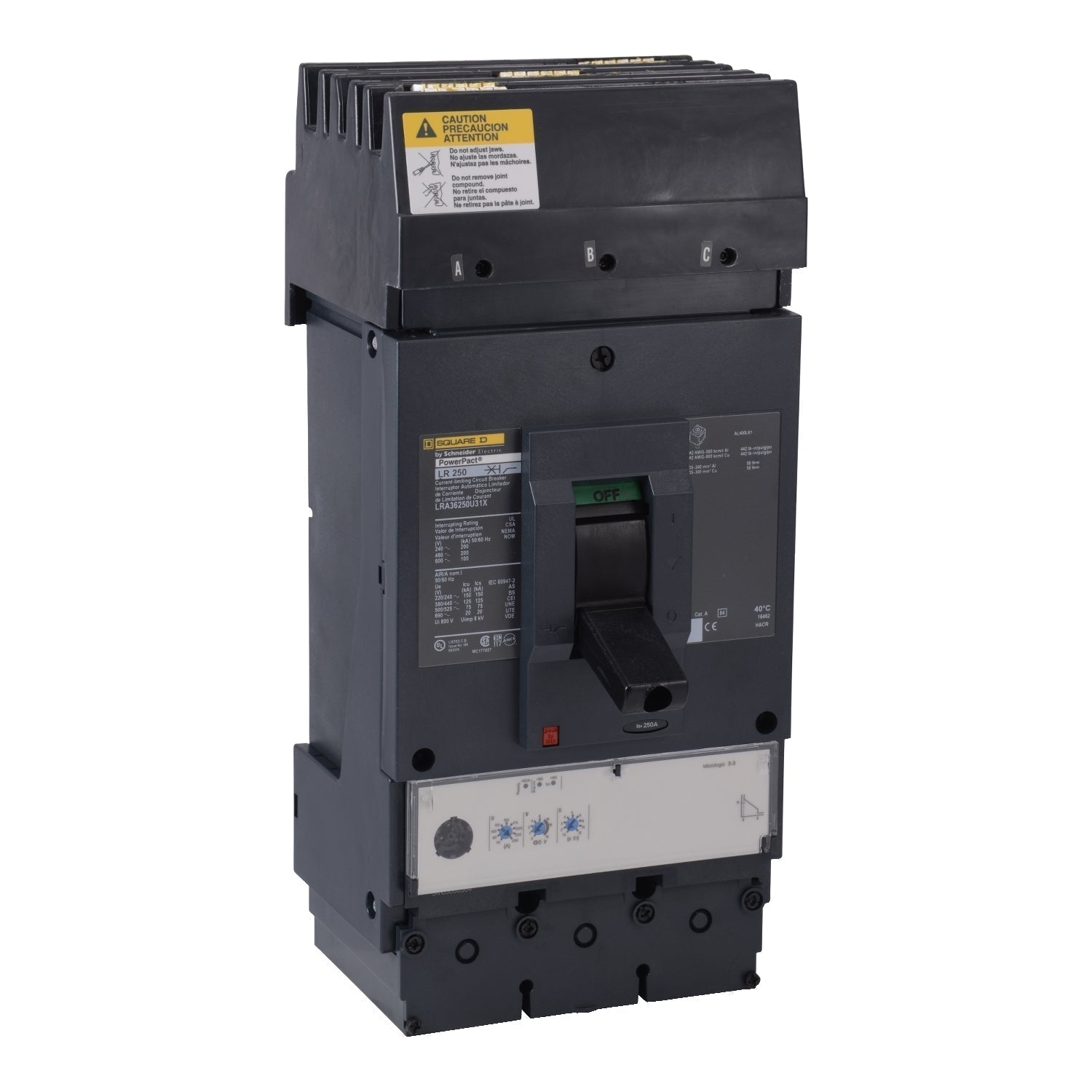

Square D LRA36600U31X Circuit Breaker | 600V 600A 3P 200kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D LRA36600U31X is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 600 amp rating with a 200kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid state protection for reliable performance.

Key Features:
✔ Part Number: LRA36600U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LRA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 200kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 060648628391
✔ GTIN: 03606486283912

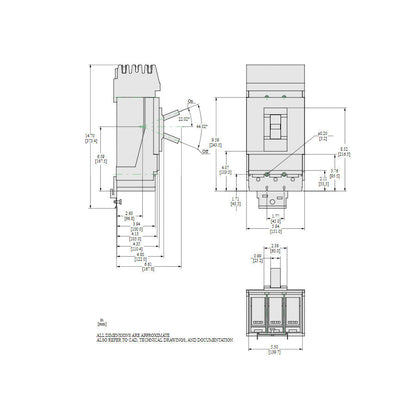

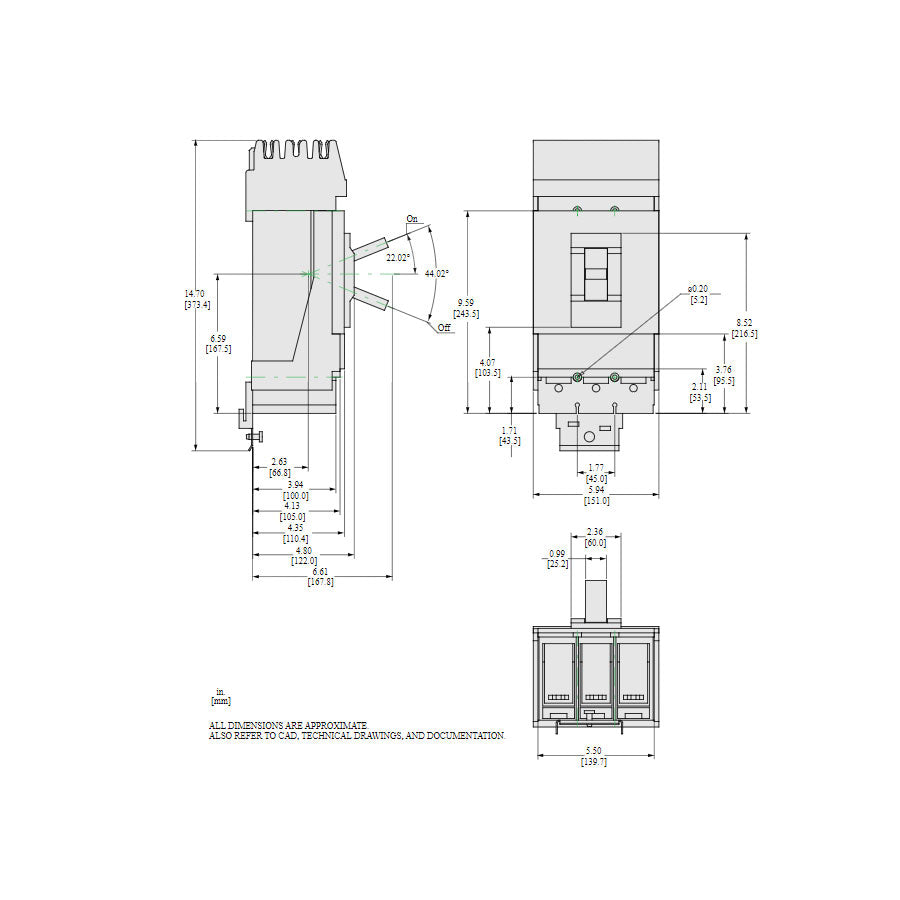

✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.35
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
