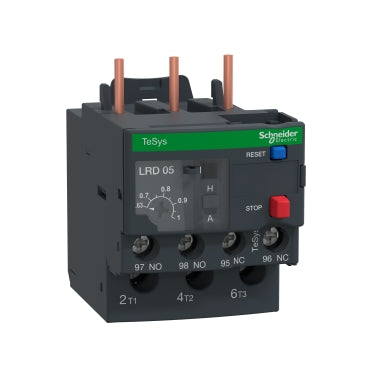

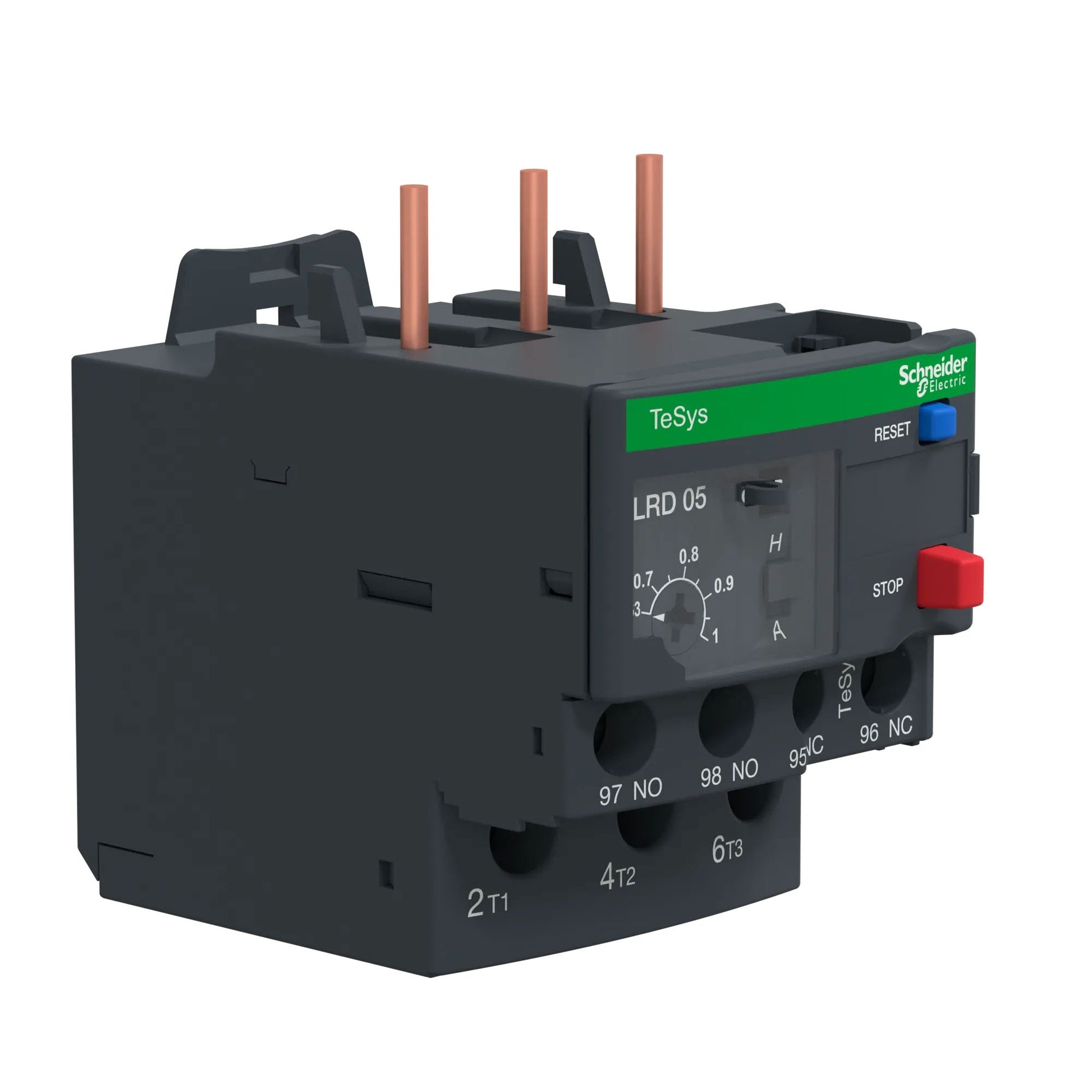

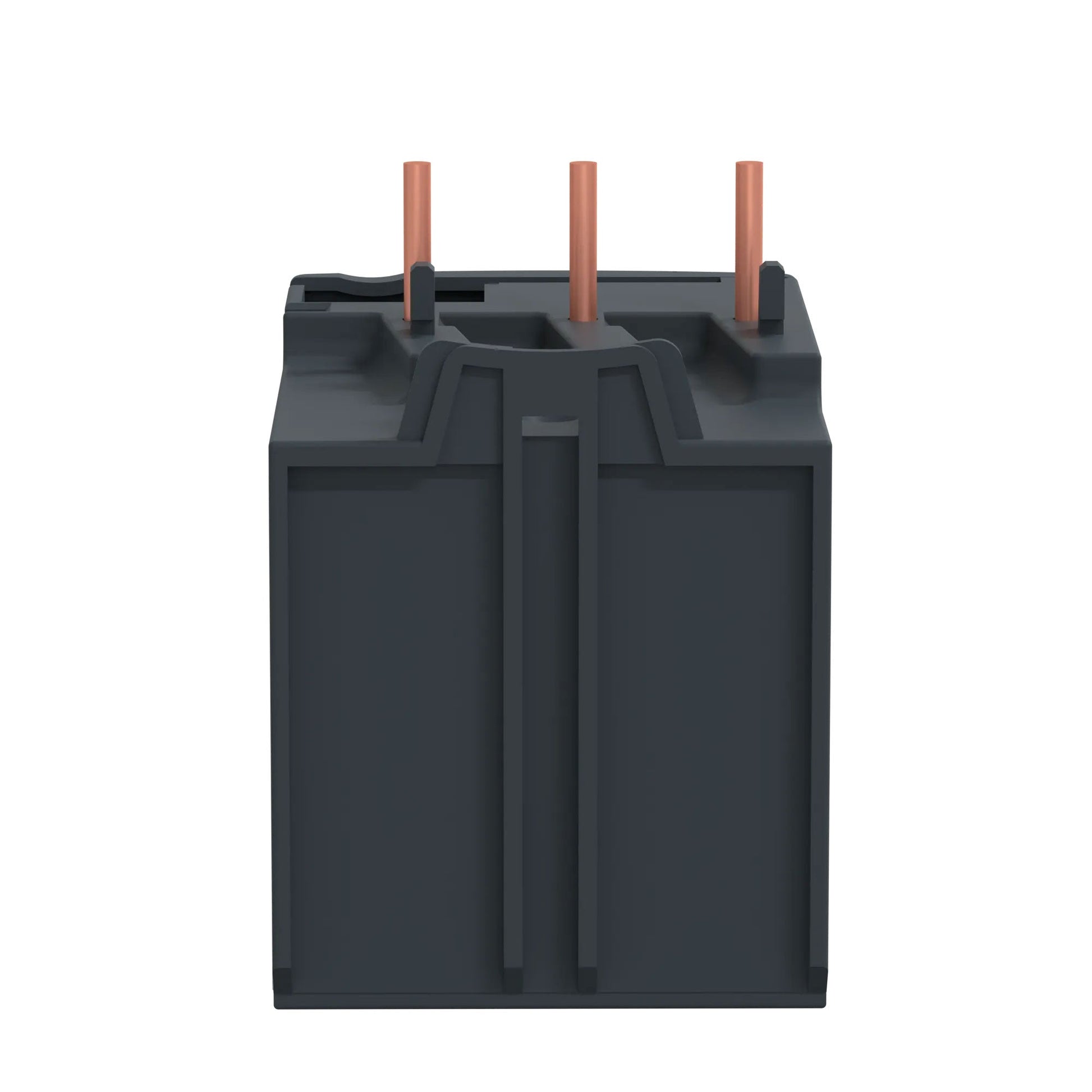

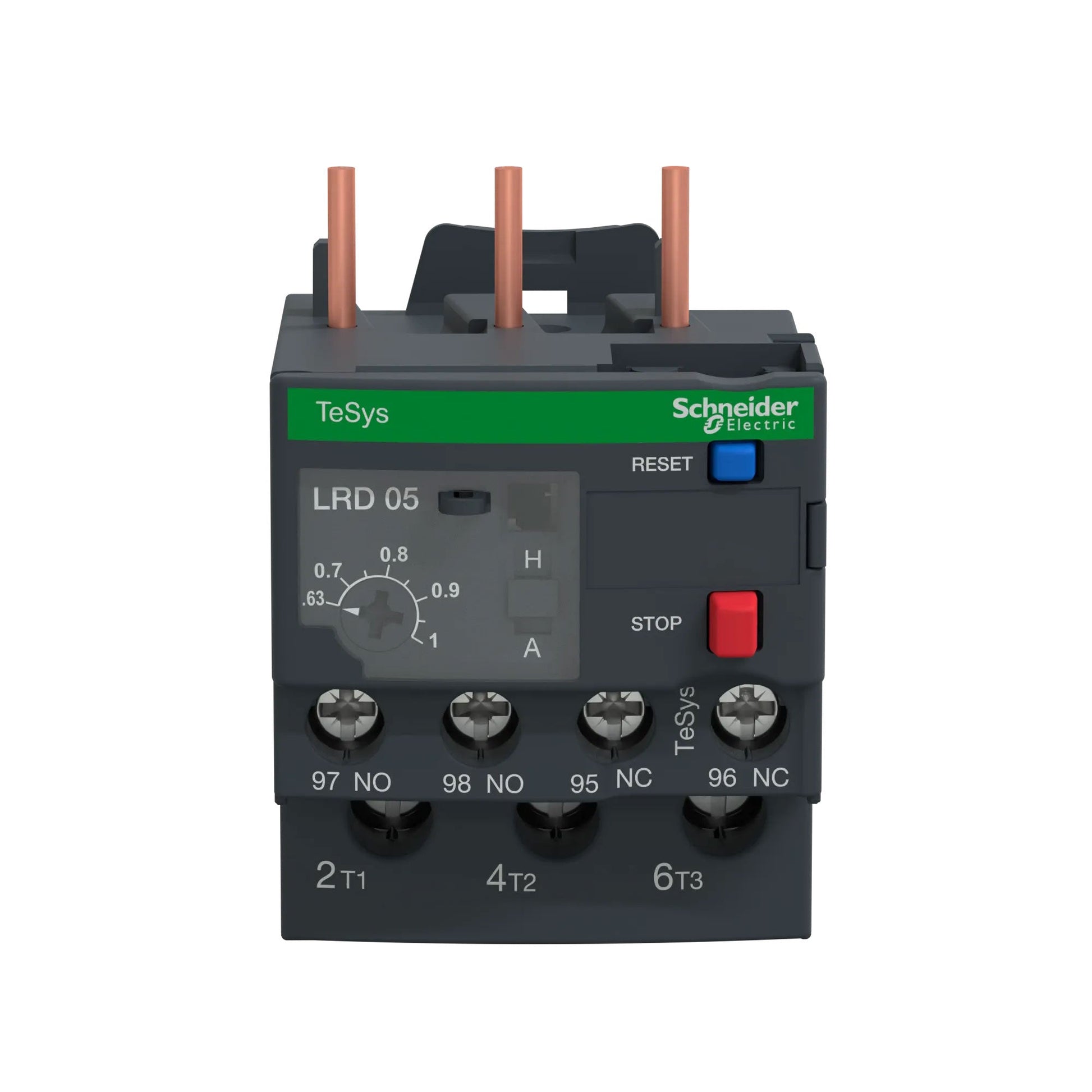

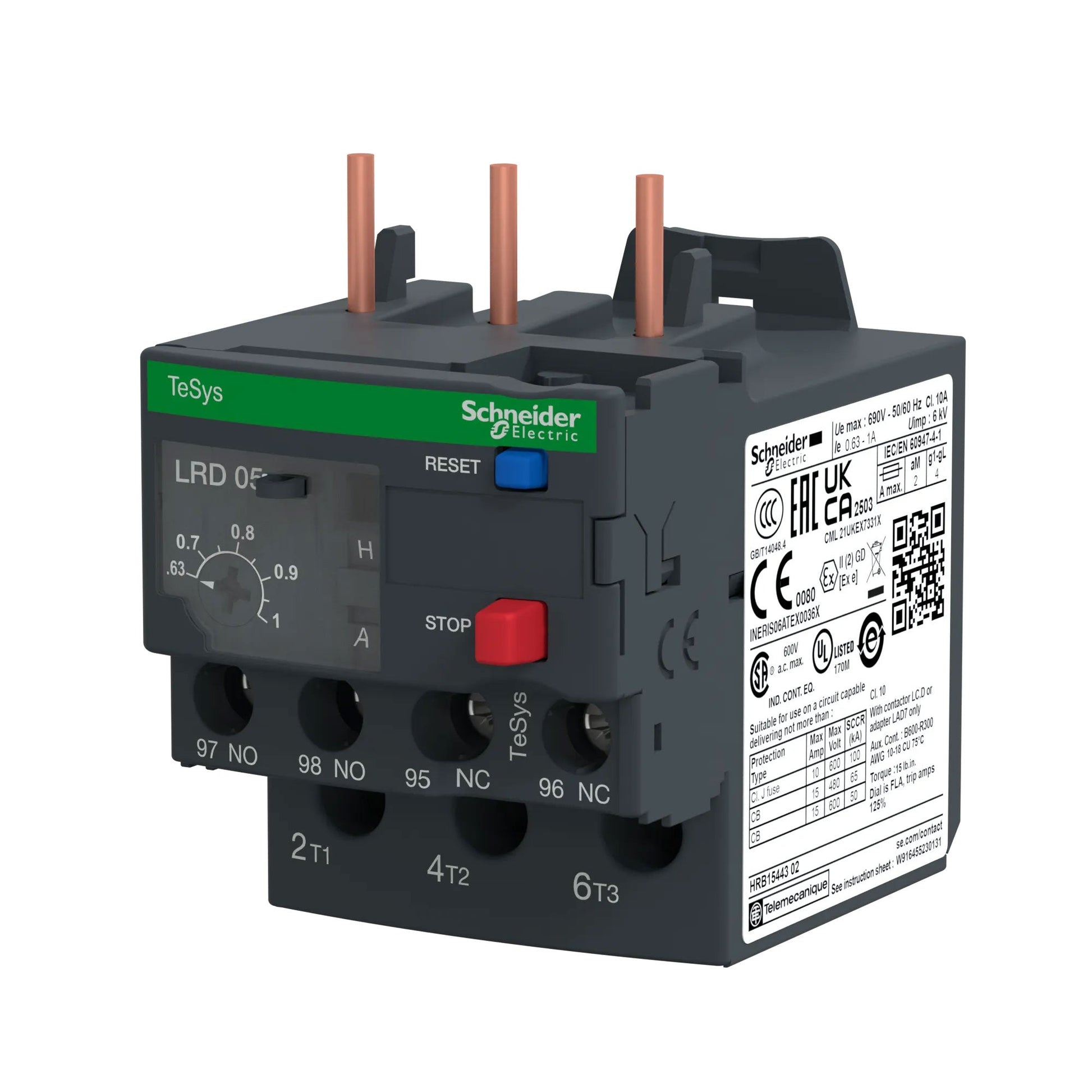

Telemecanique LRD05 Overload Relay | 0.6A-1A TeSys D

Product Description:
The LRD05 is a Telemecanique overload relay designed for motor control applications. It features an adjustable amperage range from 0.6A to 1A, providing precise protection for connected equipment. This thermal relay is part of the TeSys D family and includes one normally open and one normally closed auxiliary contact. It is built to meet multiple international safety and performance standards.

Key Features:
✔ Part Number: LRD05
✔ Manufacturer: Telemecanique
✔ Category: Motor Control
✔ Subcategory: Overload Relay
✔ Family: TeSys D
✔ Type: LRD
✔ Relay Style: Thermal
✔ Aux Contacts: 1NO/1NC
✔ Amperage Maximum: 1
✔ Amperage Minimum: 0.6
✔ UPC: 785901206729
✔ GTIN: 03389110346756
✔ Country of Origin: France
✔ Dimensions: 1.77 in (45 mm) x 2.60 in (66 mm)
✔ Weight: 0.31
✔ Certification: EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1; CSA C22.2 No 60947-4-1; CSA C22.2 No 60947-5-1; GB/T 14048.4; GB/T 14048.5; EN 50495
