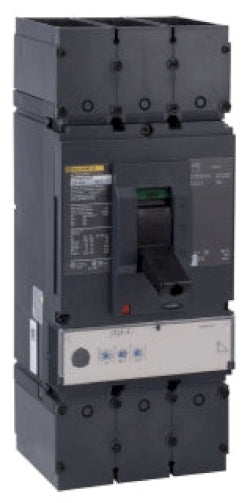

Square D LRL36600U31X Circuit Breaker | 600V 600A 3P 200kA@480V Feed-Thru LRL Powerpact

Product Description:
The Square D LRL36600U31X is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole breaker rated for 600 amps and 600 volts, with an interrupting capacity of 200kA at 480V. This model features solid state protection and a feed-thru connection for reliable performance.

Key Features:
✔ Part Number: LRL36600U31X
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: LRL
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 200kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: L Frame
✔ Protection: Solid State
✔ UPC: 785901702542
✔ GTIN: 00785901702542
✔ Country of Origin: United States
✔ Dimensions: Height 13.39 in (340 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 6.35
✔ Wire Size: 2 x AWG 2/0...500 kcmil aluminum/copper
