Product Description:

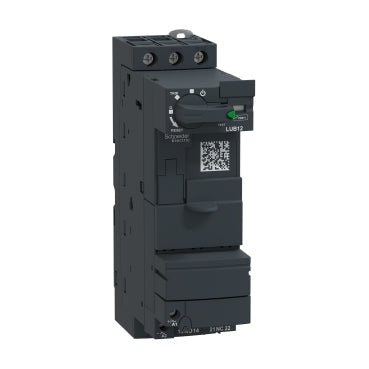

The LUB12 is a Square D TeSys U baseplate kit designed for motor control applications. It supports 12 Amp current and multiple horsepower ratings across different voltage phases. This kit includes auxiliary contacts and is compatible with 110-220 VDC coil voltage. It meets industry certifications for safety and performance.
Key Features:
✔ Part Number: LUB12
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Part And Accessory
✔ Family: TeSys U
✔ Type: LUB
✔ Amperage: 12 Amp
✔ Horse Power: HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 7 1/2 hp
✔ Aux Contacts: 1NO/1NC
✔ Coil Voltage Maximum: 110-220 VDC
✔ UPC: 038911036277
✔ GTIN: 03389110362770
✔ Country of Origin: Mexico
✔ Dimensions: 1.77 in (45 mm) x 6.06 in (154 mm)
✔ Certification: EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier
