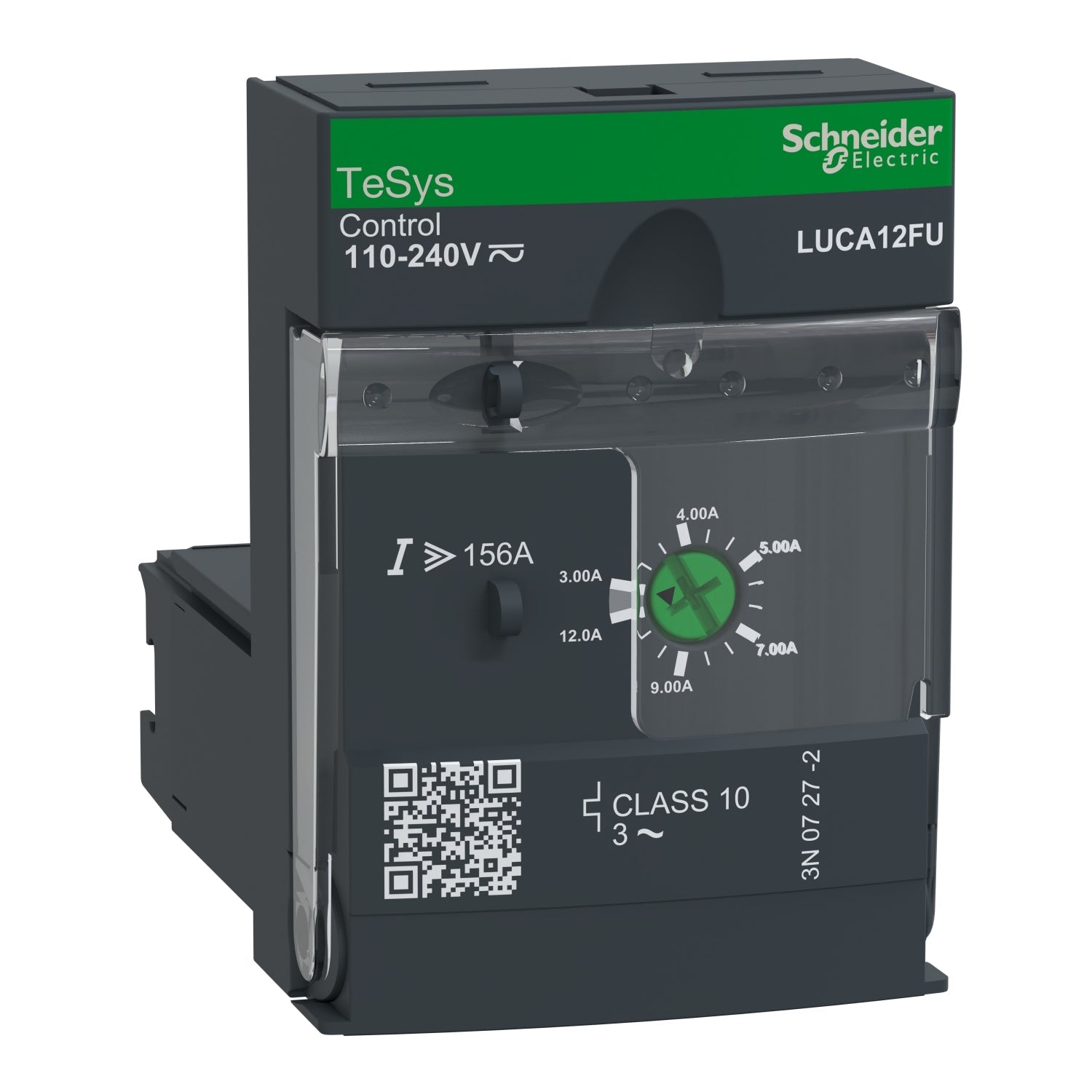

Square D LUCA12FU Motor Starter | 600V 3 Phase 12A 3 Pole 110V Coil

Product Description:
The Square D LUCA12FU is a 3-phase motor starter rated for 600V and 12A. It features a 3-pole design and comes with a 110V coil. Heater packs are required and sold separately for proper operation. This bolt-on starter provides solid-state protection with LSI functions for reliable motor control.

Key Features:
✔ Part Number: LUCA12FU
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Voltage: 600
✔ Amperage: 12
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LSI - Long-Time, Short-Time and Instantaneous
✔ Coil Voltage Maximum: 110-220 VDC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 1
✔ Protection: Solid State
✔ UPC: 3389110364033
✔ GTIN: 03389110364033
✔ Country of Origin: France
✔ Dimensions: 45 mm x 66 mm
✔ Weight: 5
✔ Certification: CSA C22.2 No 60947-4-1, EN 60947-6-2, IEC 60947-6-2, REACH, RoHS, UL Listed 60947-4-1
