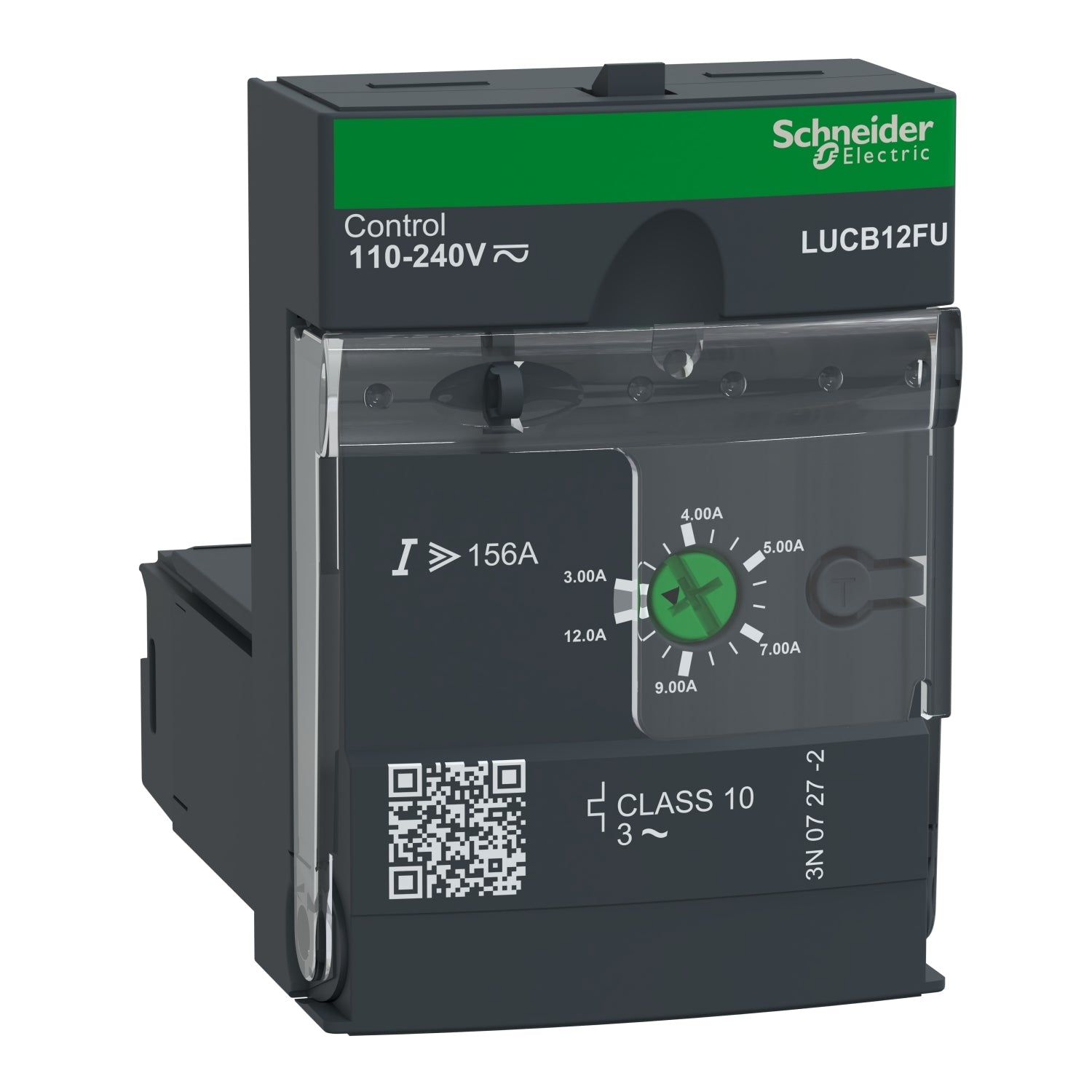

Square D LUCB12FU Motor Starter | 3P 3Ph 12A 110V Coil

Product Description:
The Square D LUCB12FU Motor Starter is designed for 3-phase applications with a 12A rating and 3 poles. It operates on 110-240V AC or 110-220V DC and includes a 110V coil. Heater packs are sold separately for customized thermal protection.

Key Features:
✔ Part Number: LUCB12FU
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Voltage: 110-240 AC/110-220 DC
✔ Amperage: 12
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LSH - Long-Time, Short-Time and High-Range Instantaneous
✔ Coil Voltage Maximum: 110-220 VDC
✔ Coil Voltage Minimum: 110
✔ Nema Rating: 1
✔ Protection: Solid State
✔ UPC: 3389110364439
✔ GTIN: 03389110364439
✔ Country of Origin: France
✔ Dimensions: 45 mm x 66 mm
✔ Weight: 5
✔ Certification: ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
