Square D

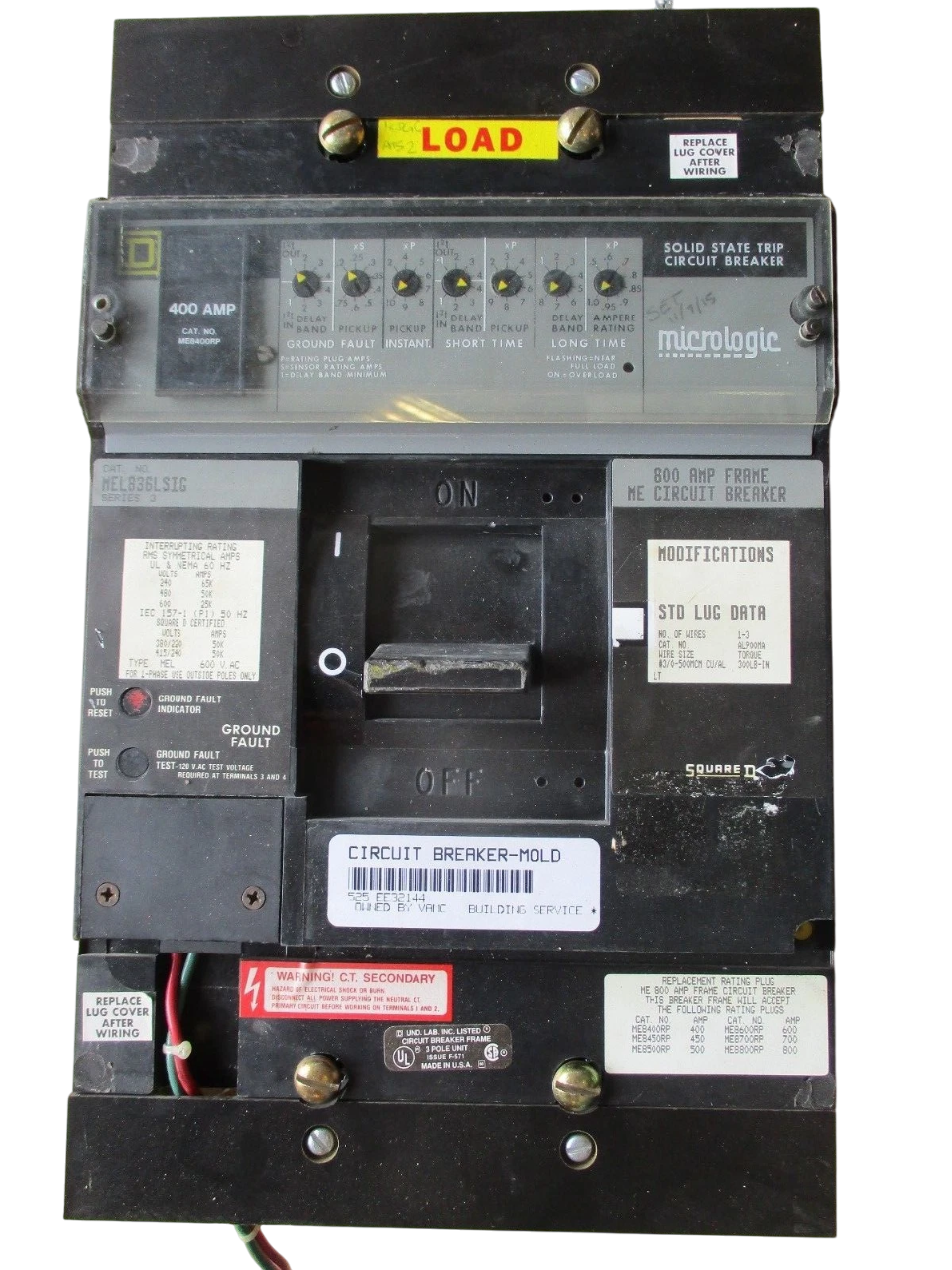

Square D MEL836LSIG Circuit Breaker | 600V 800A 3P 100kA@480V Feed-Thru LSIG Pre-Micrologic
Square D MEL836LSIG Circuit Breaker | 600V 800A 3P 100kA@480V Feed-Thru LSIG Pre-Micrologic
Price:
Sale
Sold out
Regular price
$8,850.82 USD
Regular price
Sale price
$8,850.82 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D MEL836LSIG is a Molded Case Circuit Breaker from the Pre-Micrologic family. It features 3 poles, 600V voltage, and an 800A amperage rating with a 100kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Solid State protection with LSIG functions for comprehensive circuit safety.
Key Features:
✔ Part Number: MEL836LSIG
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Pre-Micrologic
✔ Type: MEL
✔ Voltage: 600
✔ Amperage: 800
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 100kA@480V
✔ Connection: Feed-Thru
✔ Functions: LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
✔ Protection: Solid State
✔ Weight: 75
The Square D MEL836LSIG is a Molded Case Circuit Breaker from the Pre-Micrologic family. It features 3 poles, 600V voltage, and an 800A amperage rating with a 100kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Solid State protection with LSIG functions for comprehensive circuit safety.
