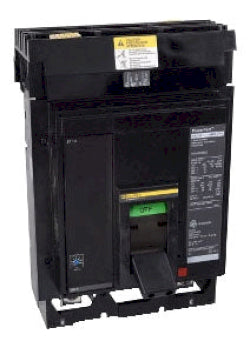

Square D MGA266002 Circuit Breaker | 600V 600A 2P 35kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Square D MGA266002 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 600A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection for reliable performance.

Key Features:
✔ Part Number: MGA266002
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGA
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: M
✔ Wire Size: Min. (3) 3/0 AWG (Cu/Al), Max. (3) 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ Phase Connection: AC
✔ UPC: 785901495888
✔ GTIN: 00785901495888
✔ Country of Origin: United States
✔ Dimensions: 8.27 in x 12.86 in
✔ Weight: 11.95
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Certification: UL, CSA, NEMA, NOM, CE
