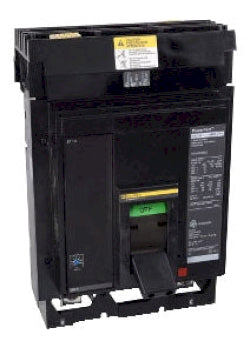

Square D MGA36300 Circuit Breaker | Powerpact MGA 600V 300A
Square D MGA36300 Circuit Breaker | Powerpact MGA 600V 300A
Price:
Sale
Sold out
Regular price
$4,049.20 USD
Regular price
$8,161.00 USD
Sale price
$4,049.20 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 8 left
Couldn't load pickup availability
Product Description:
The Square D MGA36300 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 300A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes solid-state protection. It is UL, CSA, NEMA, NOM, and CE certified for safety and compliance.
Key Features:
✔ Part Number: MGA36300
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGA
✔ Voltage: 600V
✔ Amperage: 300A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Solid State
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: M
✔ Min. Wire Size: 3/0 AWG (Cu/Al)
✔ Max. Wire Size: 500 kcmil (Cu/Al)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785
