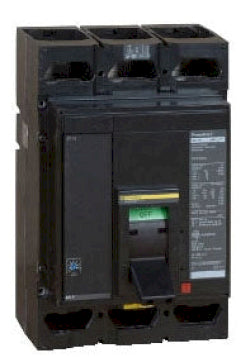

Square D MGF36600 Circuit Breaker | 600V 600A 3P 35kA@480V Bolt-On Powerpact

Product Description:
The Square D MGF36600 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 600 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This model features a bolt-on connection and solid state protection for reliable performance.

Key Features:
✔ Part Number: MGF36600
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGF
✔ Voltage: 600
✔ Amperage: 600
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Busbar Connection
✔ Frame Size: M
✔ MCM Size: Min. Wire Size (3) 3/0 AWG (Cu/Al) Max. Wire Size (3) 500 kcmil (Cu/Al)
✔ Protection: Solid State
✔ UPC: 785901582694
✔ GTIN: 00785901582694
✔ Country of Origin: Mexico
✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 12.54
✔ Standards: UL, CSA, NEMA, NOM, CE
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
