Square D MGF36800 Circuit Breaker | 600V 800A 3P 35kA@480V Bolt-On Powerpact MGF

Product Description:
The Square D MGF36800 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 800 amp breaker rated for 600 volts with an AIC rating of 35kA at 480V. This model features a bolt-on connection and solid state protection for reliable performance.

Key Features:
✔ Part Number: MGF36800
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGF
✔ Voltage: 600
✔ Amperage: 800
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: M Frame
✔ Protection: Solid State
✔ UPC: 078590147702
✔ GTIN: 00785901477020

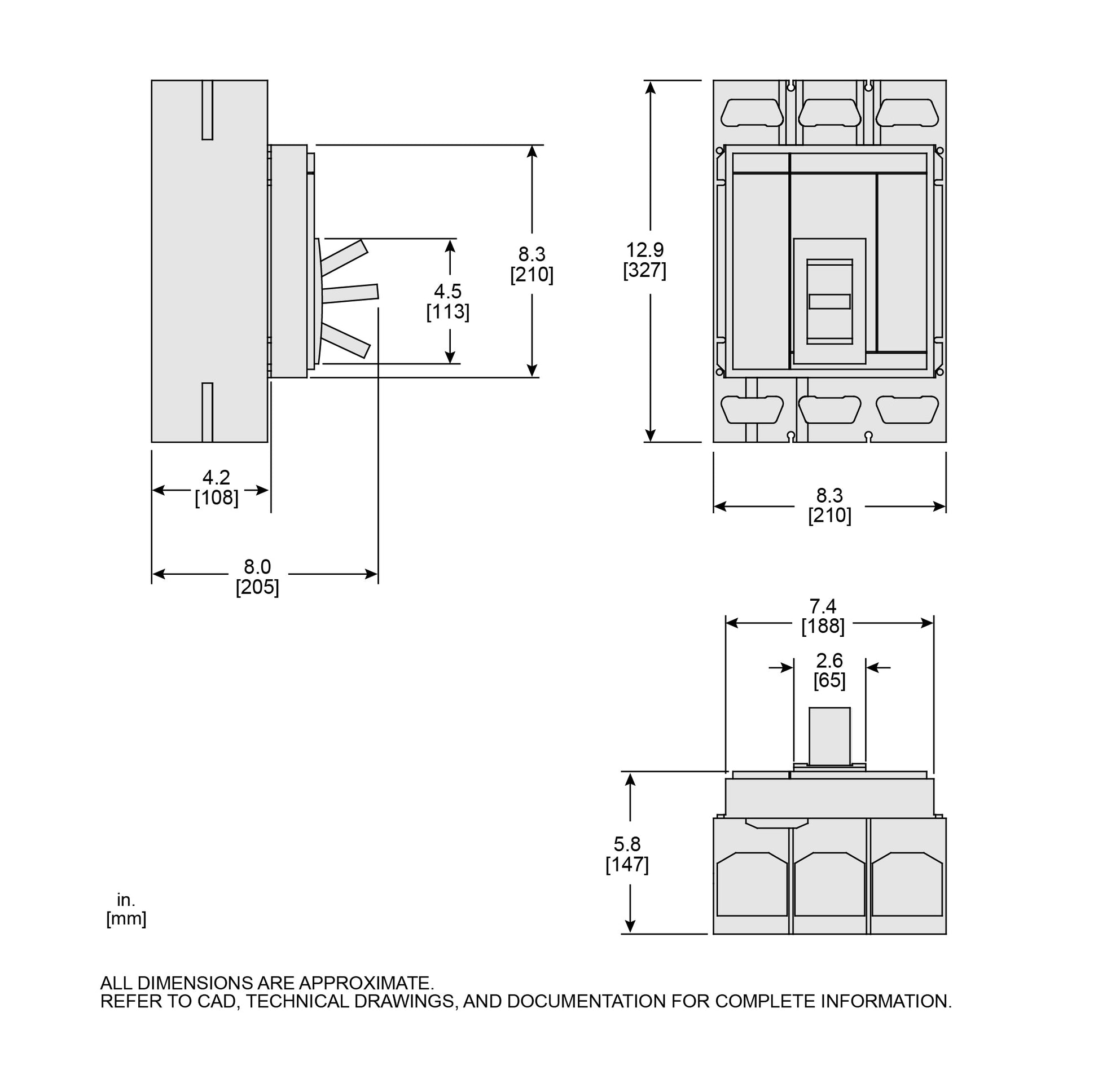

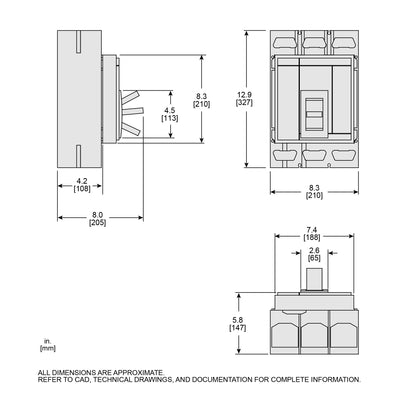

✔ Dimensions: Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 12.7
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
