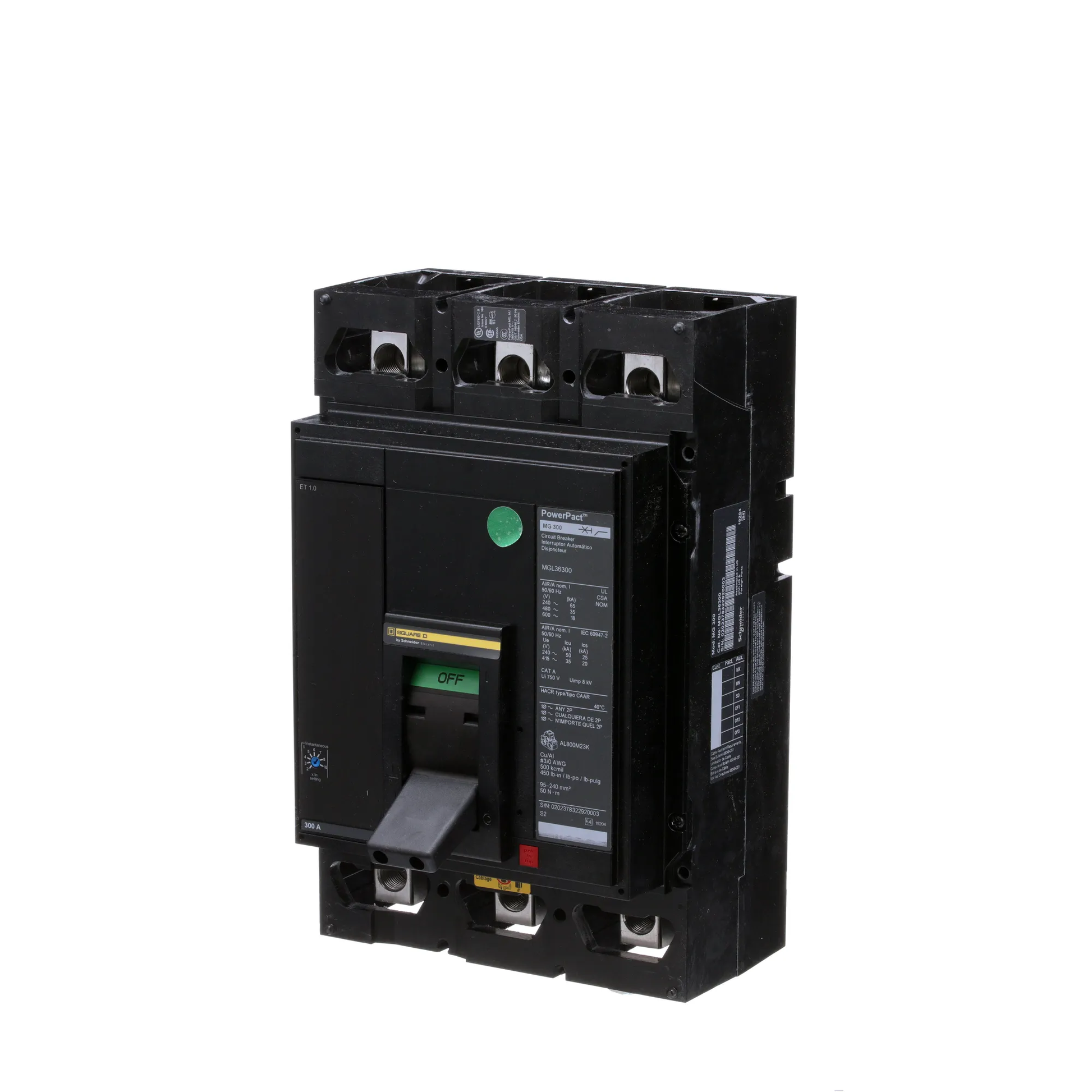

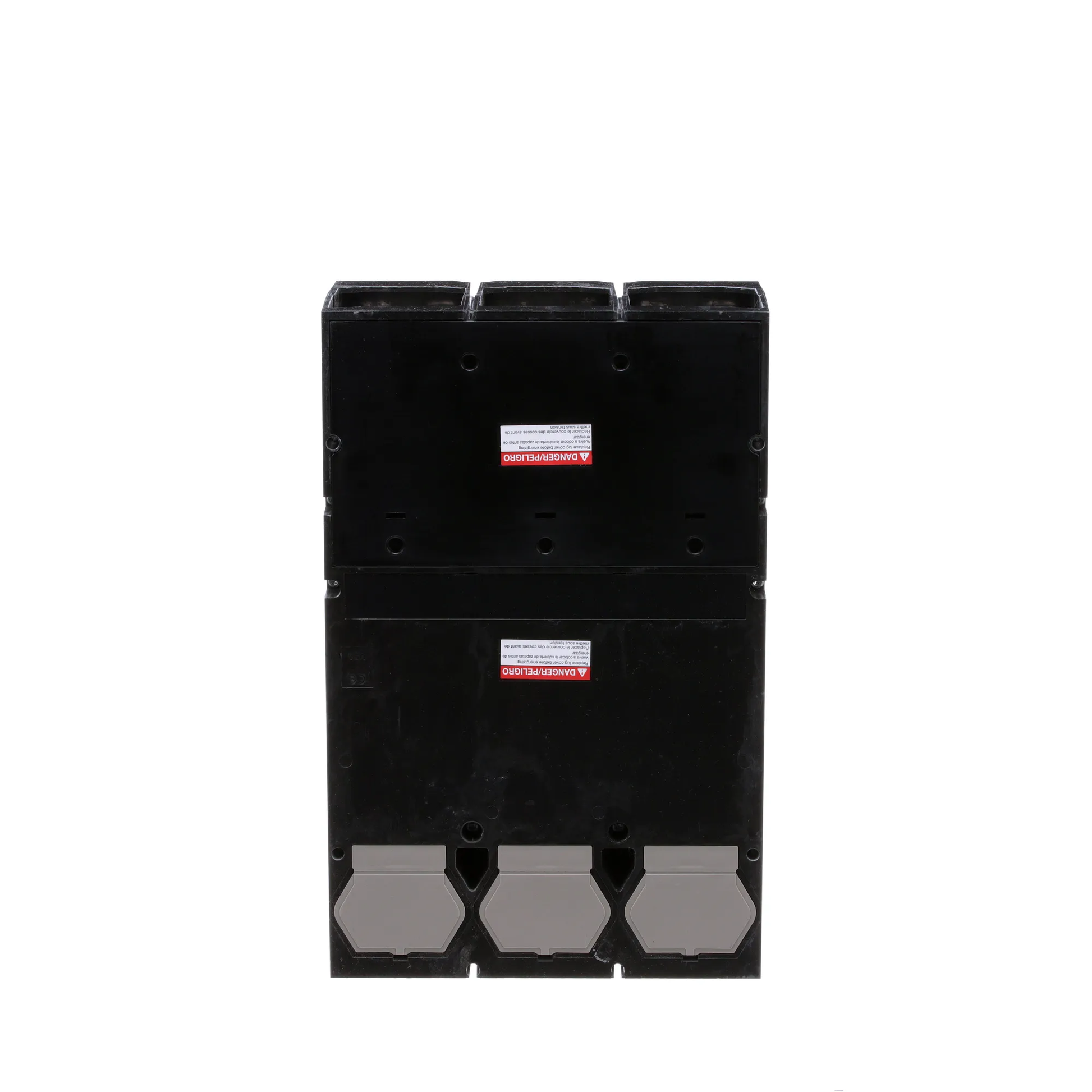

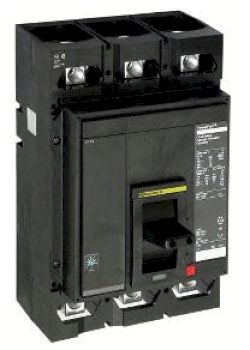

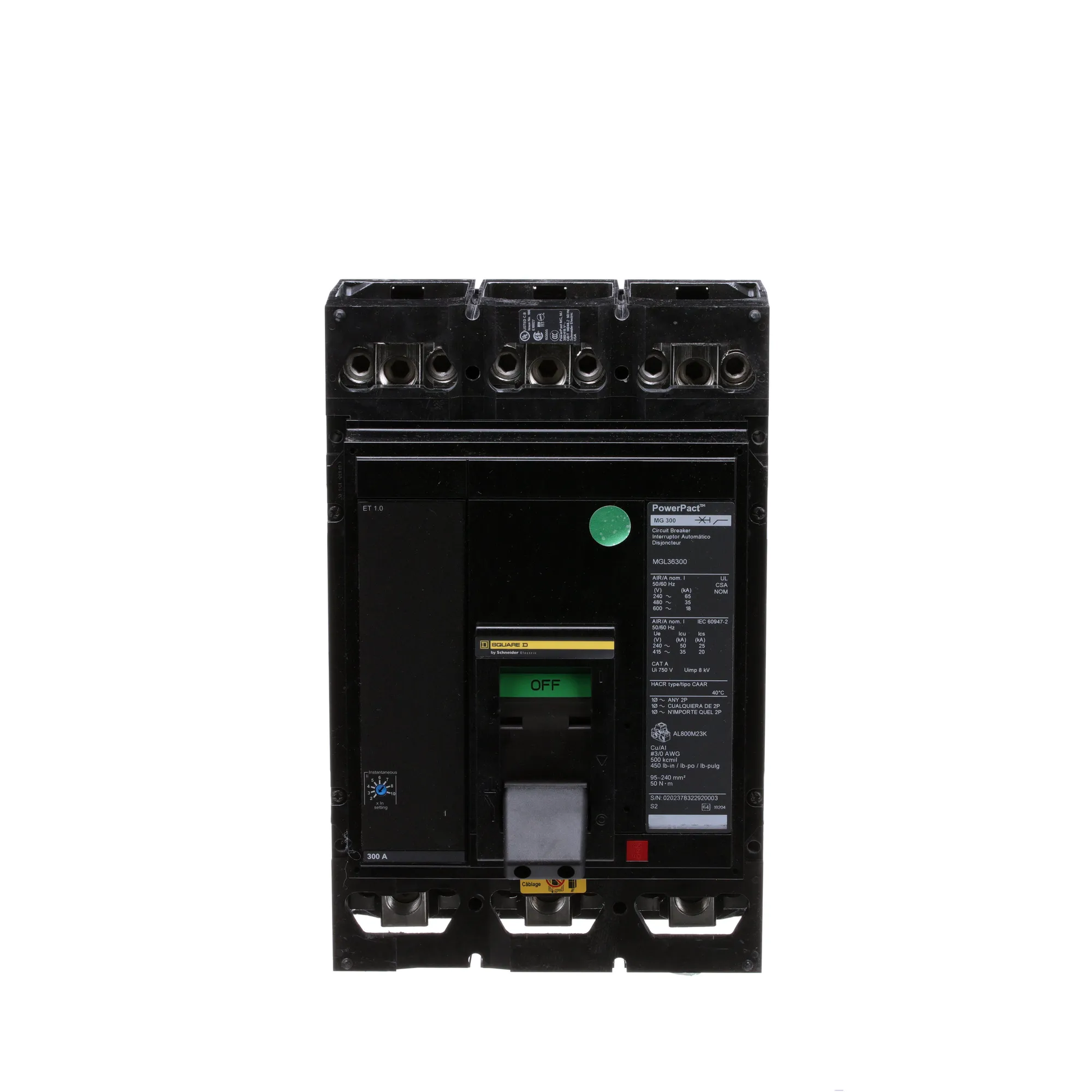

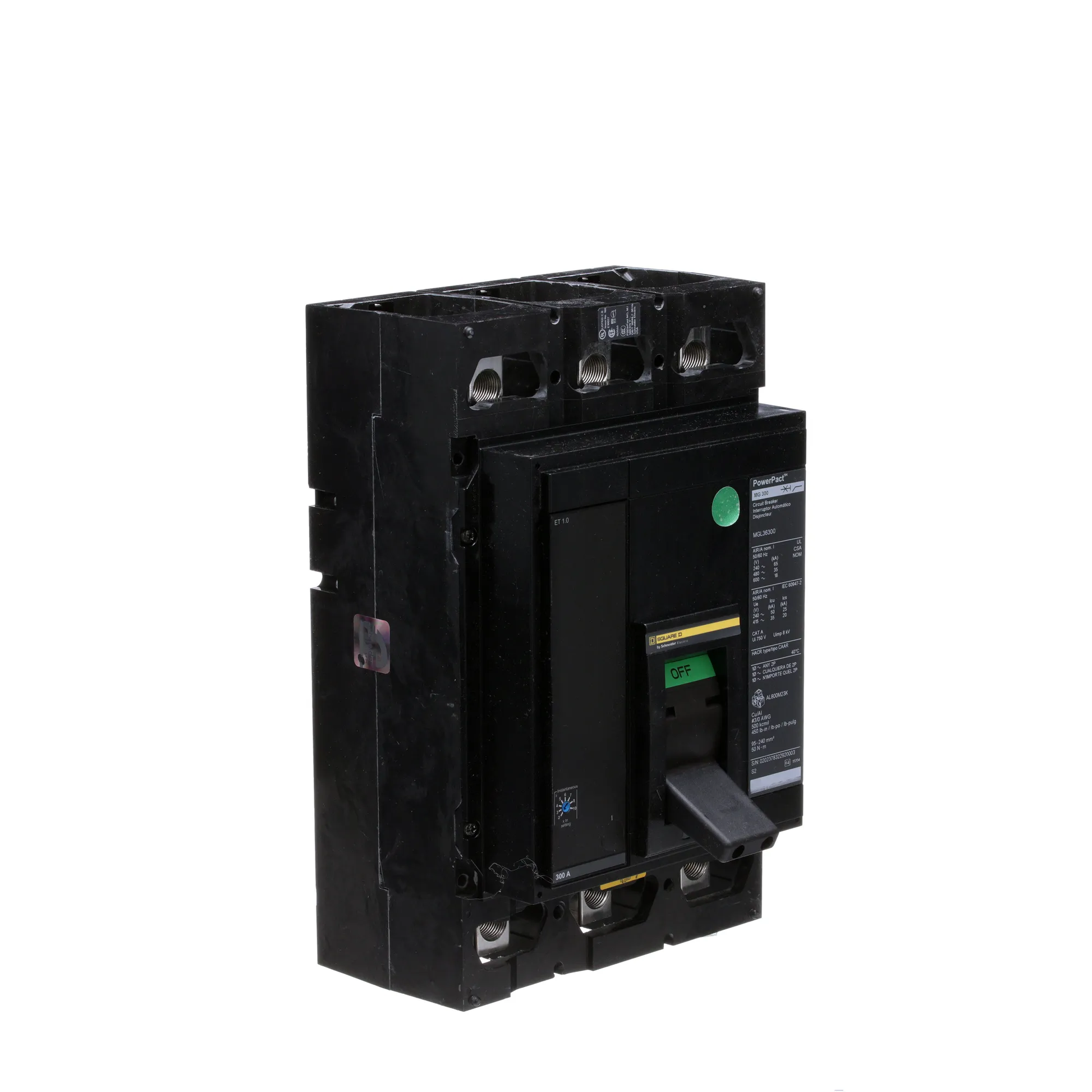

Square D MGL36300 Circuit Breaker | 600V 300A 3P 35kA@480V Lug In/Lug Out Powerpact
Square D MGL36300 Circuit Breaker | 600V 300A 3P 35kA@480V Lug In/Lug Out Powerpact
Price:
Sale
Sold out
Regular price
$5,152.92 USD
Regular price
$7,560.00 USD
Sale price
$5,152.92 USD
Unit price
per
Shipping calculated at checkout.
Stock:
6 in stock
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Limited availability. Call (855) 875-5050 to check stock. We'll confirm stock immediately after your order.
Couldn't load pickup availability
Product Description:
The Square D MGL36300 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and a 300A amperage rating with a 35kA@480V AIC rating. This breaker uses a Lug In/Lug Out connection and includes solid-state protection. It is designed for industrial and commercial electrical systems.
Key Features:
✔ Part Number: MGL36300
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGL
✔ Voltage: 600
✔ Amperage: 300
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Lug In/Lug Out
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ MCM Size: Min. Wire Size 3/0 AWG Max. Wire Size 500 MCM
✔ Breaker Type: Standard
✔ Protection: Solid State
✔ Phase Connection: CBA
✔ UPC: 785901661641
✔ GTIN: 00785901507635
✔ Country of Origin: United States
✔ Dimensions: Height 12.86 in (326.64 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 13.15
✔ Panel Type: Equipment Gear
✔ Standards: CSA, IEC, UL listed
✔ Certification: CSA, IEC, UL
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
