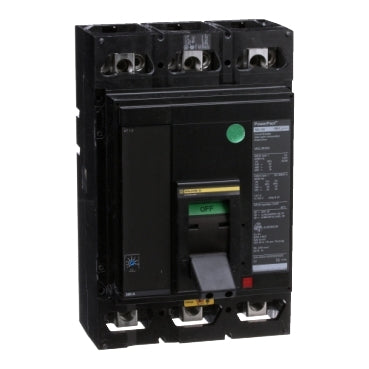

Square D MGL36800SA Circuit Breaker | Powerpact MGL 600V 800A
Square D MGL36800SA Circuit Breaker | Powerpact MGL 600V 800A
Price:
Sale
Sold out
Regular price
$11,143.98 USD
Regular price
$8,461.00 USD
Sale price
$11,143.98 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D MGL36800SA is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 800A rating and a 35kA@480V AIC rating. This breaker includes solid-state protection and a feed-thru connection. It also comes with a 110/130Vac shunt trip for added functionality.
Key Features:
✔ Part Number: MGL36800SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MGL
✔ Voltage: 600V
✔ Amperage: 800A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Feed-Thru
✔ Protection: Solid State
✔ Frame Size: M Frame
✔ UPC: 078590159003
✔ GTIN: 00785901590033
✔ Dimensions: 12.86" H x 3.09" D x 4.44" W
✔ Weight: 28.99 lbs
✔ Wire Size: 3 x AWG 3/0...3 x 500 kcmil aluminum/copper
The Square D MGL36800SA is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 800A rating and a 35kA@480V AIC rating. This breaker includes solid-state protection and a feed-thru connection. It also comes with a 110/130Vac shunt trip for added functionality.
